9.7 Quantum to PTQ Communication Protocol
The vehicle utilized for transferring data between the PTQ module and the
processor are two blocks of data:

PTQ Input Data block

PTQ Output Data block
Each of these data blocks (controlled by the PTQ) consists of a structure of data
that provides for the movement of:

Input Data image from PROFIBUS slave devices

Output Data image for writing to PROFIBUS slave devices

PTQ Module Configuration and Status (from PTQ to processor)

PROFIBUS Messaging Mailbox commands (from processor to PTQ)

PROFIBUS Messaging Mailbox responses (from PTQ to processor)
It is important to understand the process and flow of this data. The following

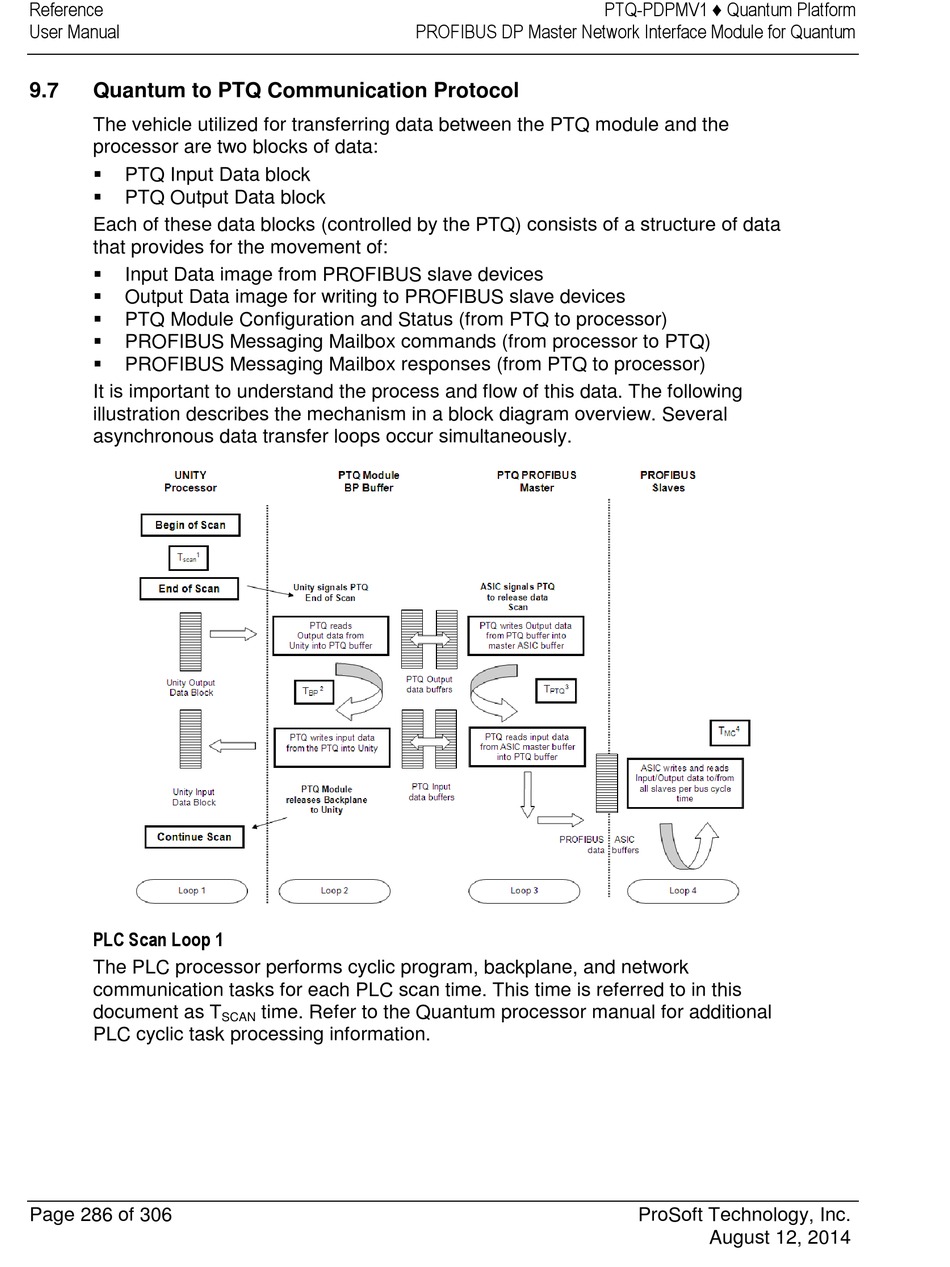

illustration describes the mechanism in a block diagram overview. Several
asynchronous data transfer loops occur simultaneously.
PLC Scan Loop 1
The PLC processor performs cyclic program, backplane, and network
communication tasks for each PLC scan time. This time is referred to in this
document as T
PLC cyclic task processing information.
Page 286 of 306
time. Refer to the Quantum processor manual for additional
SCAN
