PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
The actual variable name will depend on the module name configured in
PCB. The default module name is PTQPDPMV1. However, the data types
used by these variables will always have a fixed name as shown in the table
above.
Default file name (PTQ-PDPMV1):

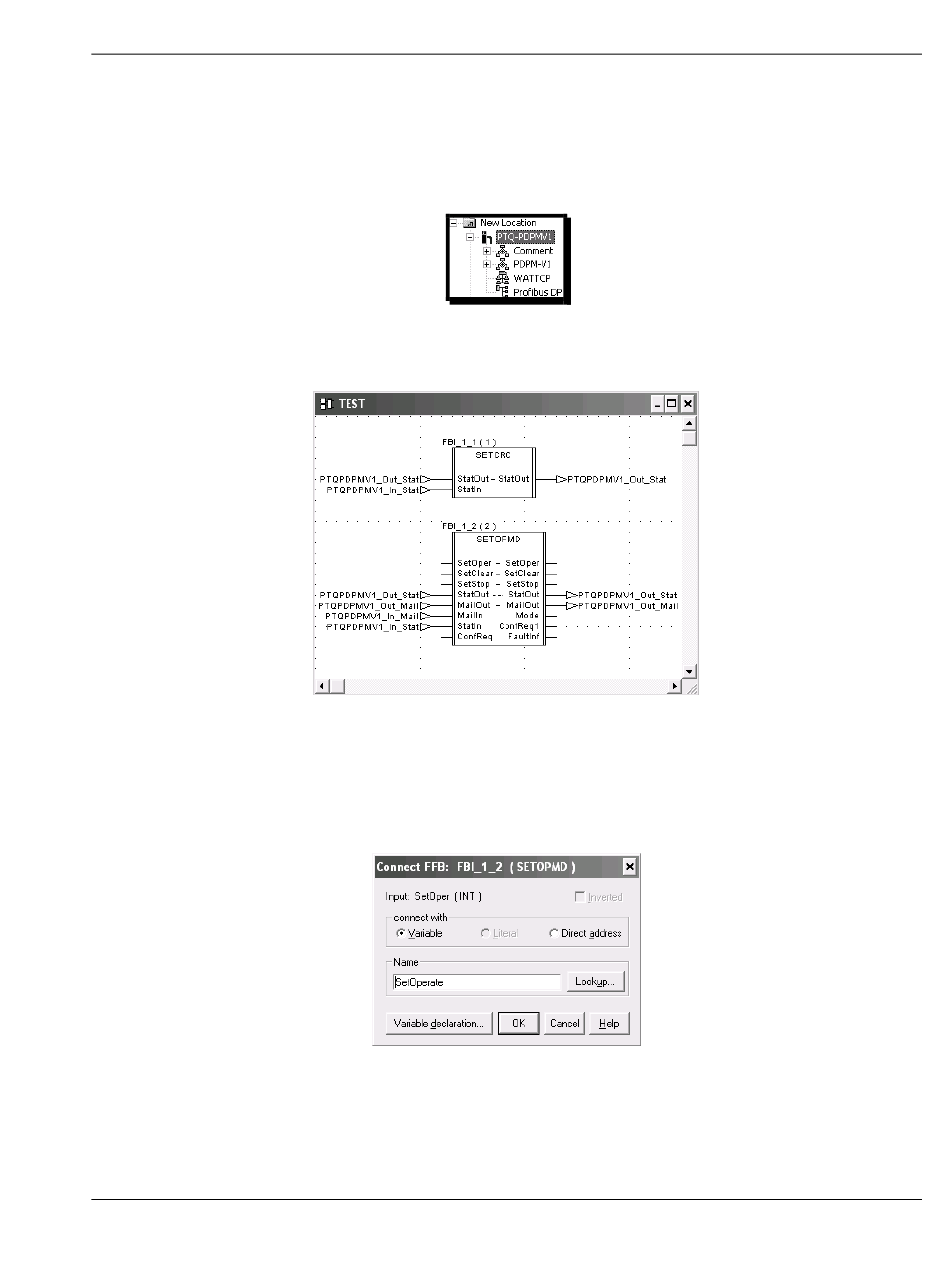

9 It is suggested to initially associate these variables to the correct pins before
creating any variables for the other pins (as follows):
Now you can create other variables and associate these to the rest of the
pins. For example, to associate a variable to the SetOper input/output pin
follow the steps below.
a) Double-click the S
b) Choose a variable name (this example uses SetOperate) and click OK.
ProSoft Technology, Inc.
August 12, 2014
O pin.
ET PER
Configuring the Processor with Concept 2.6
Page 123 of 306
User Manual
