Mailbox Messaging
User Manual

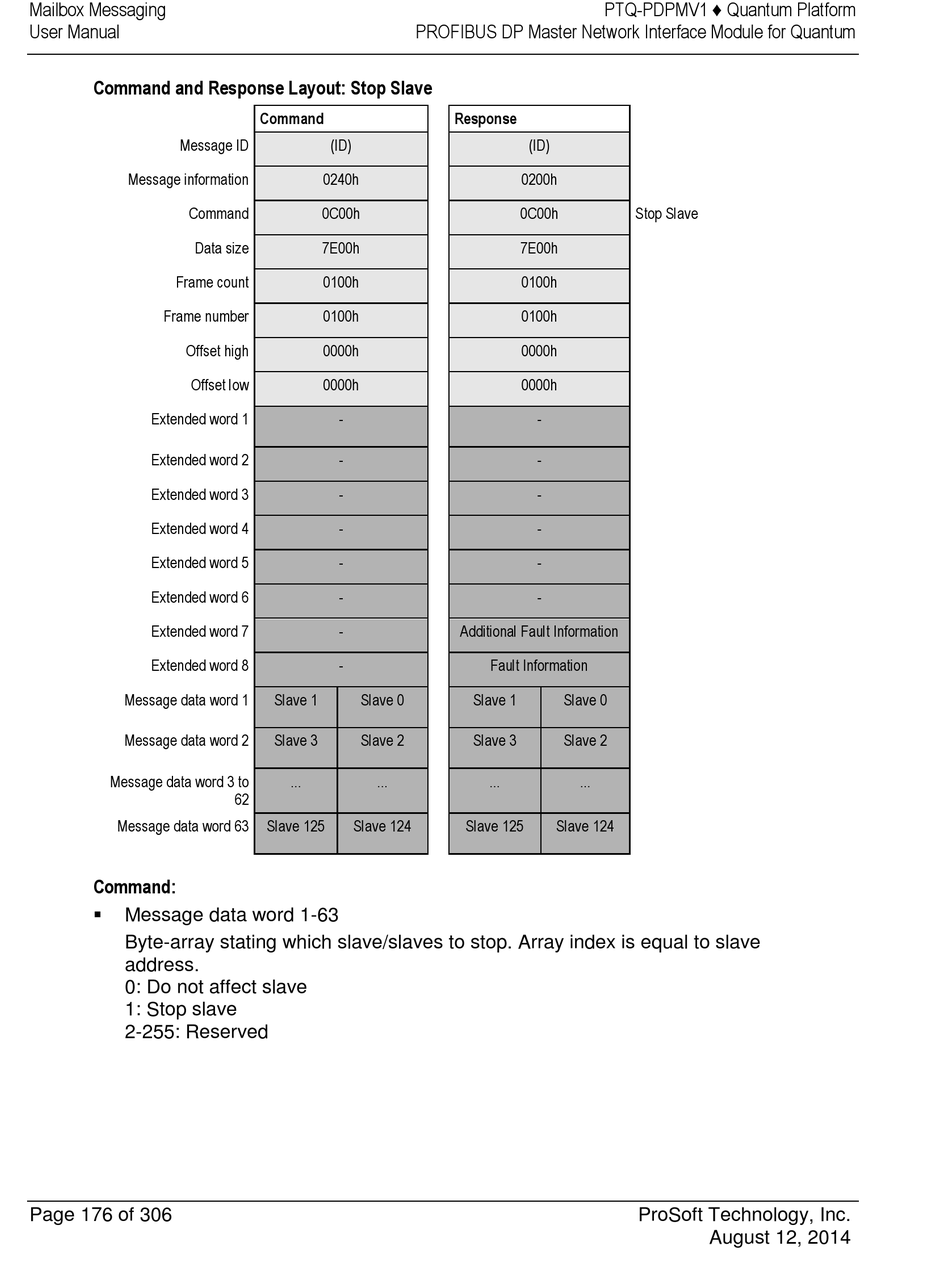

Command and Response Layout: Stop Slave
Message ID
Message information
Command
Data size
Frame count
Frame number
Offset high
Offset low
Extended word 1
Extended word 2
Extended word 3
Extended word 4
Extended word 5
Extended word 6
Extended word 7
Extended word 8
Message data word 1
Message data word 2
Message data word 3 to
Message data word 63
Command:

Message data word 1-63
Byte-array stating which slave/slaves to stop. Array index is equal to slave
address.
0: Do not affect slave
1: Stop slave
2-255: Reserved
Page 176 of 306
Command
(ID)
0240h
0C00h
7E00h
0100h
0100h
0000h
0000h
-
-
-
-
-
-
-
-
Slave 1 Slave 0
Slave 3 Slave 2
... ...
62
Slave 125 Slave 124
PROFIBUS DP Master Network Interface Module for Quantum
Response
(ID)
0200h
0C00h
7E00h
0100h
0100h
0000h
0000h
-
-
-
-
-
-
Additional Fault Information
Fault Information
Slave 1 Slave 0
Slave 3 Slave 2
... ...
Slave 125 Slave 124
PTQ-PDPMV1 ♦ Quantum Platform
Stop Slave
ProSoft Technology, Inc.
August 12, 2014
