PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum

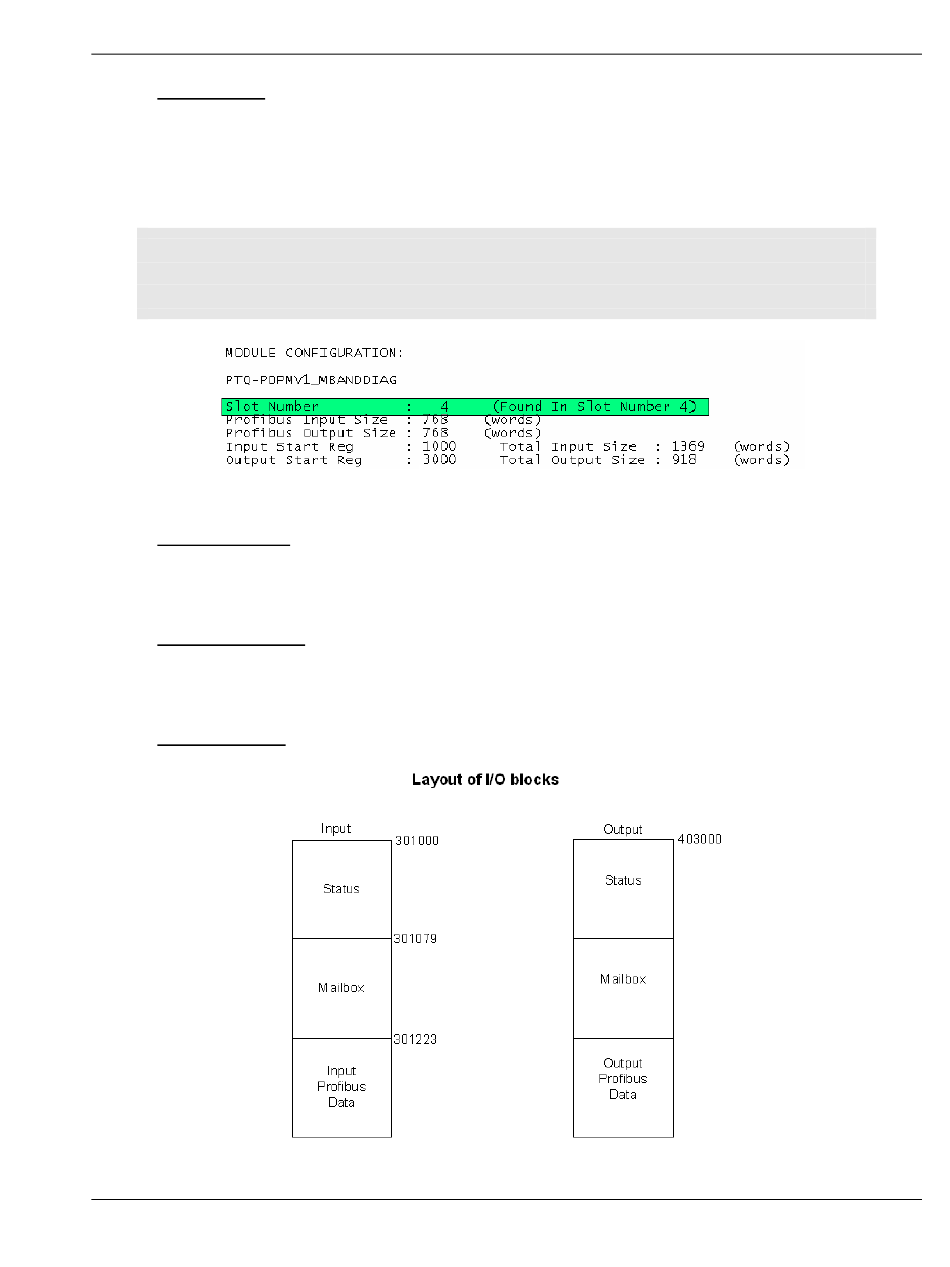

Slot Number
The Slot Number is the physical location of the module in the rack. The example
here assumes a basic configuration with a power supply occupying the first slot,
the processor occupying the next two slots, and the PTQ-PDPMV1 module
occupying the fourth slot. In this case the module would be in slot 4.
Note: If the module is not placed in the slot number specified, the module will not operate, and the
CFG ERR light will illuminate. You must specify the actual slot number for the module in the
module configuration file.
Input Data Size
Number of PROFIBUS input point words. Leave this setting at its default value of
768 words.
Output Data Size
Number of PROFIBUS output point words. Leave this setting at its default value
of 768 words.
Start Registers
