Configuring the Processor with Concept 2.6
User Manual
You will also notice that the function block automatically clears the trigger register
after it receives the acknowledgment from the module.

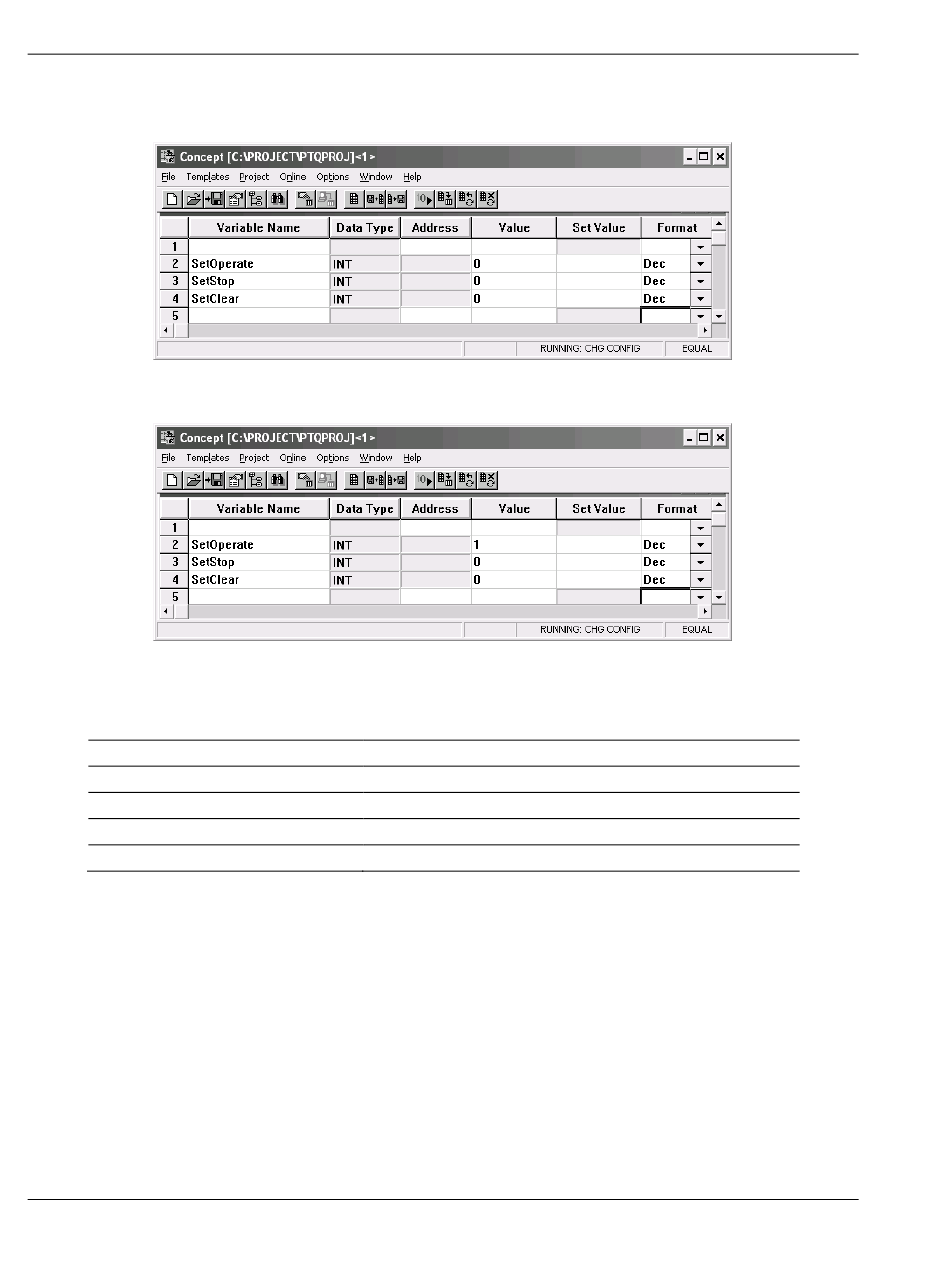

Move a value of 1 to the SetOperate trigger variable.
At this point, you should notice the following LED display, indicating that the
module's mode was changed to OPERATE:
LED
MSTR STAT
COM STAT
DBASE STAT
TK HOLD
1
The COM STAT LED will be either GREEN if the Master is communicating with
all slaves, blinking if it is communicating with some of the slaves, or OFF if it is
not communicating with any slaves.
Page 134 of 306
PROFIBUS DP Master Network Interface Module for Quantum
Status
GREEN
1
GREEN or OFF
GREEN
GREEN
