Information for Concept Version 2.6 Users

This guide uses Concept PLC Programming Software version 2.6 to configure
the Quantum PLC. The ProTalk installation CD includes MDC module
configuration files that help document the PTQ installation. Although not required,
these files should be installed before you proceed to the next section.

4.3.1 Installing MDC Configuration Files

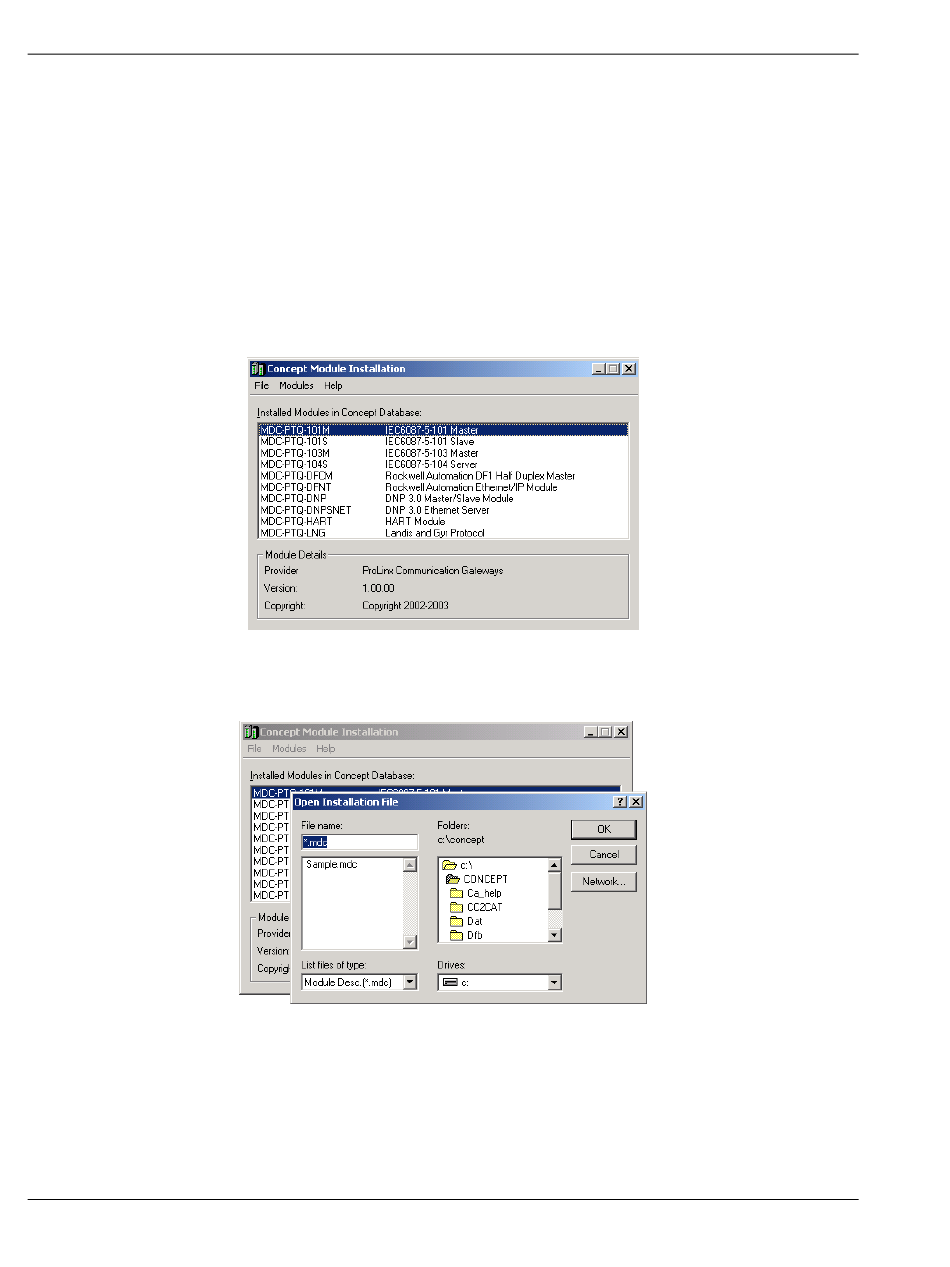

1 From a computer with Concept 2.6 installed, choose S
C
ONCEPT
This action opens the Concept Module Installation dialog box.
2 Choose F
ILE
This action opens the Open Installation File dialog box.
3 If you are using a Quantum processor, you will need the MDC files. In the
Open Installation File dialog box, navigate to the MDC Files directory on the
ProTalk CD.
4 Choose the MDC file and help file for your version of Concept:
o Concept 2.6 users: select PTQ_2_60.mdc and PTQMDC.hlp
Concept 2.5 users: select PTQ_2_50.mdc and PTQMDC.hlp.
o
