PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum

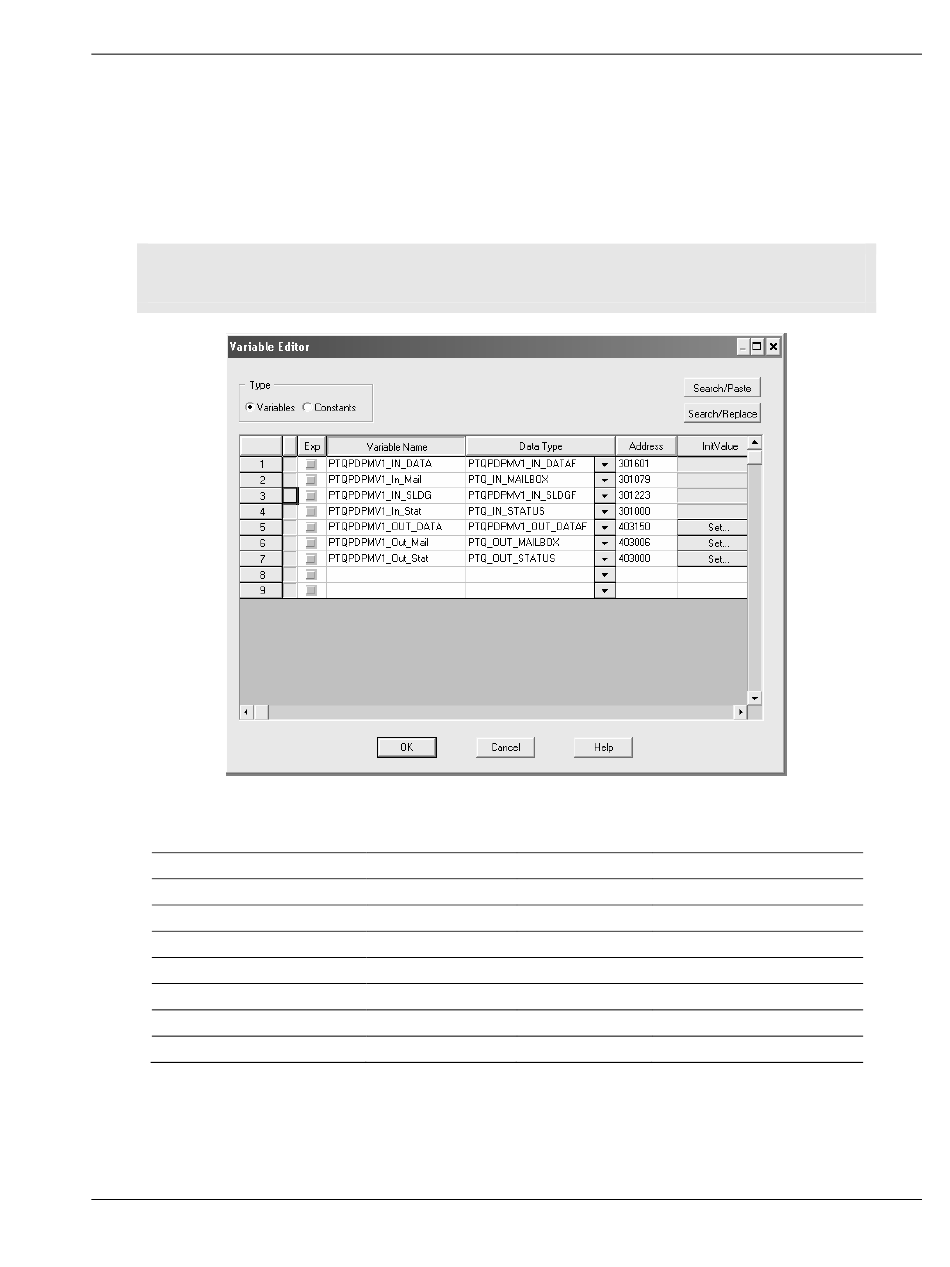

To view the variables that were created during this procedure, open the P
menu, and then choose V
shows a variable for Slave Diagnostics (PTQPDPMV1_SLDG), which is an
optional selection. Refer to PTQ Input and Output Data Blocks (page 251) for
detailed information on the structure of these blocks and how they are affected
by various configuration options.
Note: The memory addresses will match the settings configured through ProSoft Configuration
Builder.
The following variables are available for your application.
Variable
PTQPDPMV1_In_Stat
PTQPDPMV1_In_Mail
PTQPDPMV1_IN_DATA
PTQPDPMV1_Out_Stat
PTQPDPMV1_Out_Mail
PTQPDPMV1_OUT_DATA
PDQPDPMV1_IN_SLDG
Status: The status data can be used to monitor the status of the module and the
PROFIBUS network (input). The function blocks also use the status data for
handshaking purposes during the mailbox handling (input and output).
ProSoft Technology, Inc.
August 12, 2014
D
ARIABLE ECLARATIONS
Transferred From Transferred To
PTQ-PDPMV1 Quantum
PTQ-PDPMV1 Quantum
PTQ-PDPMV1 Quantum
Quantum PTQ-PDPMV1
Quantum PTQ-PDPMV1
Quantum PTQ-PDPMV1
PTQ-PDPMV1 Quantum
Configuring the Processor with Concept 2.6
. The following illustration
Description
Status Data
Mailbox Buffer
Input PROFIBUS Data
Status Data
Mailbox Buffer
Output PROFIBUS Data
Slave Diagnostic Data
User Manual
ROJECT
