Slave Diagnostics
Get slave diagnostic data (Y/N with N=default).
For this example, leave the setting at its default.
If you change the default value of this setting and the previous one (Mailbox
Messaging) from their default values, the layout of the I/O blocks changes.

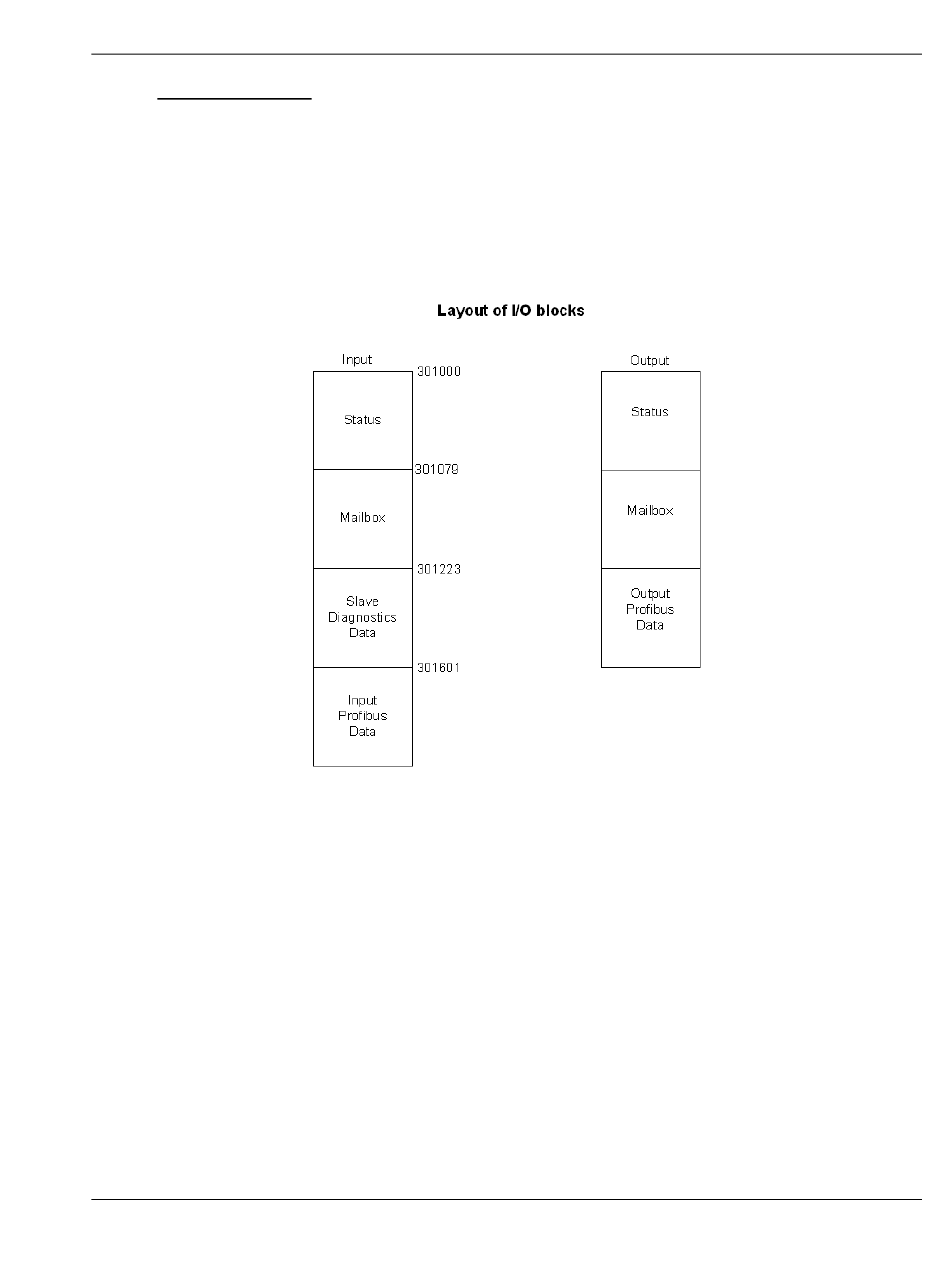

The following diagram shows the layout of the I/O blocks when Mailbox
Messaging is set to Y
to Y .
