PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
8.2

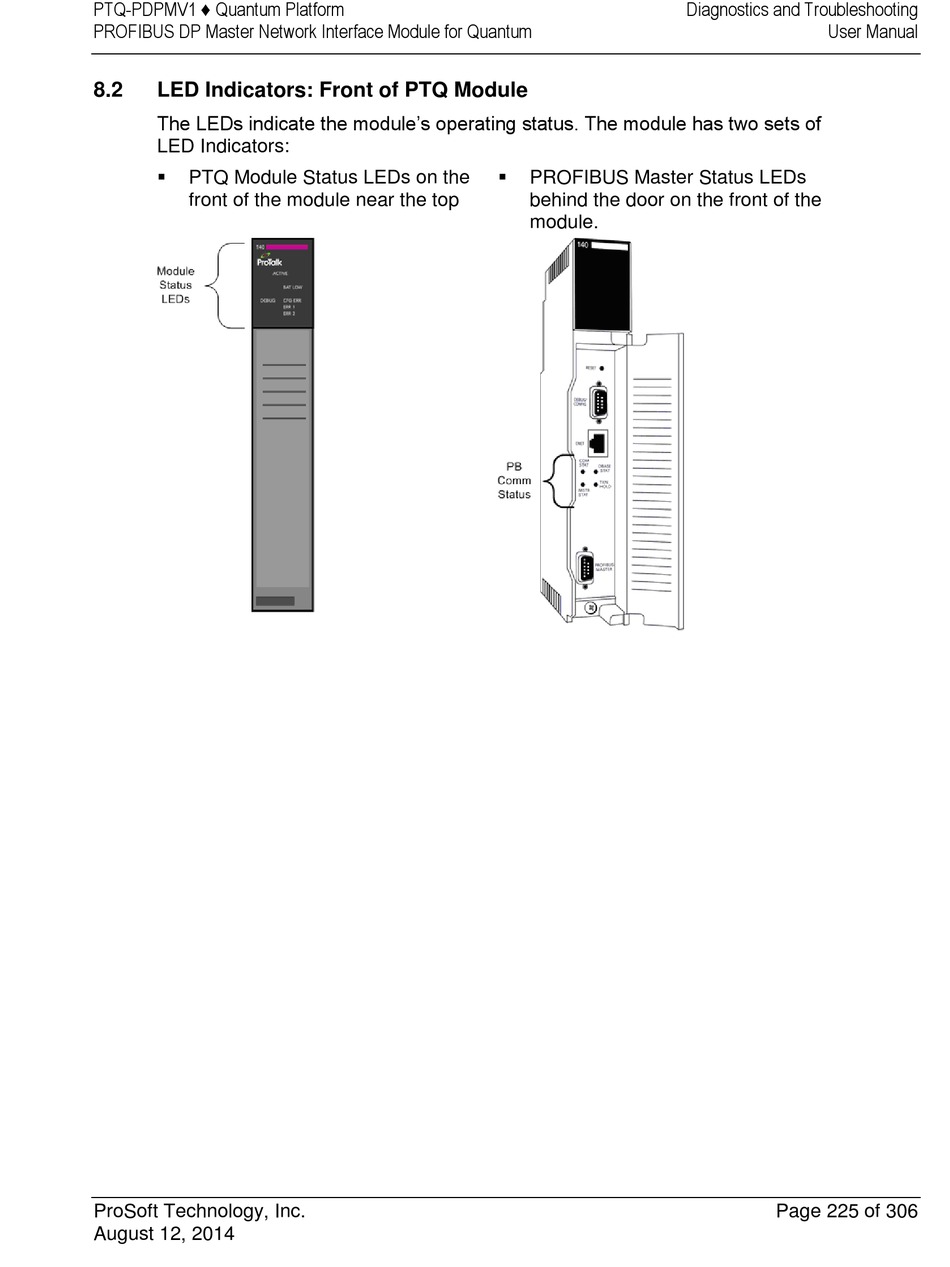

LED Indicators: Front of PTQ Module

The LEDs indicate the module's operating status. The module has two sets of
LED Indicators:

PTQ Module Status LEDs on the
front of the module near the top
ProSoft Technology, Inc.
August 12, 2014

PROFIBUS Master Status LEDs
behind the door on the front of the
module.
Diagnostics and Troubleshooting
User Manual
Page 225 of 306
