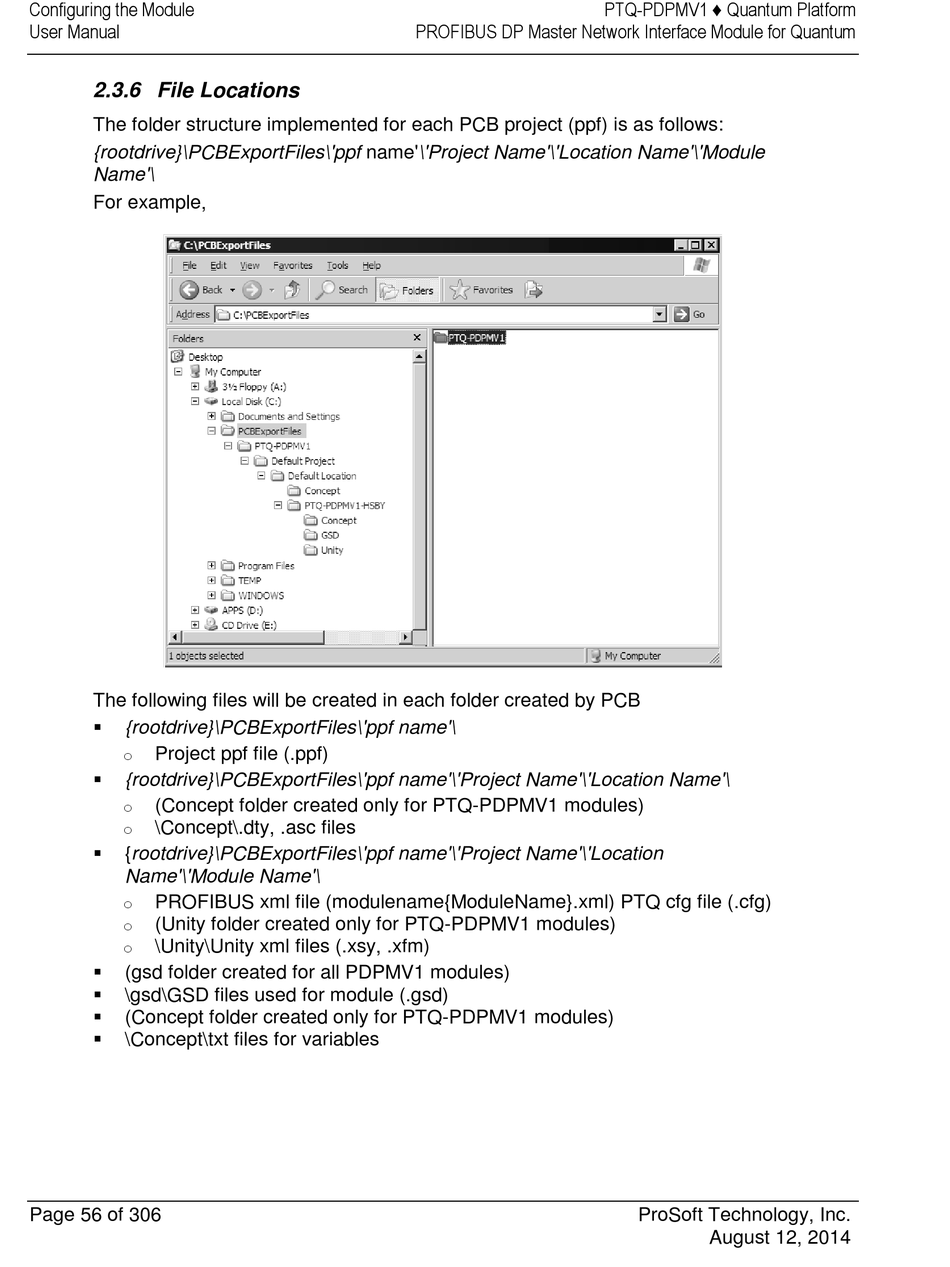

2.3.6 File Locations

The folder structure implemented for each PCB project (ppf) is as follows:
{rootdrive}\PCBExportFiles\'ppf name'\'Project Name'\'Location Name'\'Module
Name'\
For example,
The following files will be created in each folder created by PCB

{rootdrive}\PCBExportFiles\'ppf name'\
o Project ppf file (.ppf)

{rootdrive}\PCBExportFiles\'ppf name'\'Project Name'\'Location Name'\
(Concept folder created only for PTQ-PDPMV1 modules)
o
o \Concept\.dty, .asc files

{rootdrive}\PCBExportFiles\'ppf name'\'Project Name'\'Location
Name'\'Module Name'\
o PROFIBUS xml file (modulename{ModuleName}.xml) PTQ cfg file (.cfg)
(Unity folder created only for PTQ-PDPMV1 modules)
o
\Unity\Unity xml files (.xsy, .xfm)
o

(gsd folder created for all PDPMV1 modules)

\gsd\GSD files used for module (.gsd)

(Concept folder created only for PTQ-PDPMV1 modules)

\Concept\txt files for variables
