2.1.3 Updating the Ethernet Settings

Use this procedure to configure the Ethernet settings for your module. You must
assign an IP address, subnet mask and gateway address. After you complete
this step, you can connect to the module with an Ethernet cable.
1 Determine the network settings for your module, with the help of your network
administrator if necessary. You will need the following information:
IP address (fixed IP required) _____ . _____ . _____ . _____
o
o Subnet mask
Gateway address
o
HSBY Note: Hot Standby Primary IP is entered. The Standby IP address will always be the
Primary IP address plus 1.
2 Click [+] to expand the tree for the PTQ-PDPMV1 module.

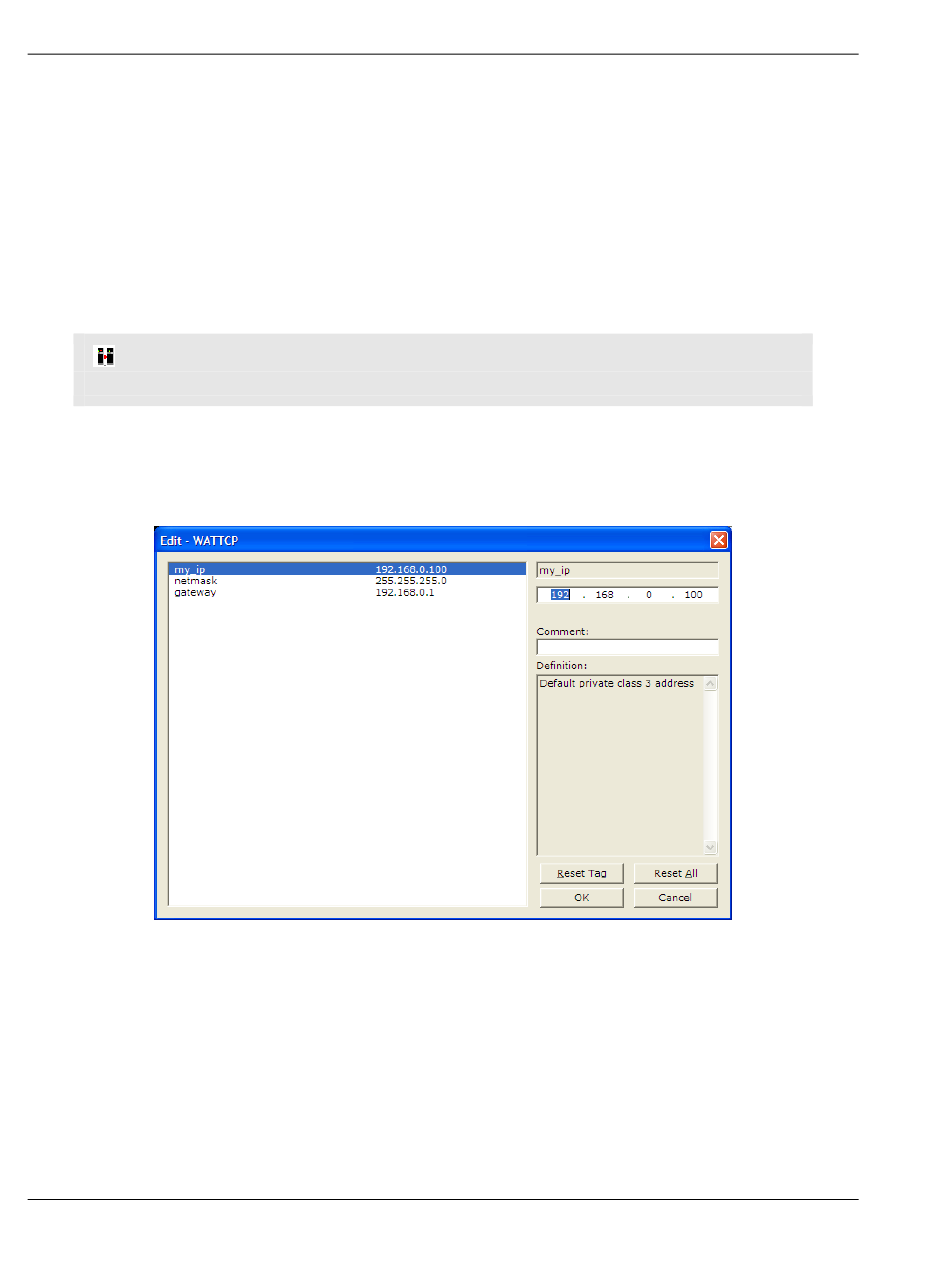

3 Double-click the E
dialog box.
4 Edit the values for my_ip, netmask (subnet mask) and gateway (default
gateway).
5 When you are finished editing, click OK to save your changes and return to
the ProSoft Configuration Builder window.
