PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum

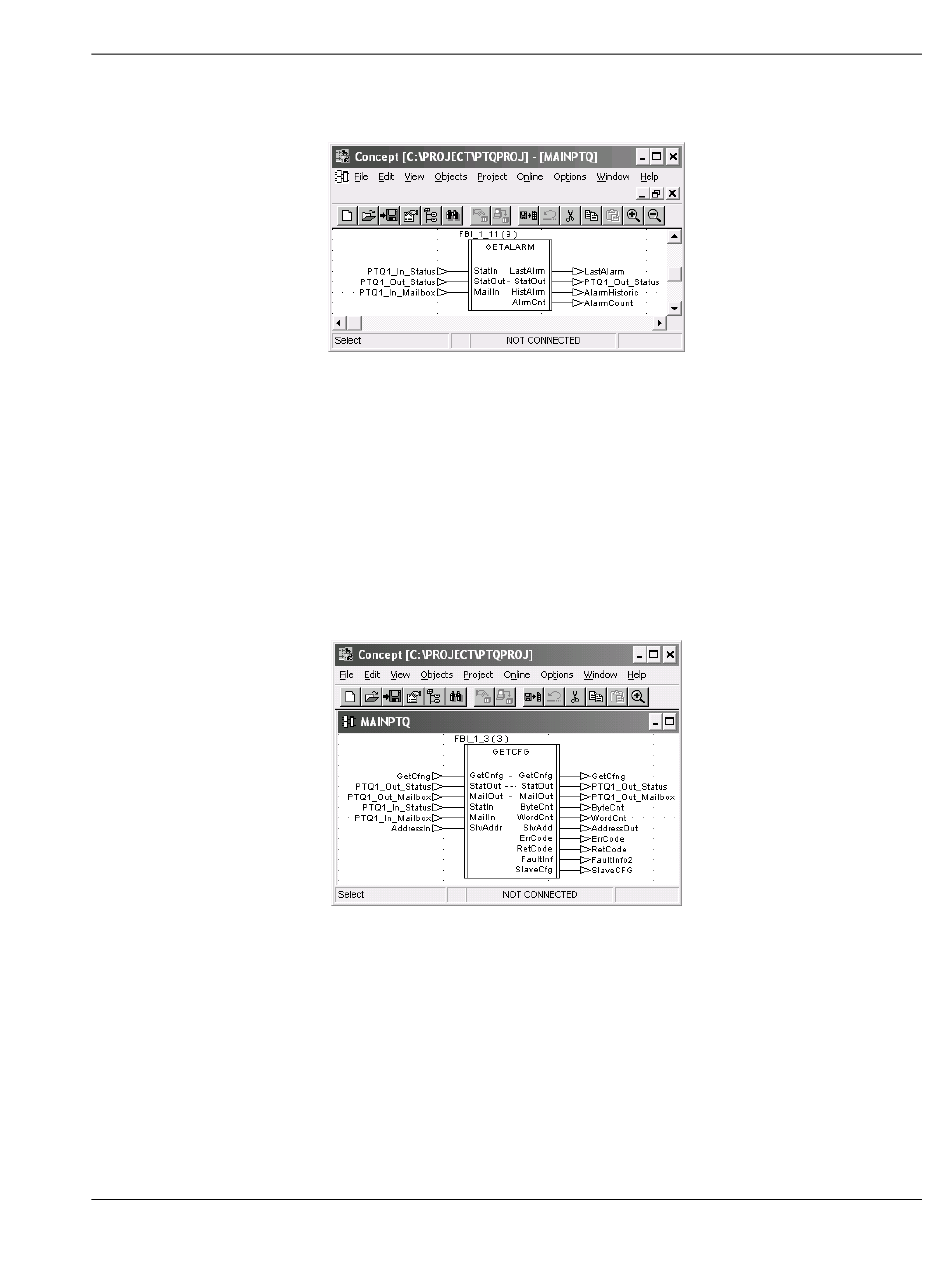

The following illustration shows a sample instance of the GetAlarm mailbox
function block:

4.12.4 GetConfiguration Mailbox

Function Block: GETCFG
Trigger Register: GetCnfg
Description: The GETCFG function block can be used to read the configuration
of any PROFIBUS slave connected to the PTQ-PDPMV1 module. The SlvAddr
input pin must be configured with the PROFIBUS slave address of the
PROFIBUS device. The configuration data is stored at the SlaveCfg output pin.
The byte count of the slave configuration is stored at ByteCnt output pin. The
ErrCode, RetCode, and FaultInf output pins can be used for status verification.
