Configuring the Processor with Unity Pro
User Manual

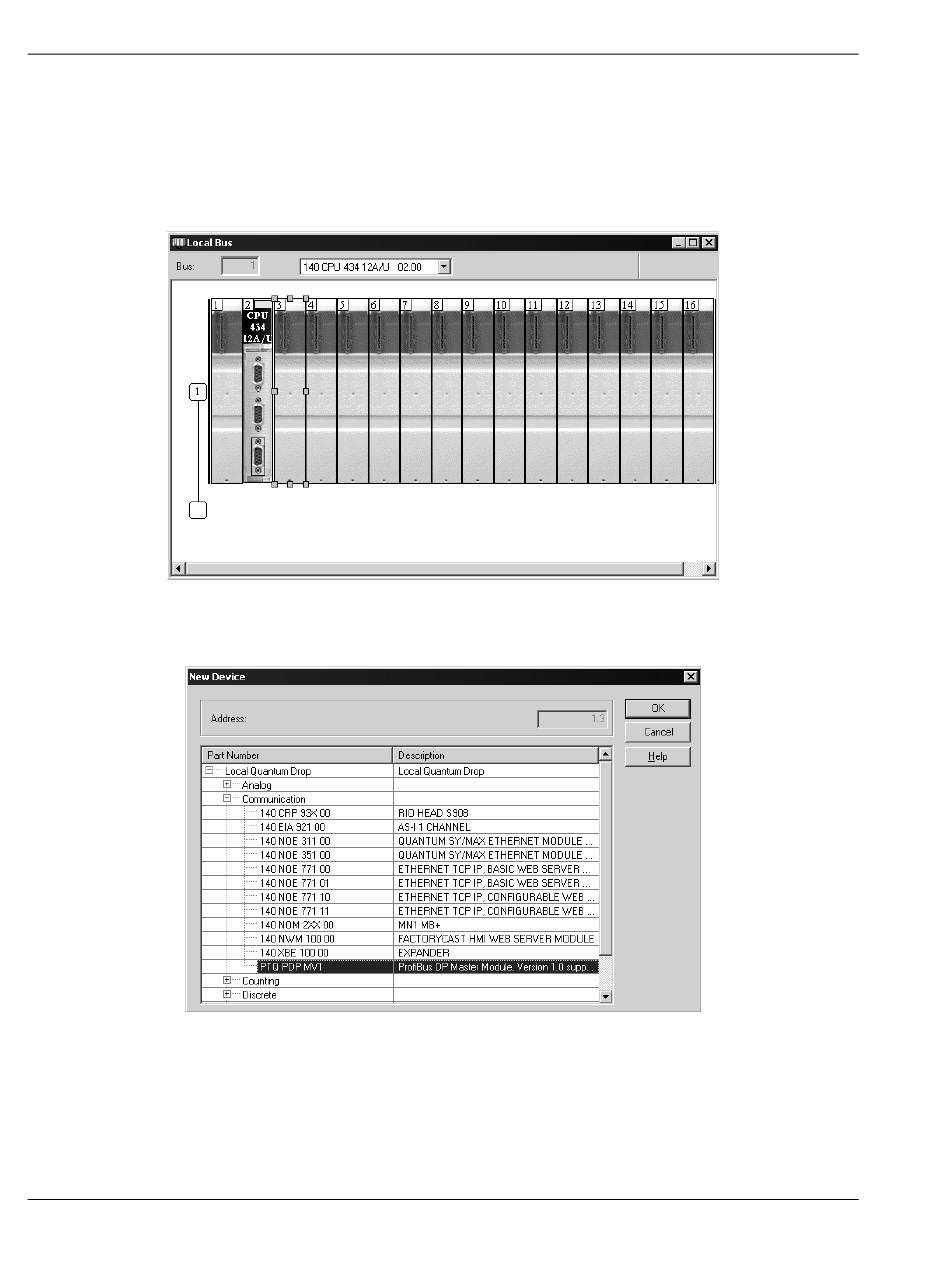

3 In the Project Browser tree view, double-click L
Bus window. Notice that the image in the window shows the processor in the
second position in the rack. (The first position is for the power supply, which
you will add later. In the following steps, you will add an image of the PTQ
module to the rack, in the same position where you physically installed the
module.)
4 To add devices to the rack, double-click the location in the rack where the
device is installed. This action opens the New Device dialog box.
Page 70 of 306
PROFIBUS DP Master Network Interface Module for Quantum
B
OCAL US
PTQ-PDPMV1 ♦ Quantum Platform
to open the Local
