Configuring the Processor with Unity Pro
User Manual

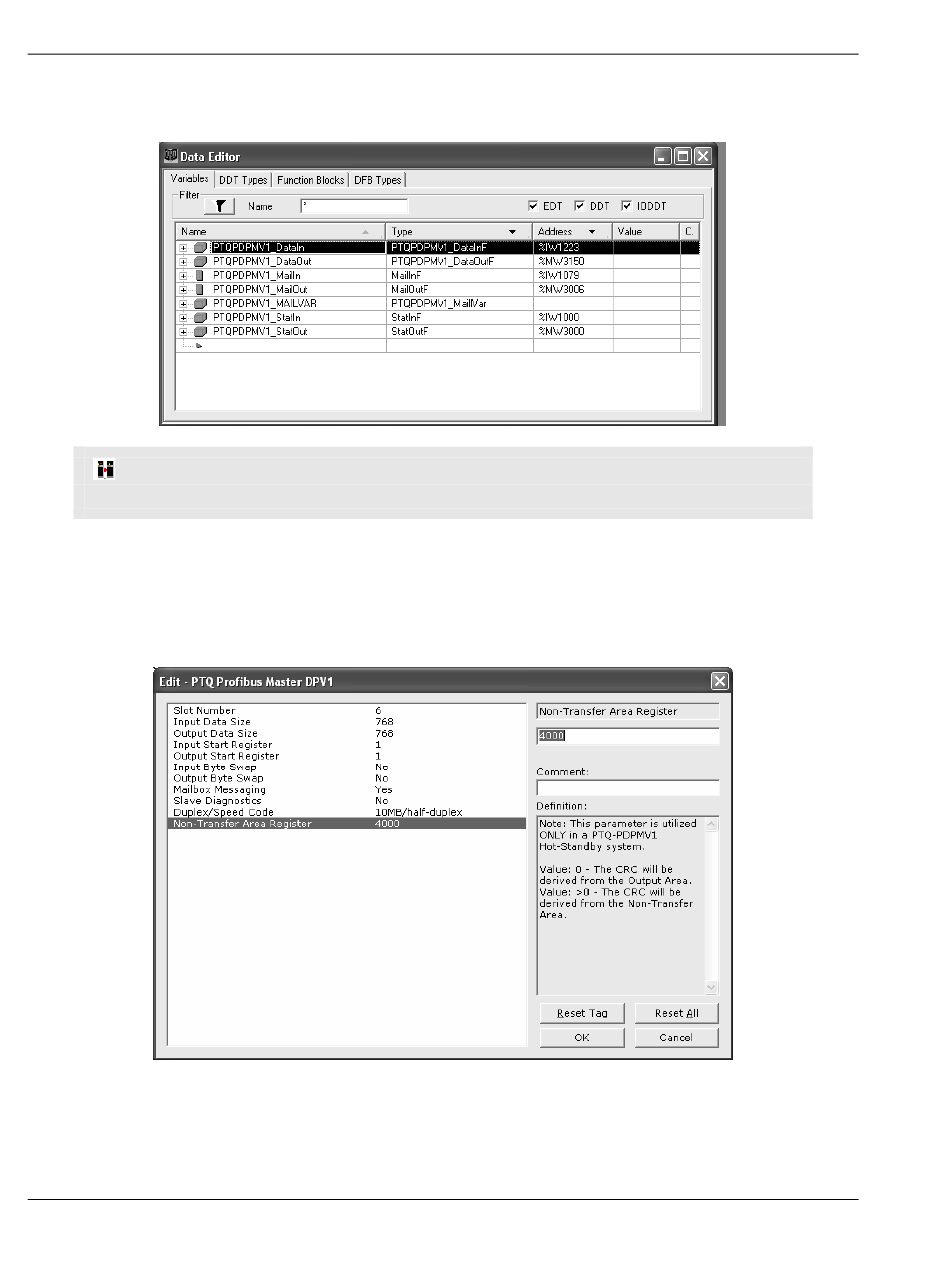

At this point, the input and output variables have been imported to the
application.
HSBY Note: If the Non-Transfer parameter value is used and it is greater than zero, then the
XSY file will contain the correct CRC for the module.
The value you entered in ProSoft Configuration Builder for the Non-Transfer
parameter should also be entered in the non-transfer area of the processor.
For example, if you entered Non-Transfer Area Register = 4000 in ProSoft
Configuration Builder:
