PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum

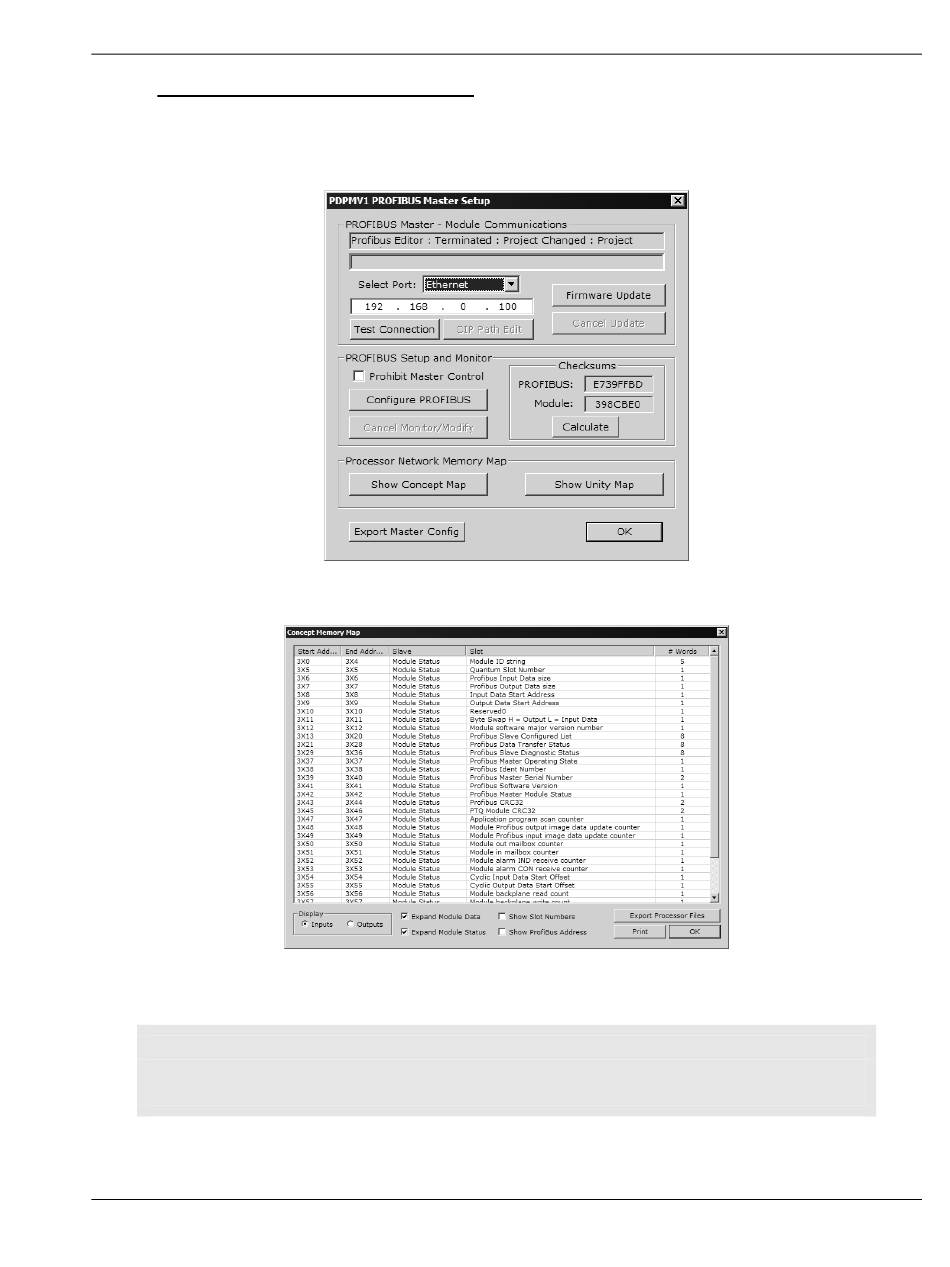

To export the processor memory map
1 In the Master Setup dialog box, click S
configured with Concept software) or click S
configured with ProSoft Configuration Builder software).
2 This action opens the Memory Map dialog box.
3 On the Memory Map dialog box, click E
Note: For Unity Map, PCB will export the XSY file and XFM files in the same directory if mailbox
parameter is chosen. The filenames will match the module name you chose in PCB.
For Concept Map, PCB will export .dty file, .txt file and .asc files if mailbox parameter is chosen.
