2.1.1 Setting Up the Project

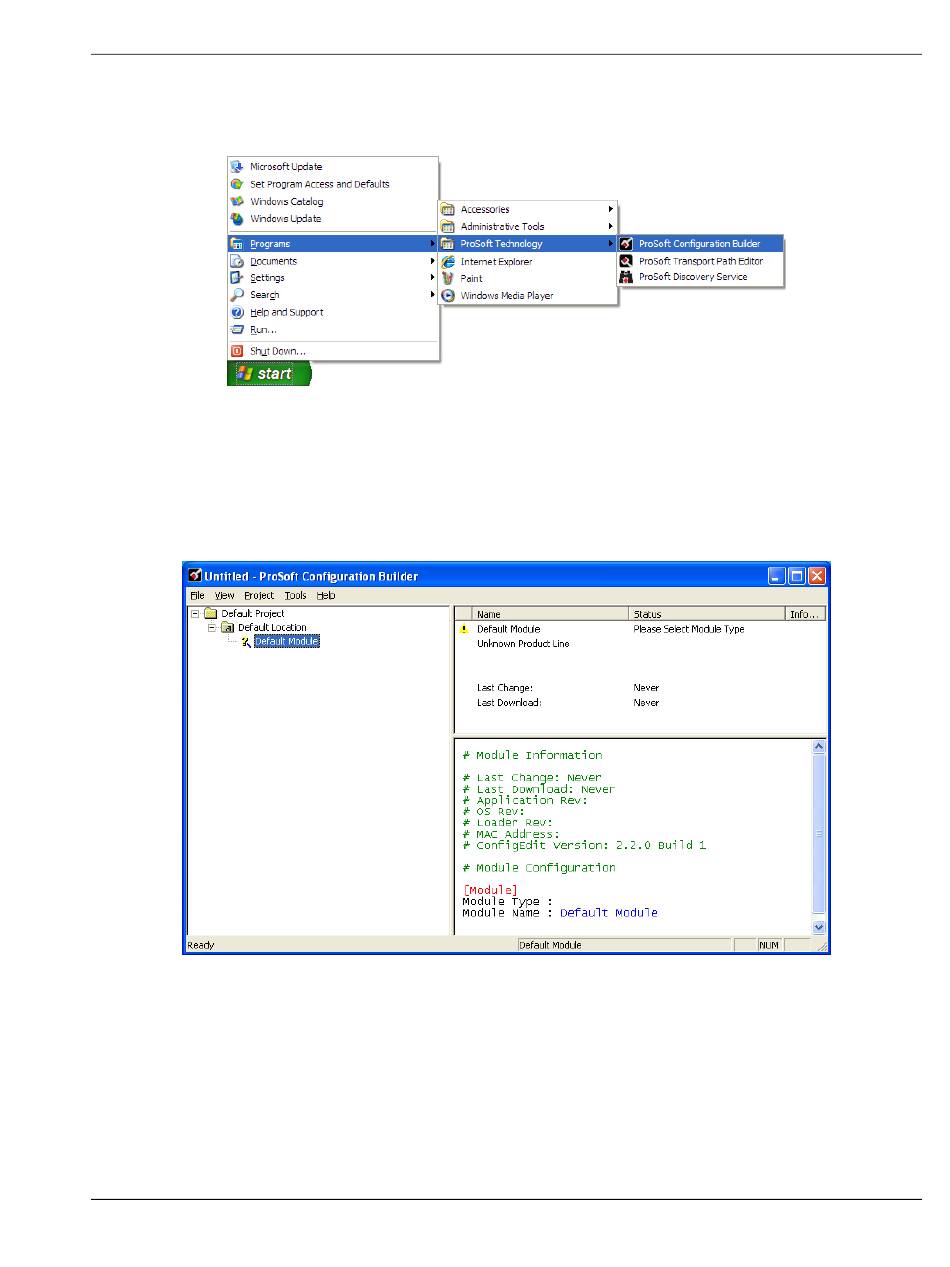

To begin, start P
If you have used other Windows configuration tools before, you will find the
screen layout familiar. PCB's window consists of a tree view on the left, and an
information pane and a configuration pane on the right side of the window. When
you first start PCB, the tree view consists of folders for Default Project and
Default Location, with a Default Module in the Default Location folder. The
following illustration shows the PCB window with a new project.
Your first task is to add the MVI56E-MNETR module to the project.
Use the mouse to select D
1
right mouse button to open a shortcut menu.
ProSoft Technology, Inc.
June 14, 2011
S C
RO OFT ONFIGURATION
EFAULT
Configuring the MVI56E-MNETR Module
(PCB).
B
UILDER
in the tree view, and then click the
M
ODULE
User Manual
Page 51 of 175
