2.1.1 Setting Up the Project

To begin, start ProSoft Configuration Builder. If you have used other Windows configuration
tools before, you will find the screen layout familiar. ProSoft Configuration Builder's window
consists of a tree view on the left, an information pane and a configuration pane on the right
side of the window. When you first start ProSoft Configuration Builder, the tree view consists
of folders for Default Project and Default Location, with a Default Module in the Default

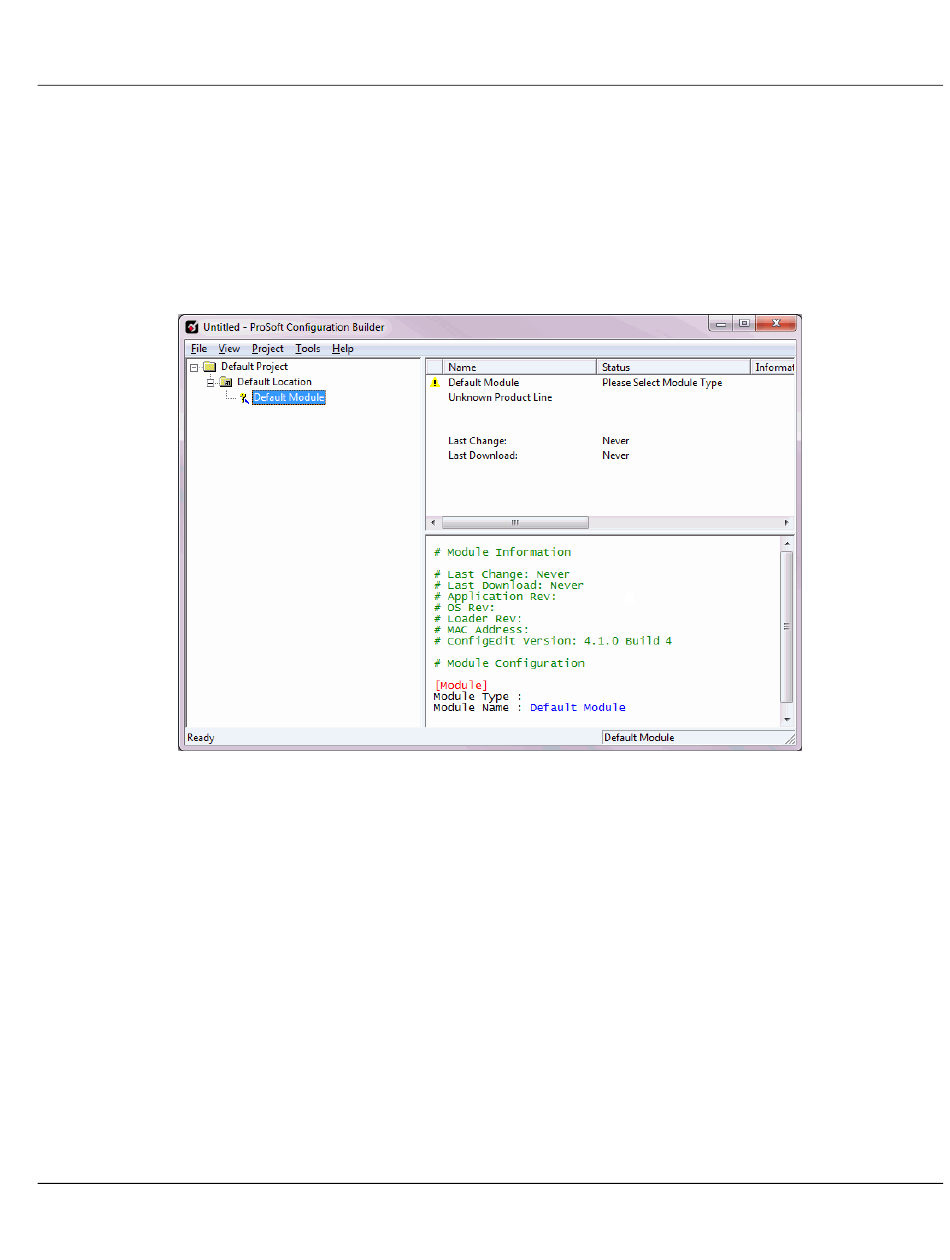

Location folder. The following illustration shows the ProSoft Configuration Builder window
with a new project.
1 Use the mouse to select D
mouse button to open a shortcut menu.
Page 20 of 86
MVI69-GEC ♦ CompactLogix or MicroLogix Platform
M in the tree view, and then click the right
EFAULT ODULE
