Diagnostics and Troubleshooting
User Manual
If PCB is still unable to connect to the module, click the B
3

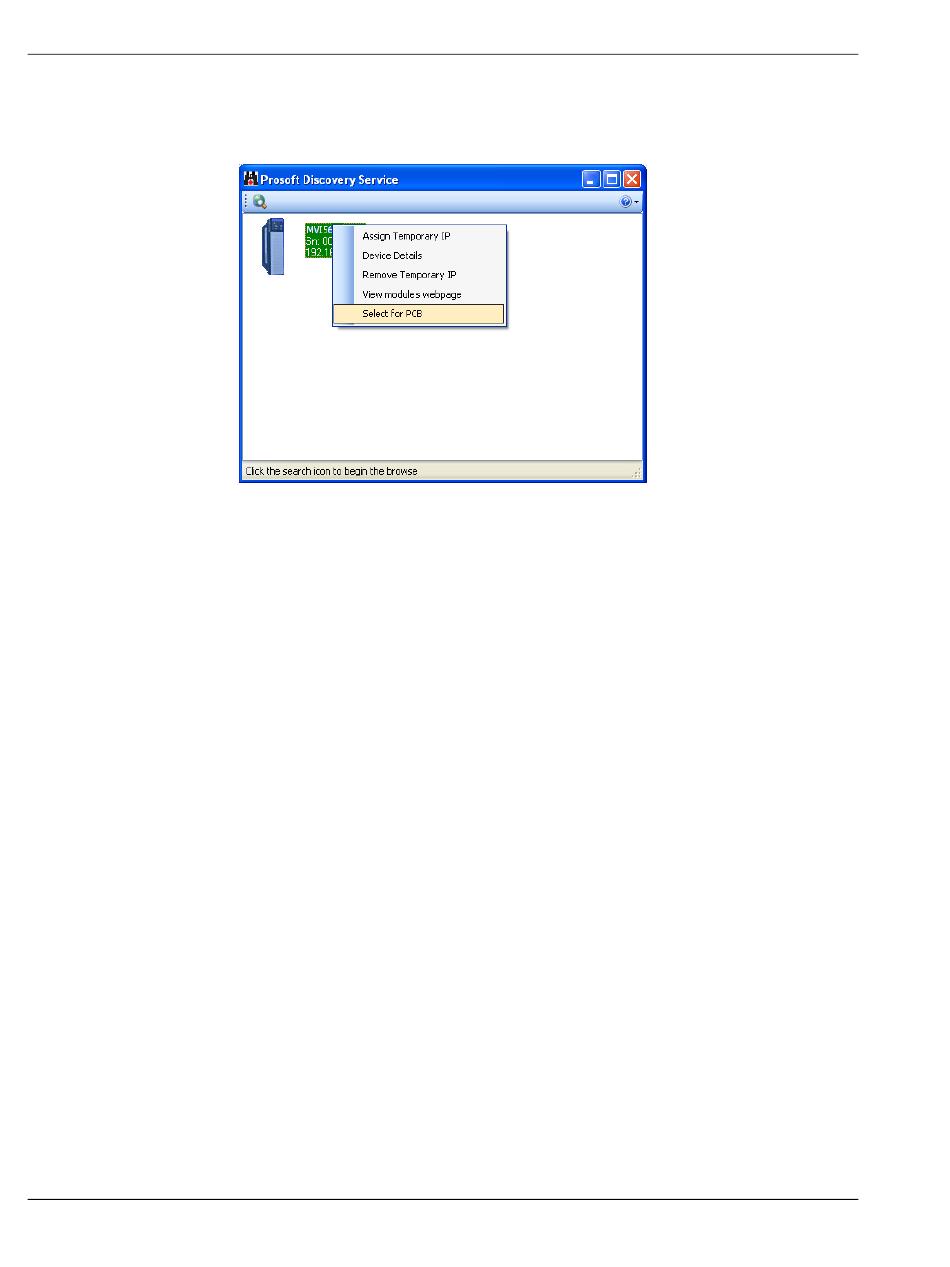

button to open the ProSoft Discovery Service. Select the module, then right
click and choose S
Close ProSoft Discovery Service, and click the C
4 If all of these troubleshooting steps fail, verify that the Ethernet cable is
connected properly between your computer and the module, either through a
hub or switch (using the grey cable) or directly between your computer and
the module (using the red cable).
If you are still not able to establish a connection, contact ProSoft Technology for
assistance.
Page 96 of 175
Modbus TCP/IP Interface Module with Reduced Data Block
PCB.
ELECT FOR
MVI56E-MNETR ♦ ControlLogix Platform
D
ROWSE EVICE
button again.
ONNECT
