1.11.6 Downloading the Sample Program to the Processor

Note: The key switch on the front of the ControlLogix processor must be in the REM or PROG
position.
If you are not already online with the processor, open the Communications
1
menu, and then choose D
communication with the processor. You do not have to download through the
processor's serial port, as shown here. You may download through any
available network connection.

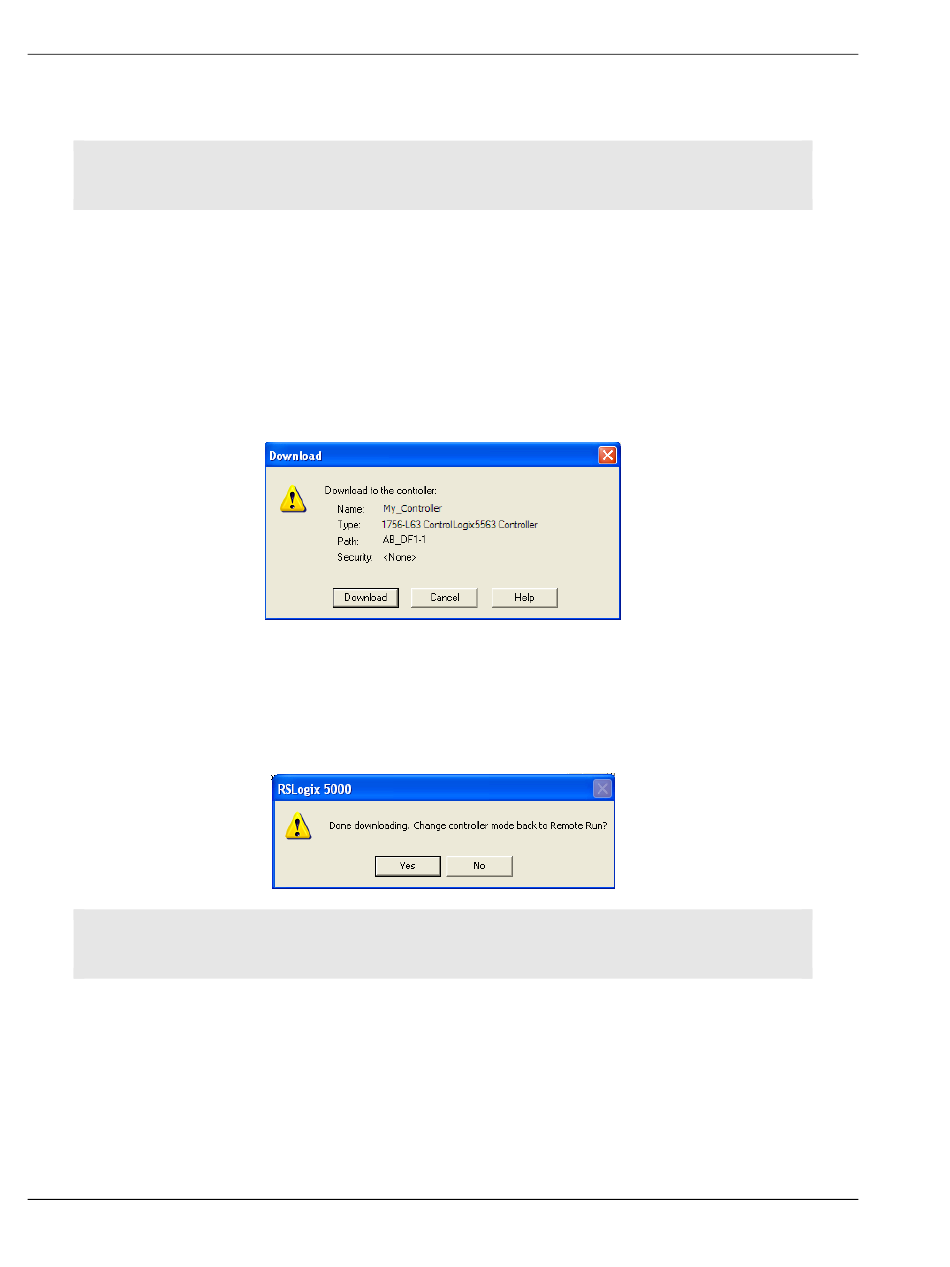

2 When communication is established, RSLogix 5000 will open a confirmation
dialog box. Click the D
processor.
3 RSLogix 5000 will compile the program and transfer it to the processor. This
process may take a few minutes.
When the download is complete, RSLogix 5000 will open another
4
confirmation dialog box. If the key switch is in the REM position, click OK to
switch the processor from PROGRAM mode to RUN mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to
interpret and correct the error.
