MVI69E-MBTCP ♦ CompactLogix Platform
Modbus TCP/IP Enhanced Communication Module
2.3

Generating the AOI (.L5X File) in ProSoft Configuration Builder

The following sections describe the steps required to set up a new configuration
project in ProSoft Configuration Builder (PCB), and to export the .L5X file for the
project.

2.3.1 Setting Up the Project in PCB

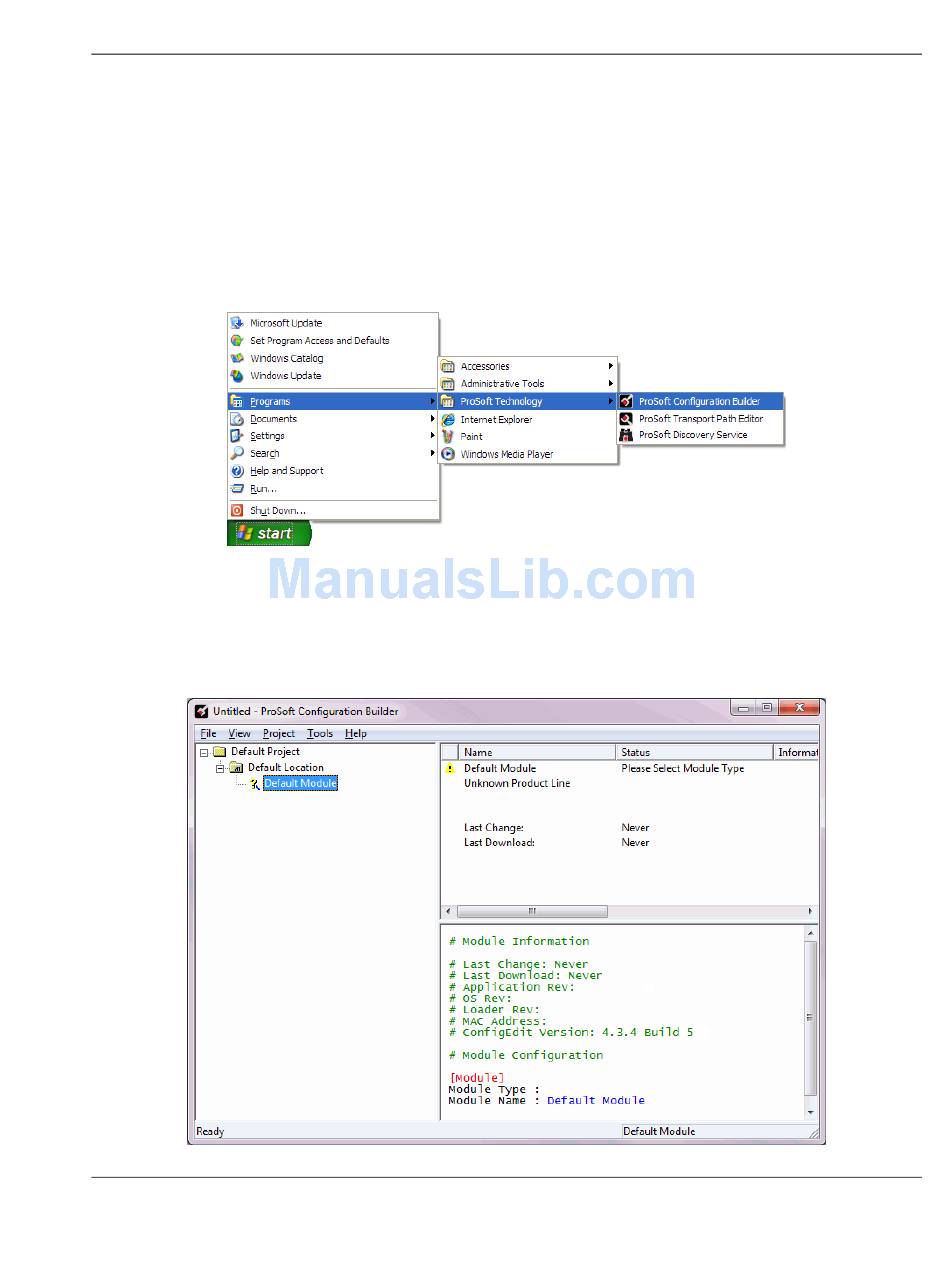

To begin, start P
The PCB window consists of a tree view on the left, and an information pane and
a configuration pane on the right side of the window. The tree view consists of
folders for Default Project and Default Location, with a Default Module in the
Default Location folder. The following illustration shows the PCB window with a
new project.
ProSoft Technology, Inc.
June 28, 2017
S C
RO OFT ONFIGURATION
B (PCB).
UILDER
Adding the Module to RSLogix
User Manual
Page 25 of 150
