2.1.3 Setting Up the Project

If you have used other Windows configuration tools before, you will find the screen
layout familiar. PCB's window consists of a tree view on the left, and an information pane
and a configuration pane on the right side of the window. When you first start PCB, the
tree view consists of folders for Default Project and Default Location, with a Default

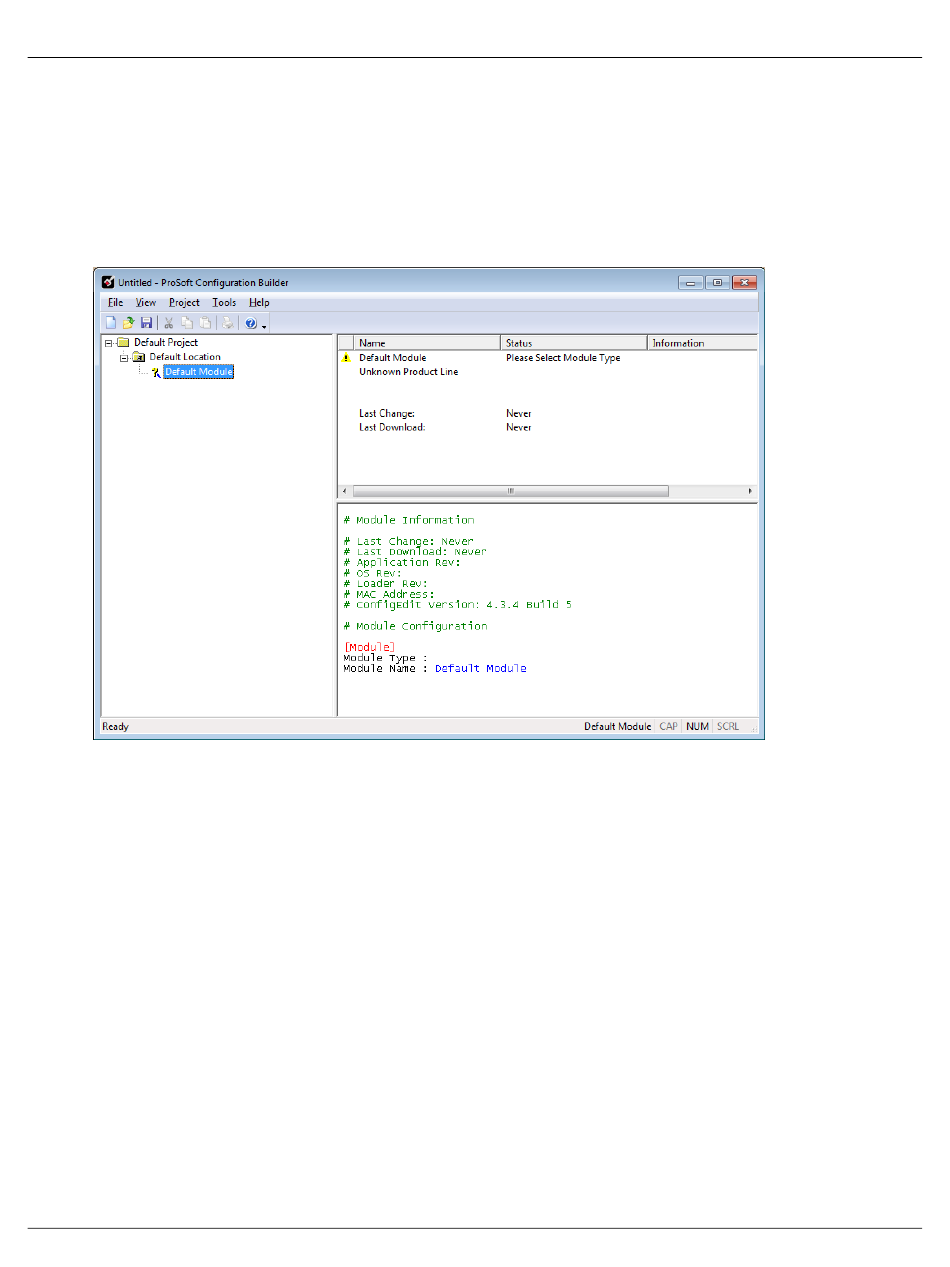

Module in the Default Location folder. The following illustration shows the PCB window
with a new project.
