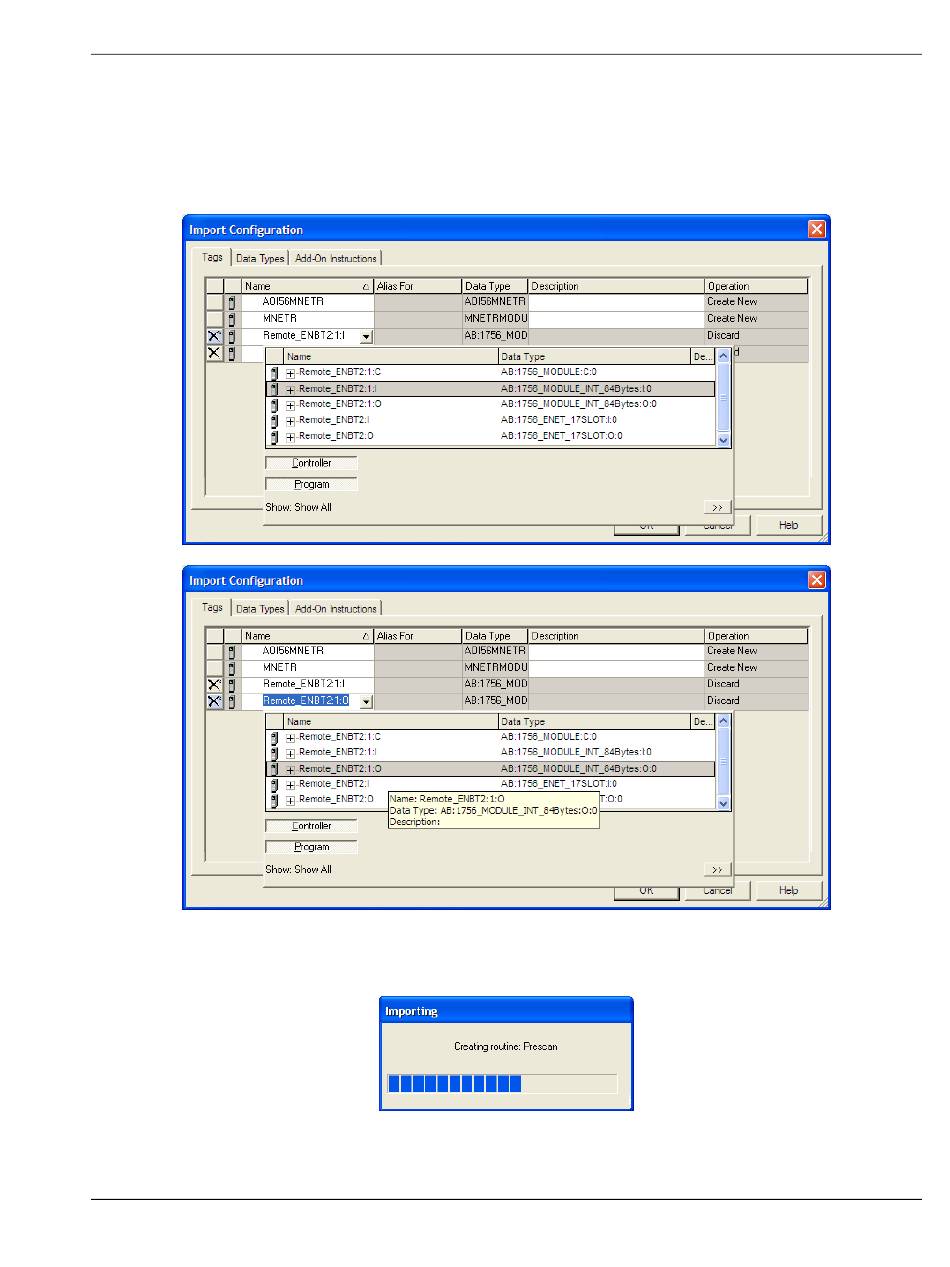

This action opens the I
controller tags that will be created.
If you are installing the module in a Remote Rack, open the dropdown
o
menus for the Input and Output tags, and select the MNETR module in
the remote rack.
5 Click OK to confirm the import. RSLogix will indicate that the import is in
progress:
