Start Here
User Manual

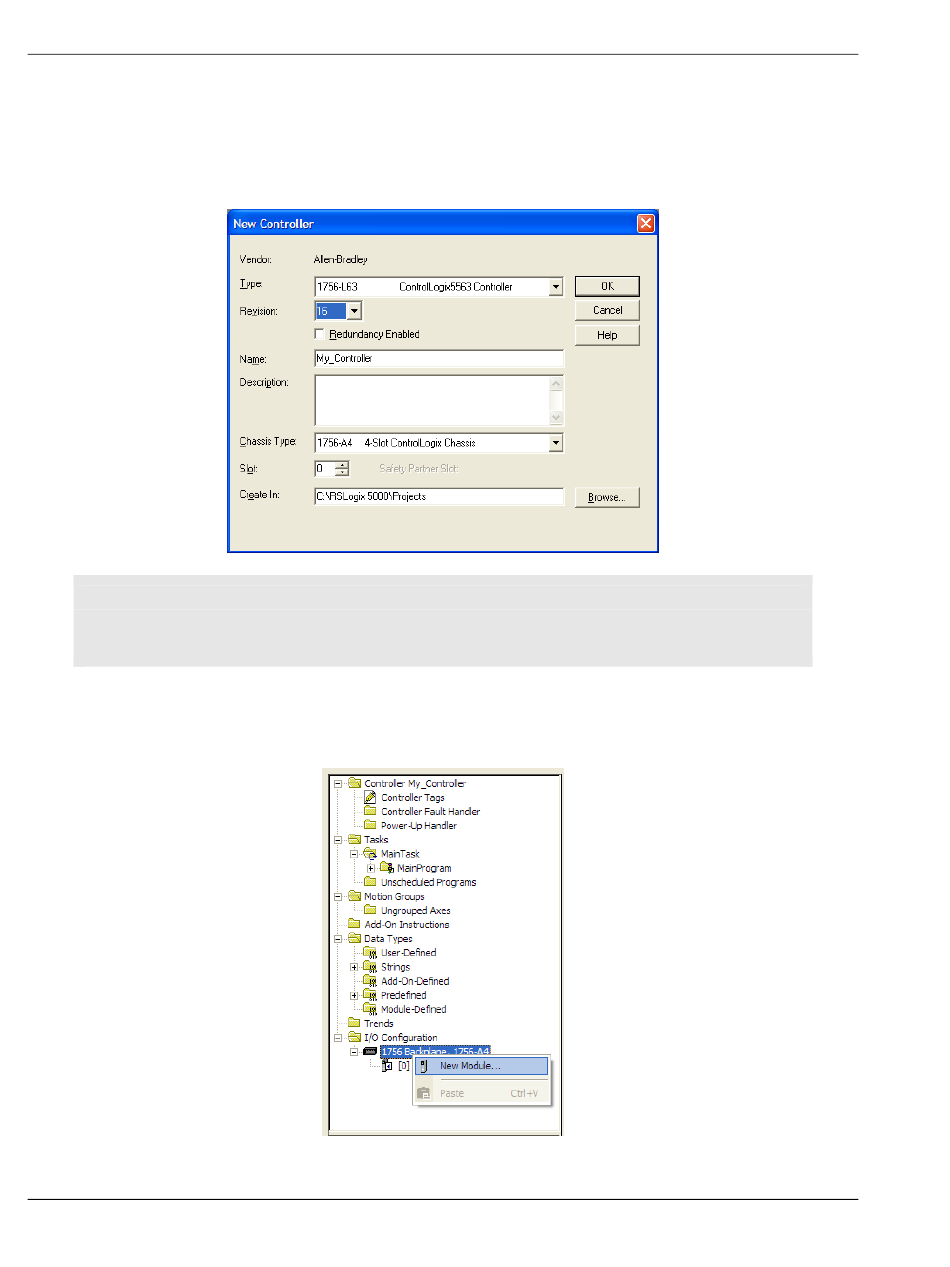

Select your ControlLogix controller model.
2
Select R
3
EVISION
4 Enter a name for your controller, such as My_Controller.
Select your ControlLogix chassis type.
5
Select S
6
LOT
Note: If you are installing the MVI56E-MNETR module in a remote rack, follow these next few
steps. If you are installing the module in a local rack, follow the steps in Create the Module - Local
Rack (page 33).

1.11.1 Create the Remote Network

Right-click I/O C
1
Page 28 of 175
16.
0 for the controller.
and choose N
ONFIGURATION
MVI56E-MNETR ♦ ControlLogix Platform
Modbus TCP/IP Interface Module with Reduced Data Block
