MVI56E-MNETR ♦ ControlLogix Platform
Modbus TCP/IP Interface Module with Reduced Data Block
2.2

Downloading the Project to the Module

In order for the module to use the settings you configured, you must download
(copy) the updated Project file from your PC to the module.
In the tree view in ProSoft Configuration Builder, click once to select the
1
MVI56E-MNETR module.
2 Open the P

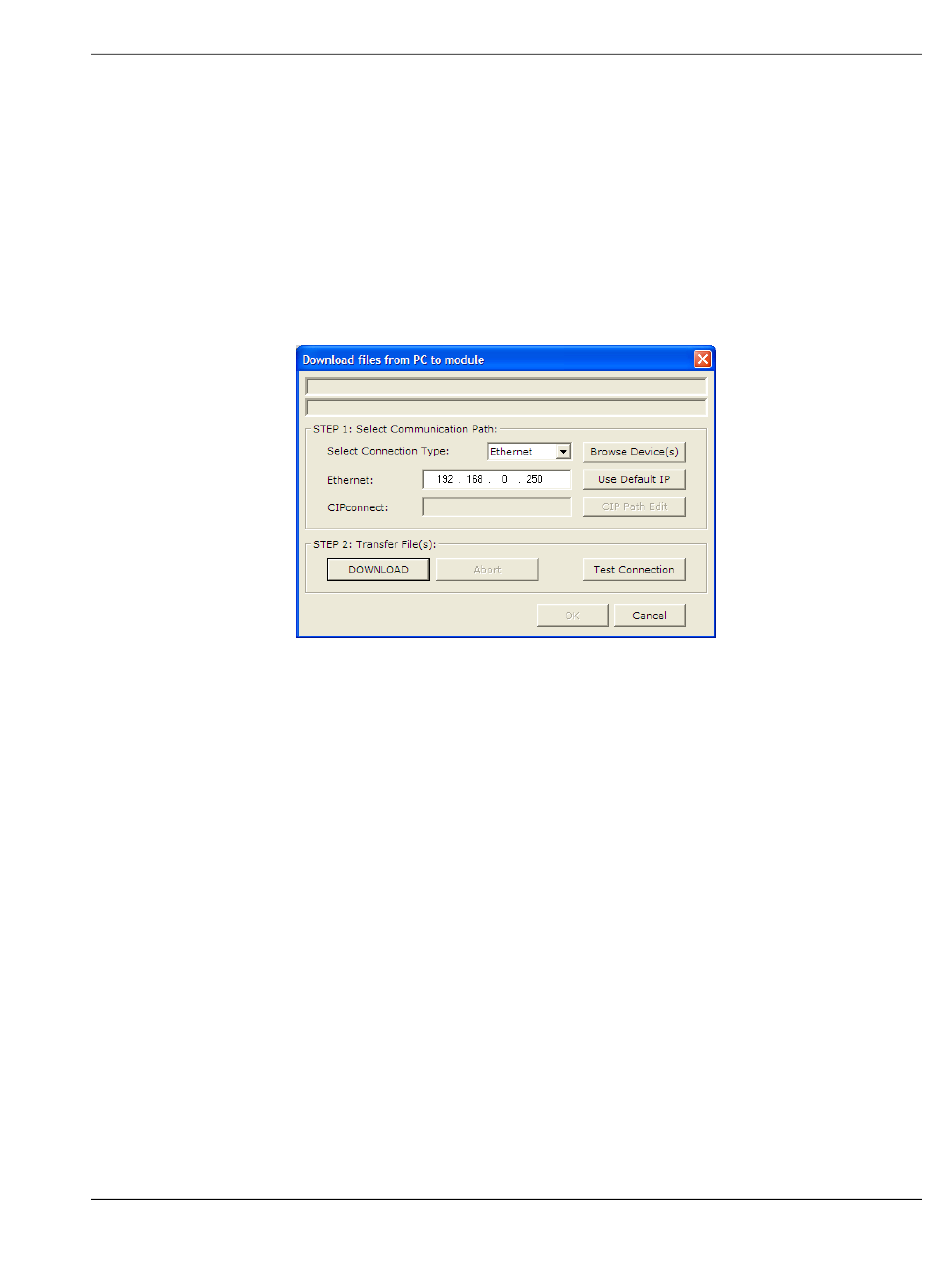

This action opens the Download dialog box. Notice that the Ethernet address
field contains the temporary IP address you assigned in the previous step.
ProSoft Configuration Builder will use this temporary IP address to connect to
the module.
Click T
EST
3 If the connection succeeds, click D
configuration to the module.
If the Test Connection procedure fails, you will see an error message. To correct
the error, follow these steps.
Click OK to dismiss the error message.
1
