Configuring the MVI56E-MNETR Module
User Manual

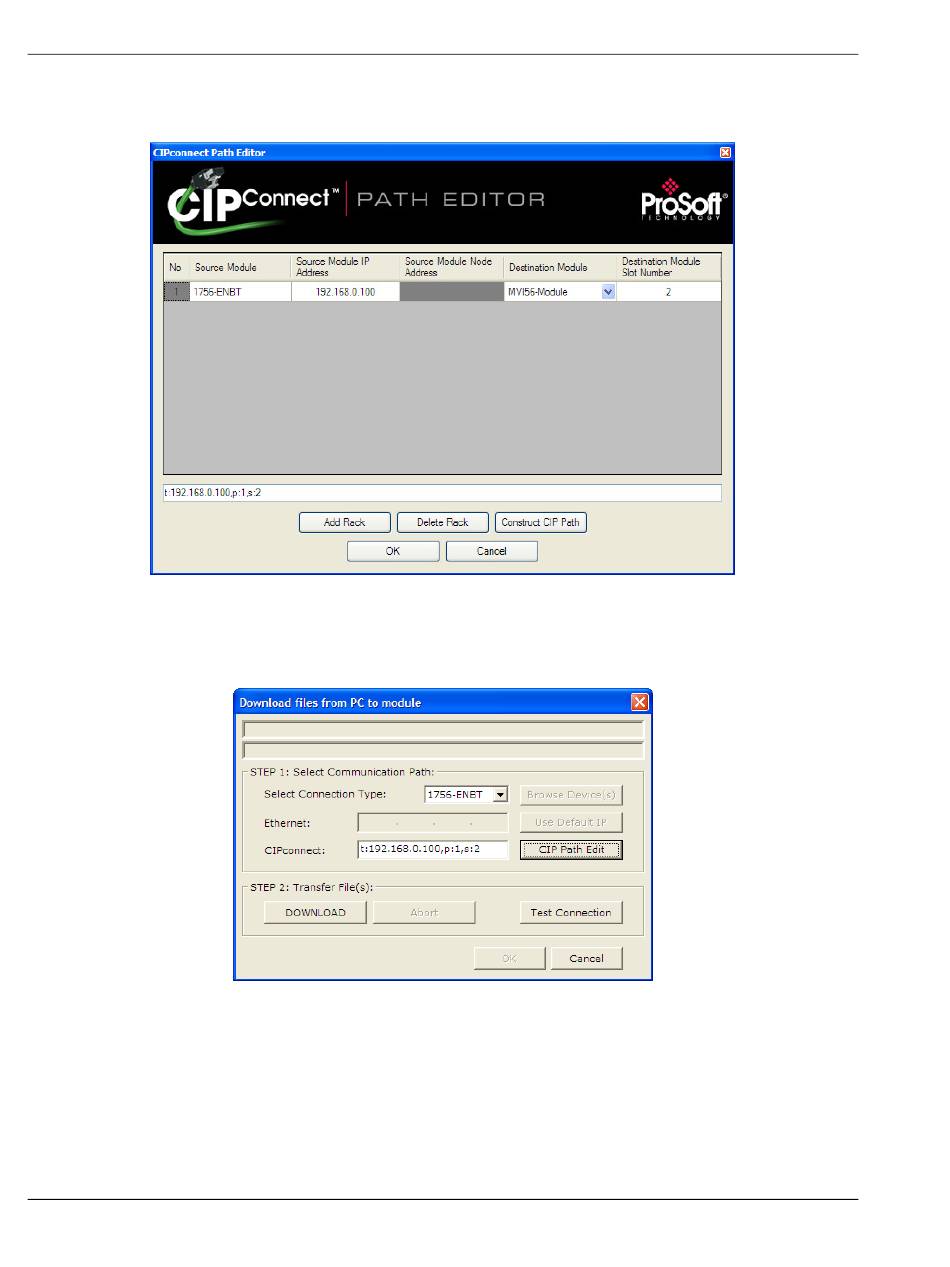

Configure the path as shown in the following illustration, and click
2
C
ONSTRUCT
Click OK to close the CIPconnect Path Editor and return to the Download
dialog box.
3 Check the new path in the Download dialog box.
Page 74 of 175
to build the path in text format.
