Create The Module - Remote Rack - ProSoft Technology ControlLogix inRAx MVI56E-MNETR User Manual

Start Here
User Manual

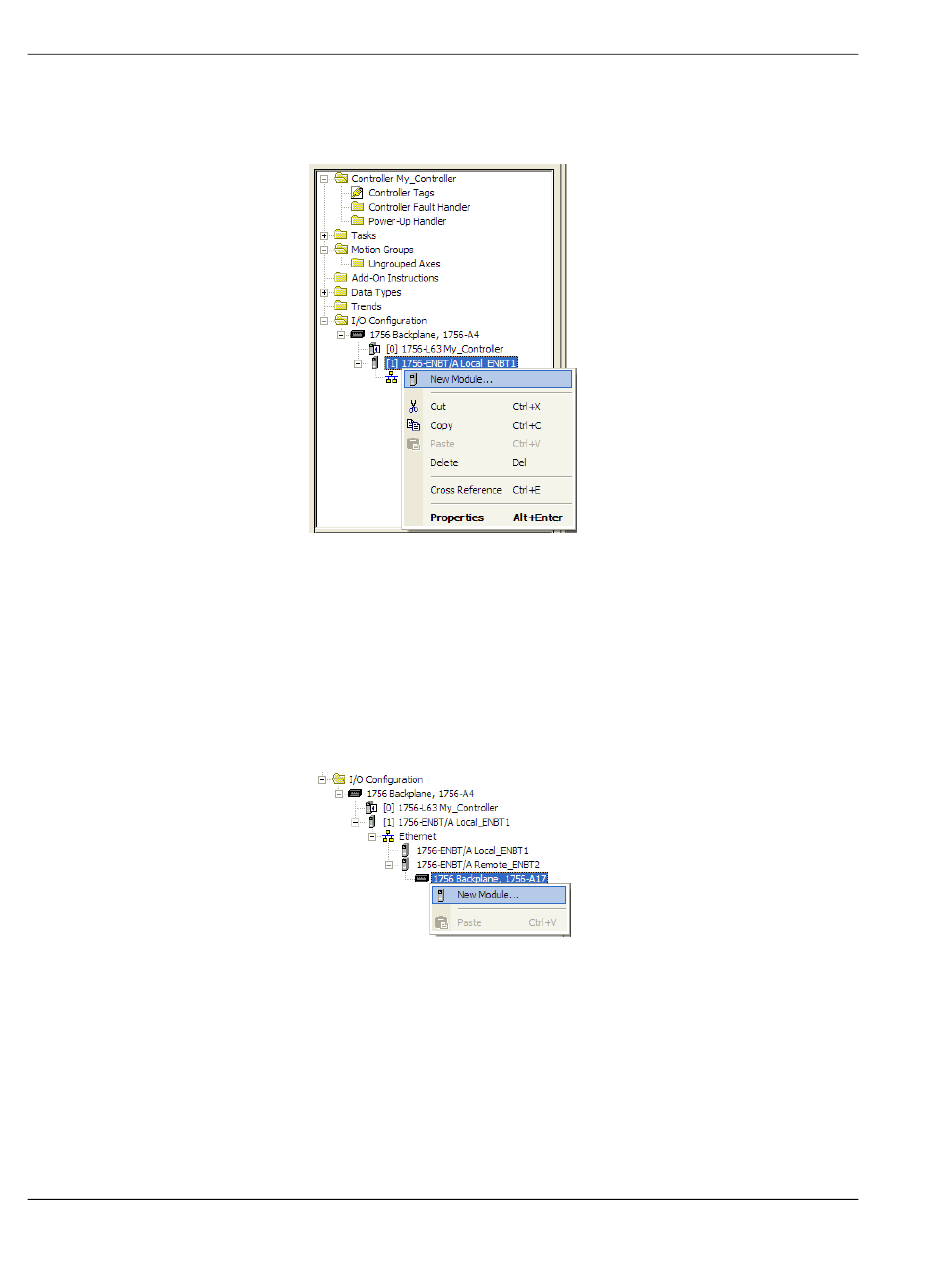

Next, select the 1756-ENBT module that you just created in the Controller
5
Organization pane and click the right mouse button to open a shortcut menu.
On the shortcut menu, choose N
6 Repeat steps 2 and 3 to add the second EtherNet/IP module to the remote
rack.

1.11.2 Create the Module - Remote Rack

1 Next, select the remote 1756 B
pane underneath the remote rack EtherNet/IP module you just created and
click the right mouse button to open a shortcut menu. On the shortcut menu,
choose N
EW
Page 30 of 175
EW
ACKPLANE
M .
ODULE
MVI56E-MNETR ♦ ControlLogix Platform
Modbus TCP/IP Interface Module with Reduced Data Block
M .
ODULE
node in the Controller Organization
