2.1.2 Renaming PCB Objects

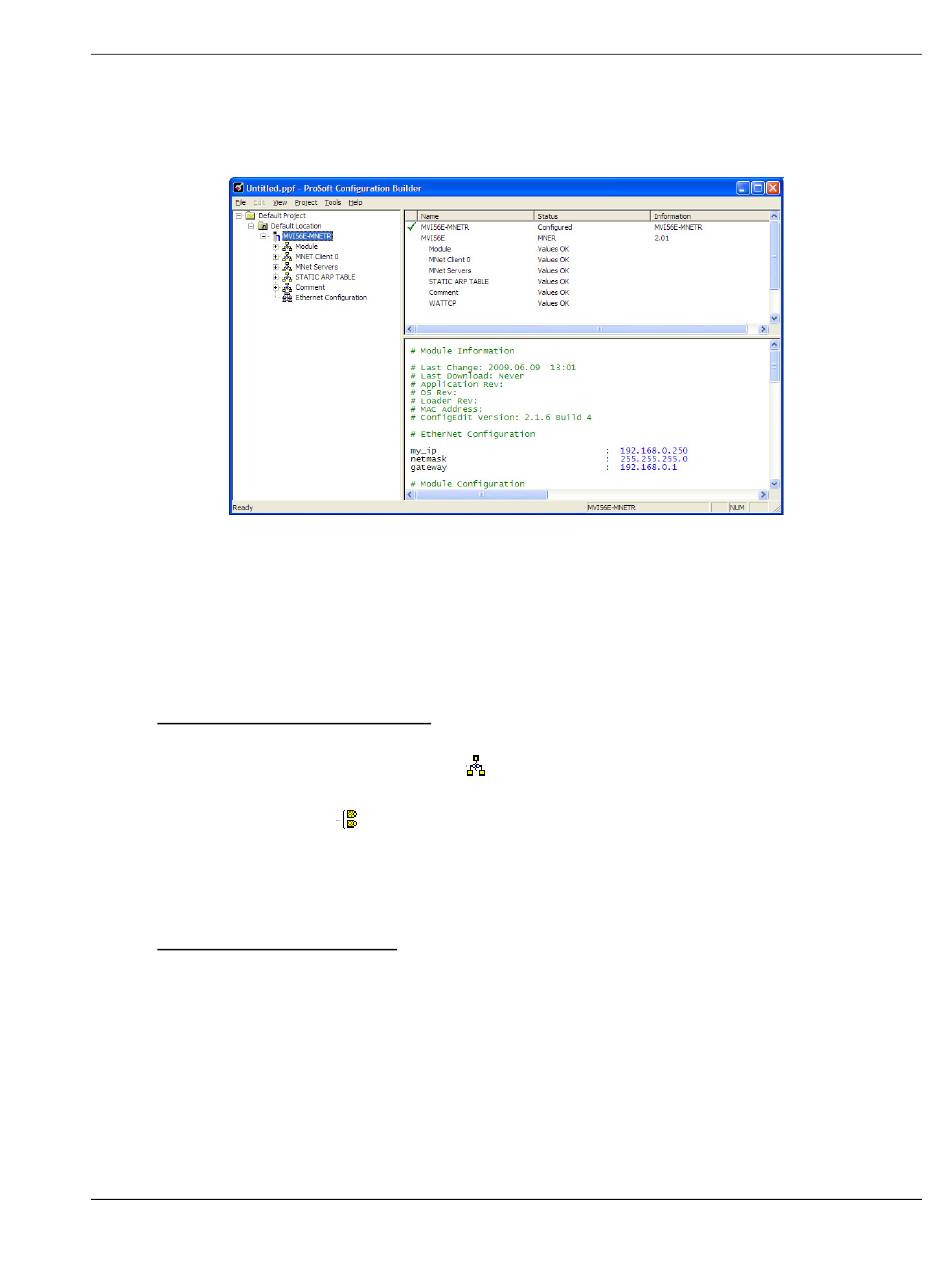

Notice that the contents of the information pane and the configuration pane
changed when you added the module to the project.
At this time, you may wish to rename the Default Project and Default Location
folders in the tree view.
Select the object, and then click the right mouse button to open a shortcut
1
menu. From the shortcut menu, choose R
Type the name to assign to the object.
2
Click away from the object to save the new name.
3
Configuring Module Parameters
1 Click on the [+] sign next to the module icon to expand module information.
Click on the [+] sign next to any
2
configuration options.
Double-click any
3
4 To edit a parameter, select the parameter in the left pane and make your
changes in the right pane.
5 Click OK to save your changes.
Printing a Configuration File
1 Select the module icon, and then click the right mouse button to open a
shortcut menu.
On the shortcut menu, choose V
2
View Configuration window.
3 In the View Configuration window, open the F
This action opens the Print dialog box.
4 In the Print dialog box, choose the printer to use from the drop-down list,
select printing options, and then click OK.
