5.6.3 Installing the Rung Import with Optional Add-On Instruction

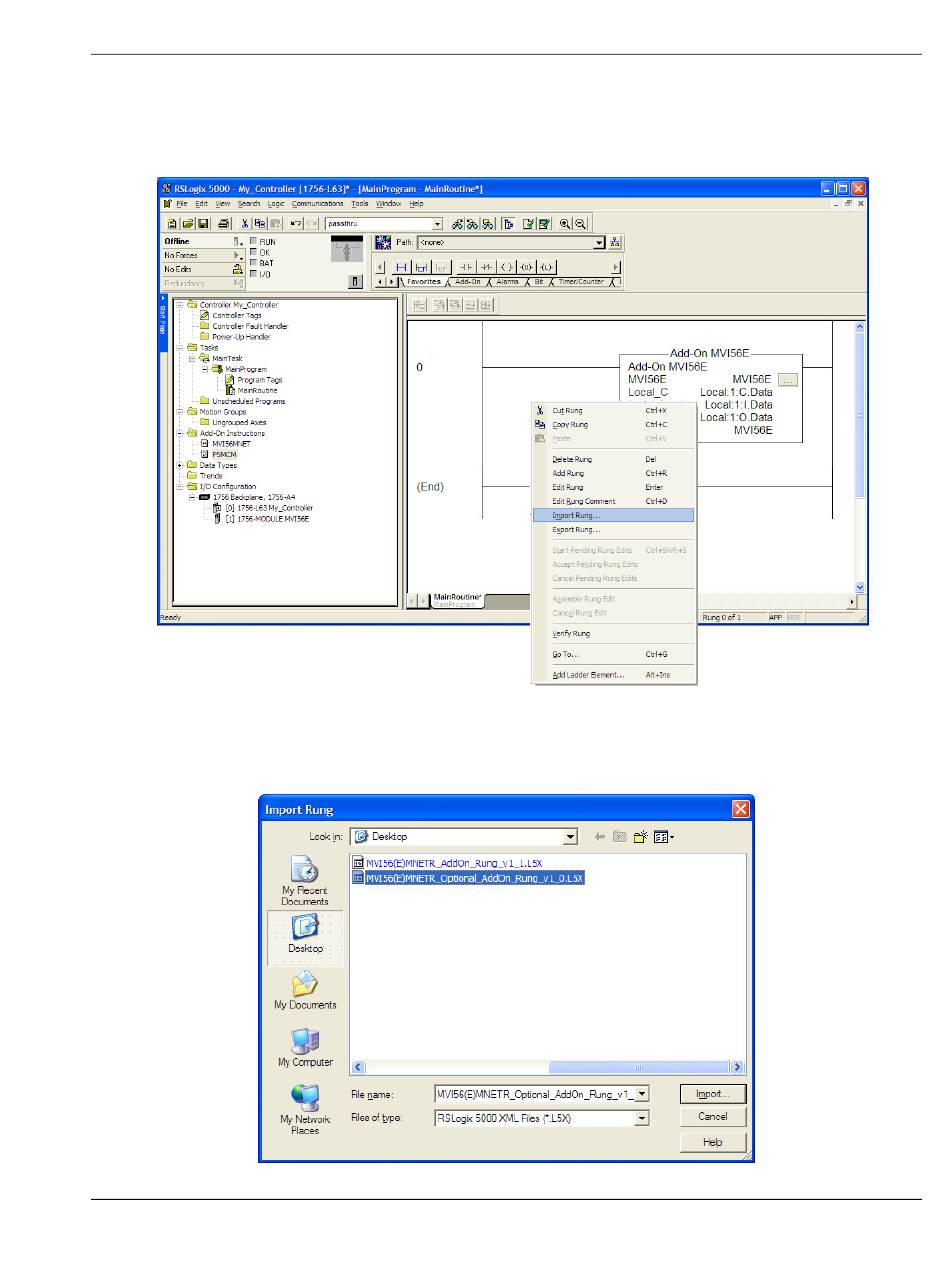

Right-click on an empty rung in the main routine of your existing ladder logic
1
and choose I
Navigate to the folder where you saved
2
MVI56(E)MNETR_Optional_AddOn_Rung_<version #>.L5X and select the
file.
ProSoft Technology, Inc.
June 14, 2011
R ...
MPORT UNG
