ProSoft Technology ControlLogix inRAx MVI56E-MNETR User Manual page 159

MVI56E-MNETR ♦ ControlLogix Platform
Modbus TCP/IP Interface Module with Reduced Data Block

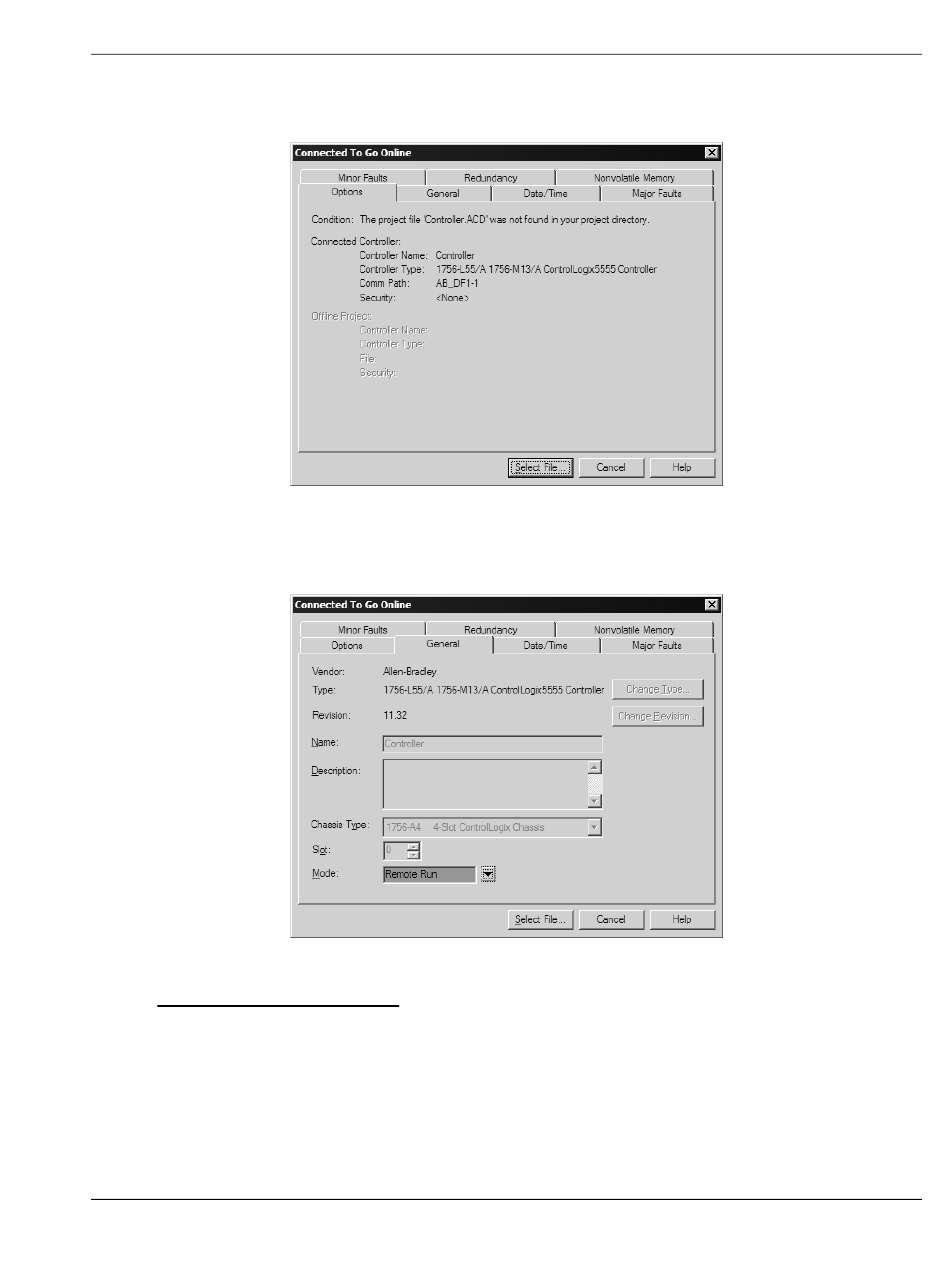

When RSLogix has established communication with the processor, the
4
Connected To Go Online dialog box will open.
In the Connected To Go Online dialog box, click the G
5
shows information about the processor, including the Revision (firmware)
version. In the following illustration, the firmware version is 11.32
6 Select the sample ladder logic file for your firmware version.
To open the sample program
1 On the Connected to Go Online dialog box, click the S
Choose the sample program file that matches your firmware version, and
2
then click the S
3 RSLogix will load the sample program.
The next step is to configure the correct controller type and slot number for your
application.
ProSoft Technology, Inc.
June 14, 2011
button.
ELECT
User Manual
tab. This tab
ENERAL
F button.
ELECT ILE
Page 159 of 175
Reference
