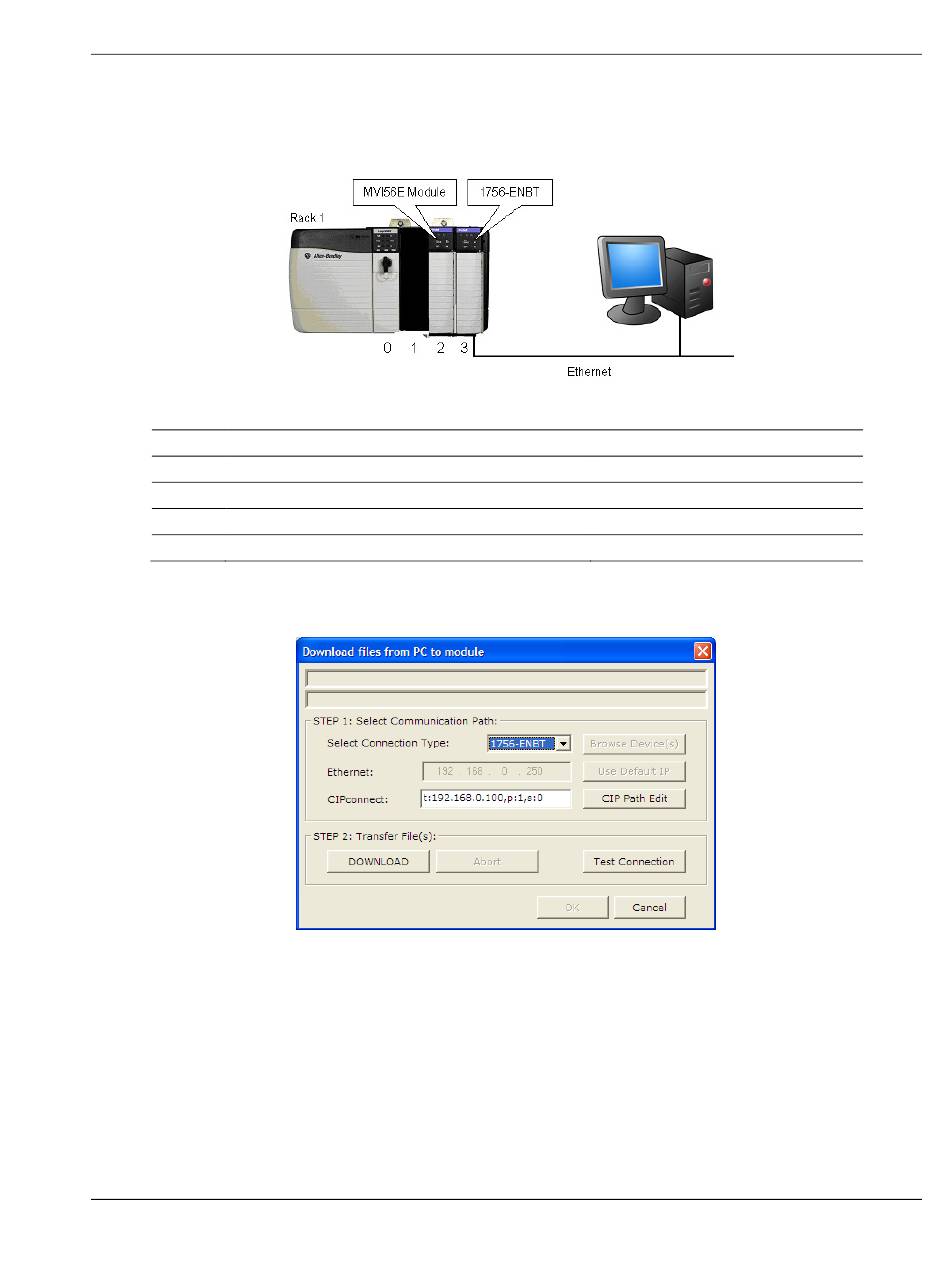

2.3.1 Example 1: Local Rack Application

For this example, the MVI56E-MNETR module is located in the same rack as the
1756-ENBT that is connected to the PC.
Rack 1
Slot Module
0 ControlLogix Processor
1 Any
2 MVI56E-MNETR
3 1756-ENBT
In the Download dialog box, click CIP P
1
ProSoft Technology, Inc.
June 14, 2011
Configuring the MVI56E-MNETR Module
Network Address
-
-
-
IP=192.168.0.100
E .
ATH DIT
