1.10 Uploading the Add-On Instruction from the Module

Configuration and control information for the MVI56E-MNETR module is provided
as an Add-On Instruction for RSLogix 5000, version 16 or higher.
Two Add-On Instructions are provided:

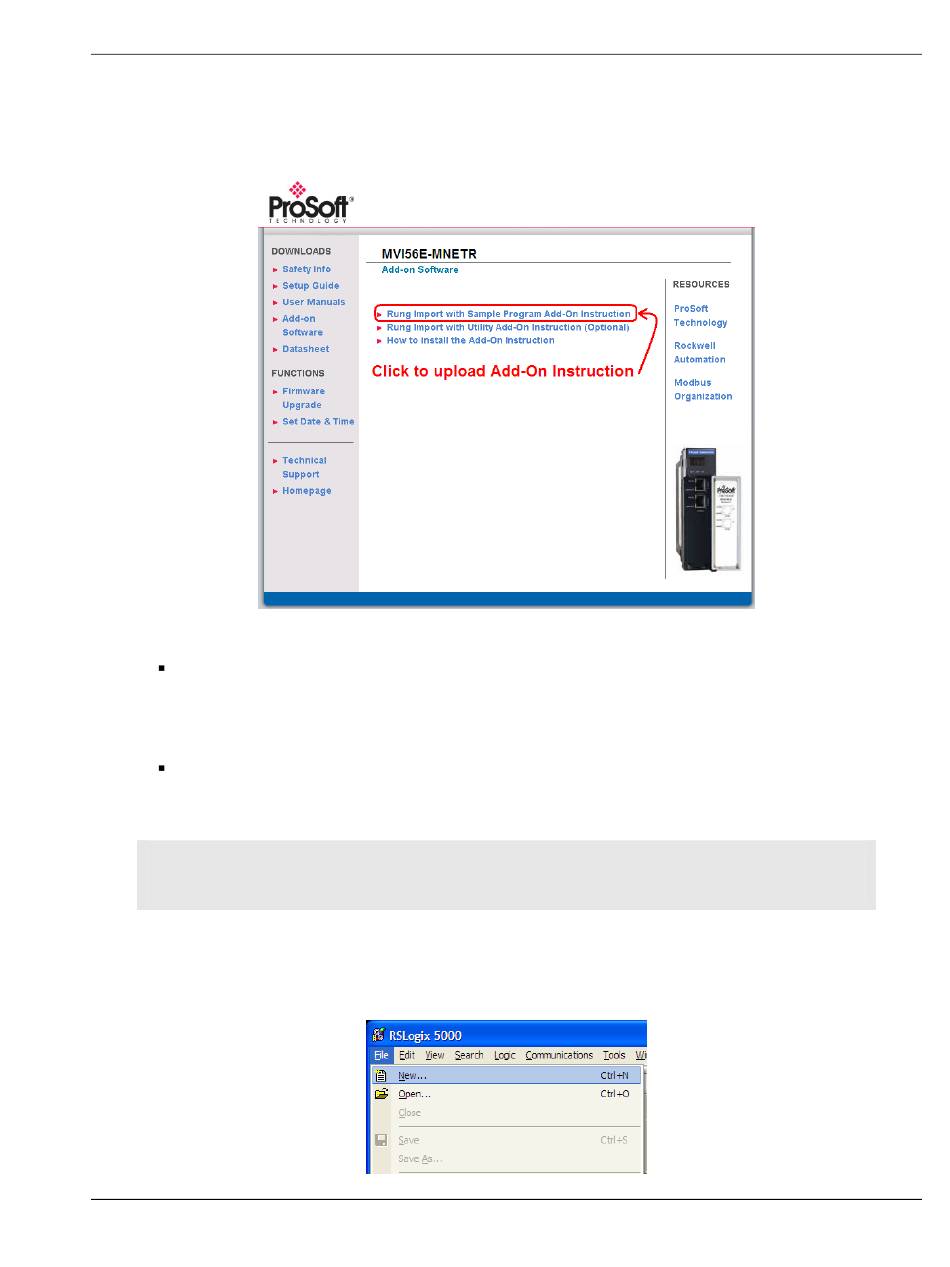

The Rung Import with Sample Program Add-On Instruction:
MVI56EMNETR_AddOn_Rung_v1_3.L5X
Includes the user-defined data types, data objects and ladder logic required
to configure the MVI56E-MNETR module.
The Rung Import with Utility Add-On Instruction (Optional):
MVI56EMNETR_Optional_Rung_v1_0.L5X
If your processor uses an earlier version of RSLogix 5000, see Using the Sample Program (page
158).

1.11 Creating a New RSLogix 5000 Project

1 Open the F
