Expand the C
2

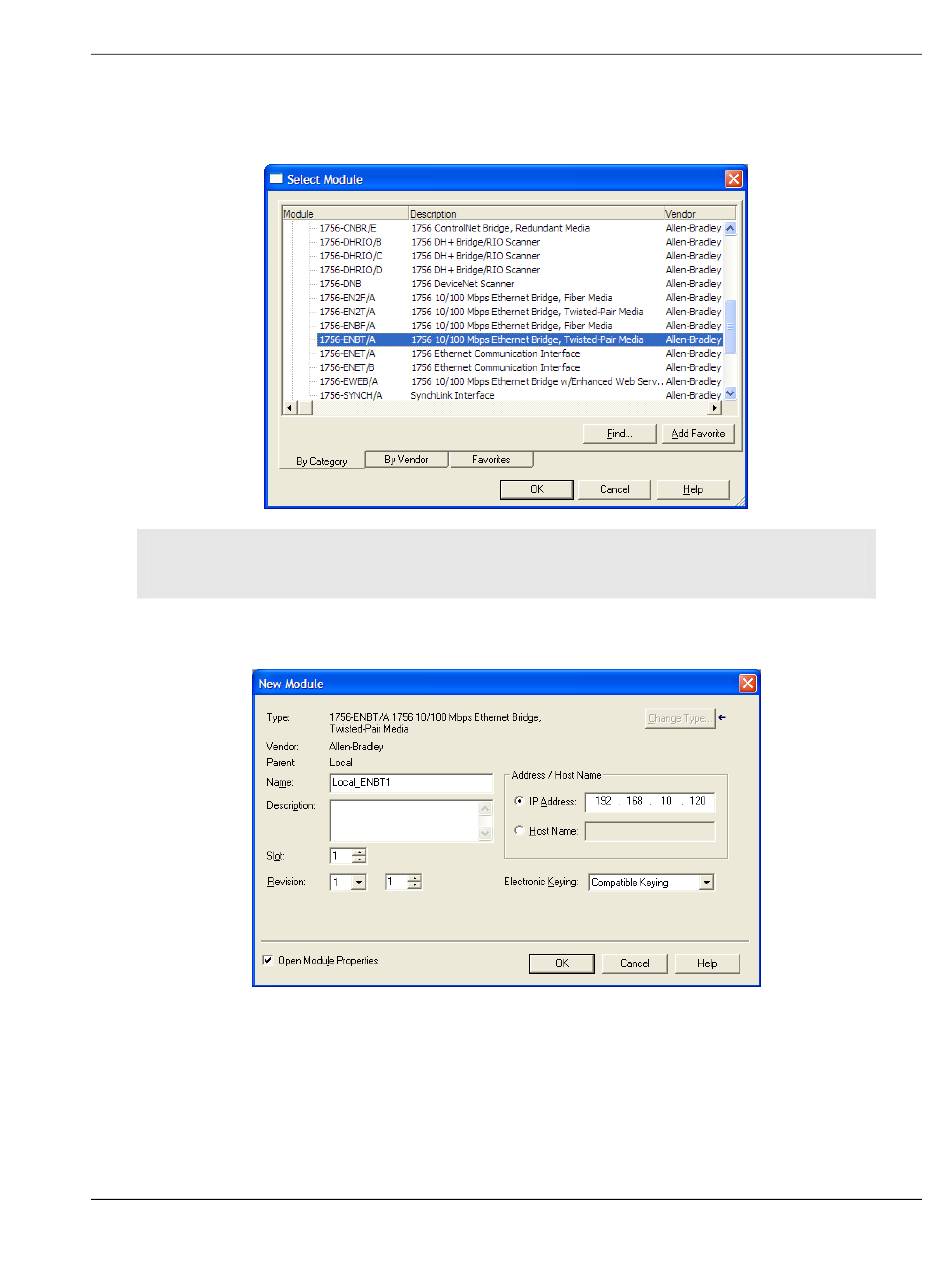

Bridge module that matches your hardware. This example uses a 1756-
ENBT/A module.
Note: If you are prompted to "Select Major Revision", choose the lower of the available revision
numbers.
Name the ENBT/A module, then set the IP Address and slot location in the
3
local rack with the ControlLogix processor.
Click OK.
