MVI69E-MBS ♦ CompactLogix™ Platform
Modbus Serial Enhanced Communication Module
2.3

Generating the AOI (.L5X File) in ProSoft Configuration Builder

The following sections describe the steps required to set up a new configuration project
in ProSoft Configuration Builder (PCB), and to export the .L5X file for the project.

2.3.1 Setting Up the Project in PCB

1 Start P S
RO

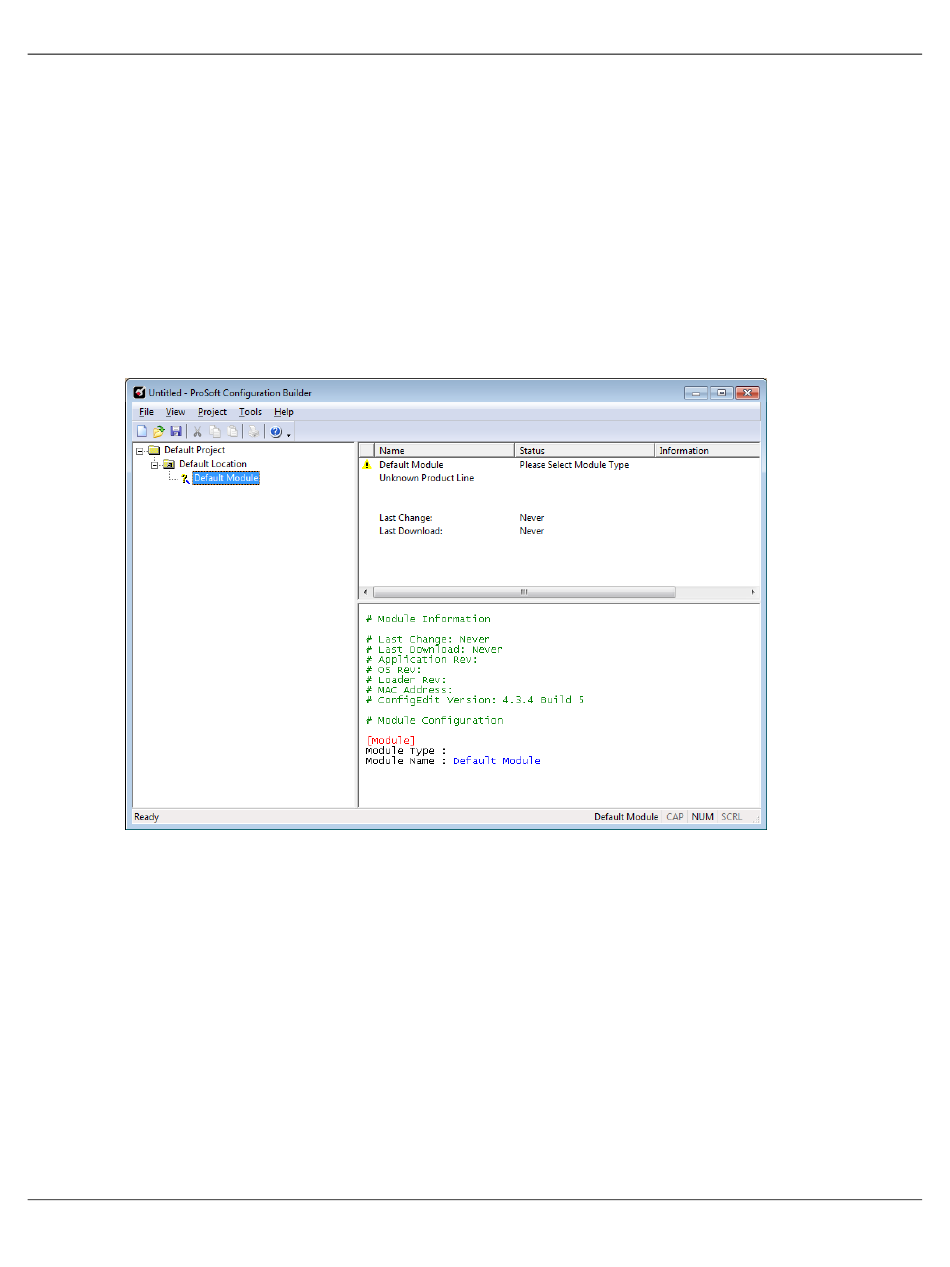

2 The PCB window consists of a tree view on the left, and an information pane and a
configuration pane on the right side of the window. The tree view consists of folders
for Default Project and Default Location, with a Default Module in the Default
Location folder. The following illustration shows the PCB window with a new project.
ProSoft Technology, Inc.
C B
OFT ONFIGURATION
(PCB).
UILDER
Configuring the Module in RSLogix
User Manual
Page 22 of 159
