MVI56E-MNETR ♦ ControlLogix Platform
Modbus TCP/IP Interface Module with Reduced Data Block
4.3

Monitoring Module Information

Use the MODULE menu to view configuration and hardware information for the
MVI56E-MNETR module's backplane and Ethernet application port.

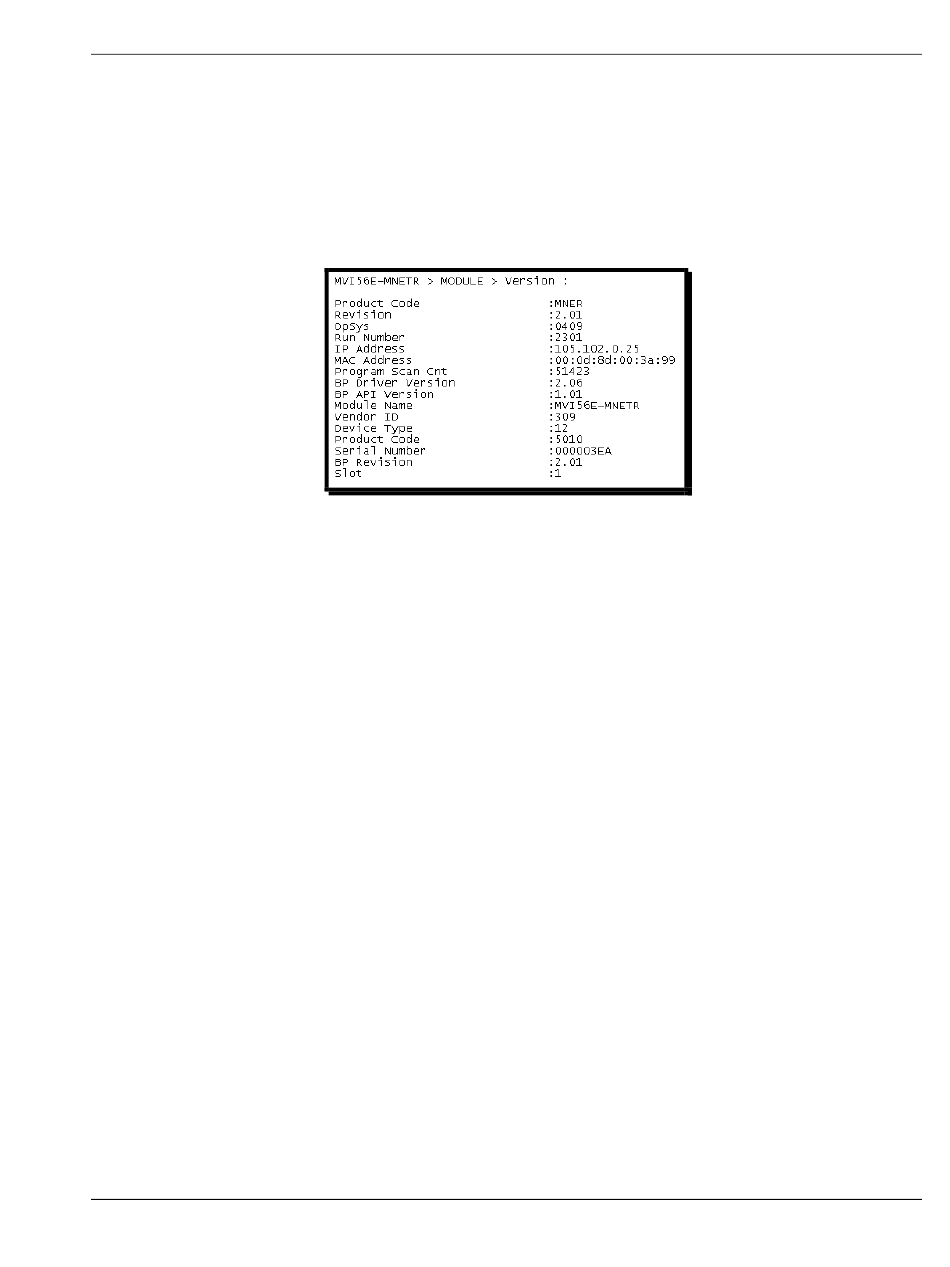

4.3.1 Version

Use the V
ERSION
The values on this menu correspond with the contents of the module's
Miscellaneous Status registers.

4.3.2 Config

Use the Configuration menu to view backplane configuration settings for the
MVI56E-MNETR module.
The information on this menu corresponds with the configuration information in
the Module settings in ProSoft Configuration Builder.

4.3.3 NIC Status

Use the NIC Status (Network Interface Card) menu to view configuration and
status information for the MVI56E-MNETR module's Ethernet application port.
The information on this menu is useful for troubleshooting Ethernet network
connectivity problems.

4.3.4 Static ARP

Use the Static ARP menu to view the list of IP and MAC addresses that are
configured not to receive ARP (Address Resolution Protocol) messages from the
module.
The Static ARP Table (page 67) defines a list of static IP addresses that the
module will use when an ARP is required.
4.4

Monitoring Backplane Information

Use the BACKPLANE menu to view the backplane status information for the
MVI56E-MNETR module.
ProSoft Technology, Inc.
June 14, 2011
menu to view module hardware and firmware information.
