Configuring the MVI56E-MNETR Module
User Manual

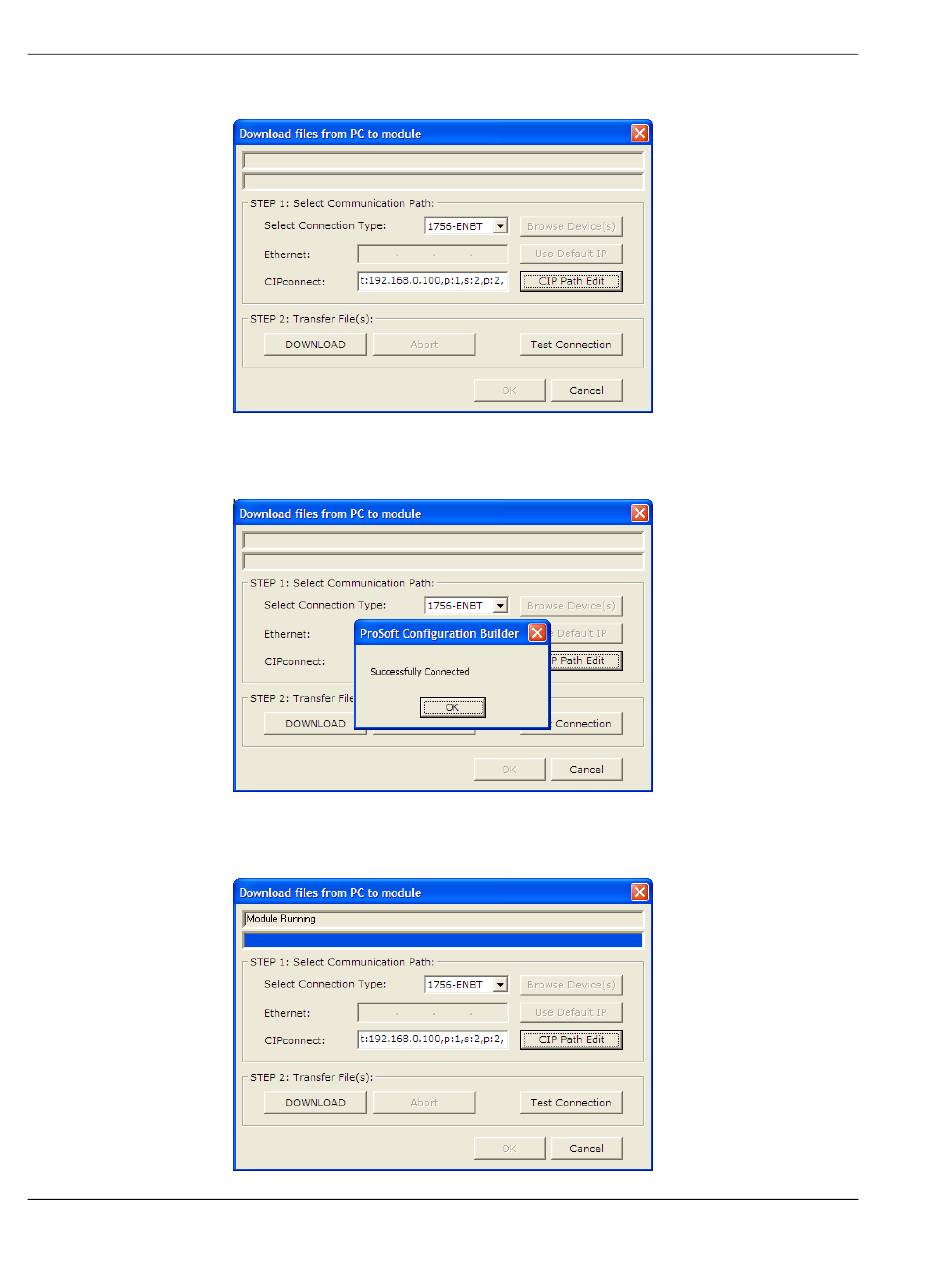

Check the new path in the Download dialog box.
3
4 Click T
EST
following message should be displayed upon success.
5 Click D
OWNLOAD
the path.
Page 78 of 175
C to verify that the physical path is available. The
ONNECTION
to download the configuration files to the module through
MVI56E-MNETR ♦ ControlLogix Platform
Modbus TCP/IP Interface Module with Reduced Data Block
ProSoft Technology, Inc.
June 14, 2011
