MVI56E-MNETR ♦ ControlLogix Platform
Modbus TCP/IP Interface Module with Reduced Data Block
4.2

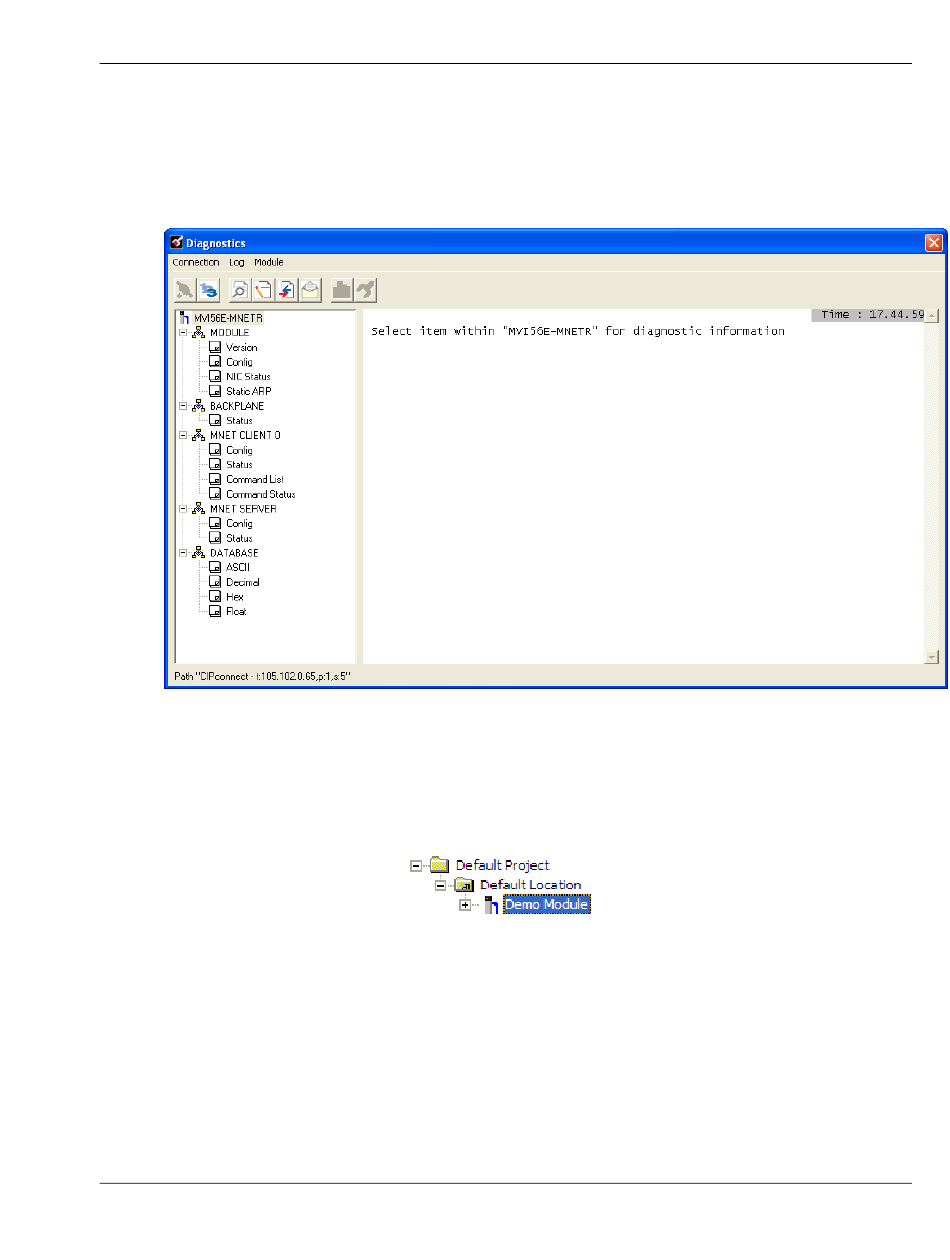

The Diagnostics Menu

The Diagnostics menu, available through the Ethernet configuration port for this
module, is arranged as a tree structure, with the Main menu at the top of the tree,
and one or more submenus for each menu command. The first menu you see
when you connect to the module is the Main menu.

4.2.1 Using the Diagnostics Menu in ProSoft Configuration Builder

To connect to the module's Configuration/Debug Ethernet port:
In ProSoft Configuration Builder, select the module, and then click the right
1
mouse button to open a shortcut menu.
ProSoft Technology, Inc.
June 14, 2011
Diagnostics and Troubleshooting
User Manual
Page 93 of 175
