9.16.4 QAD-6425-25/-70 Amplifier Wiring (25W Circuits)
The QAD-6425-25/-70 amplifiers can be wired as four 25 Watt supervised speaker outputs.
Each 25W circuit may be wired as Class A or Class B.

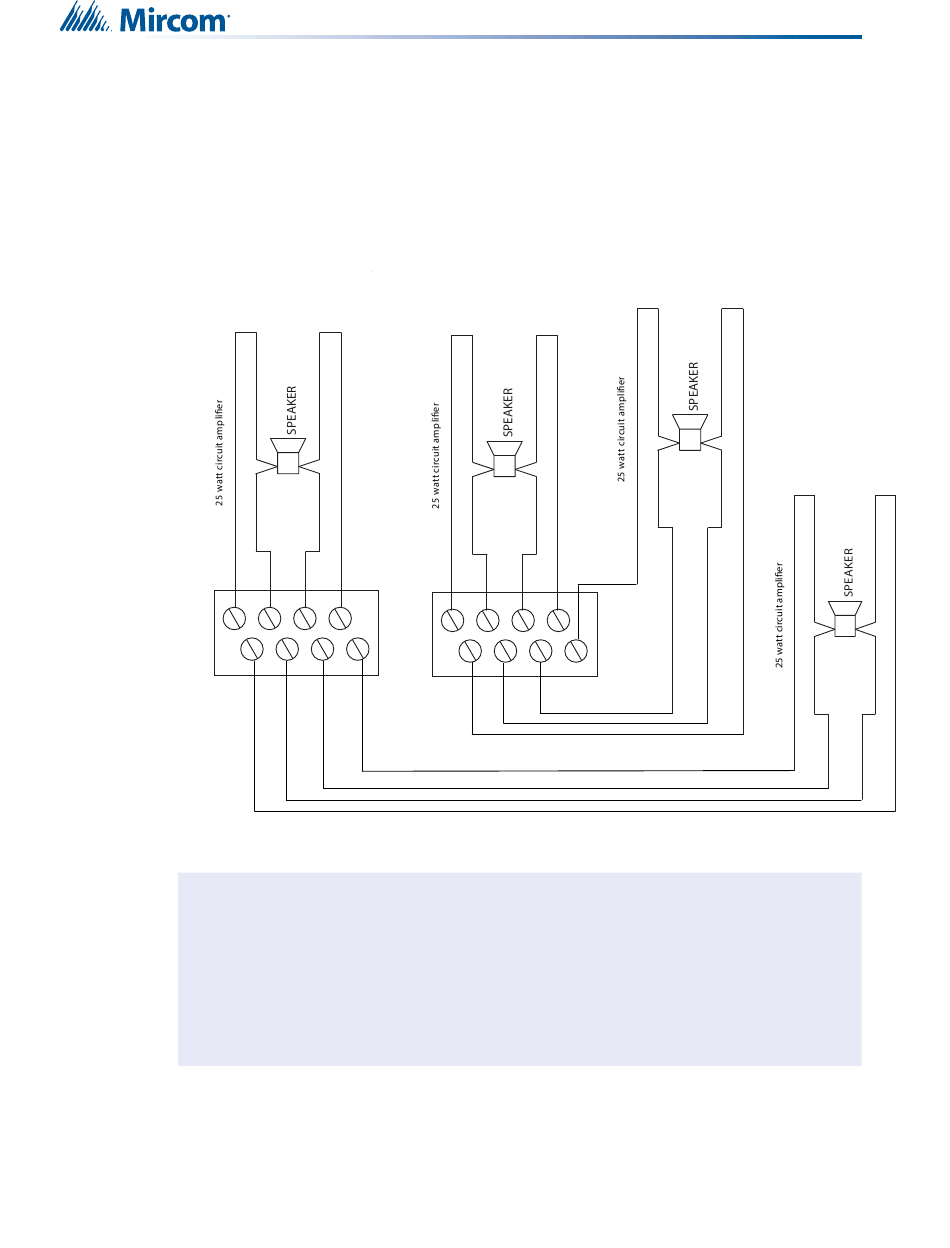

Figure 69 Wiring for 25W Amplifier Circuits

QAD-6425-70/-25
TERMINAL BLOCK
SLOT 1 OF QMB-6000
Two blocks of eight terminals
for one amplifier
B-
i
Notes:
• Use terminal block 1.1,1.2, 1.3 and 1.4 for four 25W circuit wiring.
• For four circuits of 25Watts, DO NOT use any of the jumpers (WC-1008) on the
connectors on the amplifier.
• All circuits are power limited and supervised.
• See speaker wiring chart for wire gauge selection.
• Refer to Table 15 for proper end of line resistor value.
89
CLASS A
WIRING
EXAMPLE
1.2
1.1
A- A+ B+
TNC-5000 Telephone Network Controller Module
CLASS A
WIRING
EXAMPLE
1.4
1.3
B-
A-
A+ B+
CLASS A
WIRING
EXAMPLE
CLASS A
WIRING
EXAMPLE
