9.6

QMT-5302NV Connections

The connections required on the QMT-5302NV Network Master Firefighters' Telephone
Control Module are the cable from the previous display module to P1 or IN connector on the
bottom left of the board and the OUT connection goes to the IN connector of the next display
board.
The master telephone positive and negative terminals connect to the TNC-5000 Zone 1
positive and negative terminals with twisted shielded pair wires. Refer to Figure 61 below for
connector and terminal block locations of the QMT-5302NV.

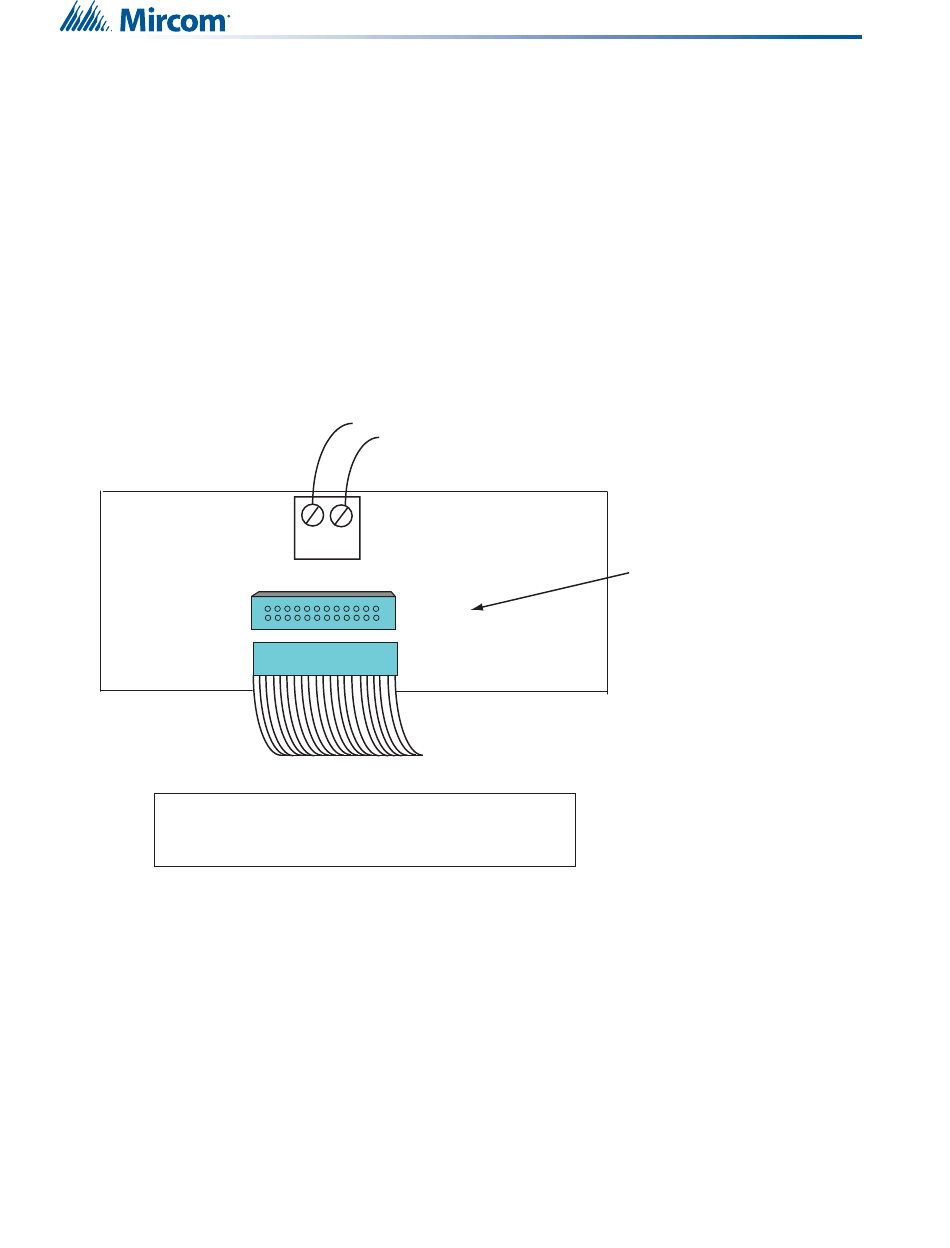

Figure 61 QMT-5302NV Cable Connection and Terminal Wiring

P2
P1
Terminal connection located on the back of the
QMT-5302NV Network Master Firefighters' Telephone
9.7 QMT-5302NV Connections
The connections required on the QMT-5302NV Network Master Firefighters' Telephone Control Module are
the cable from the previous display module to P1 or IN connector on the bottom left of the board and the
OUT connection goes to the IN connector of the next display board.
The master telephone positive and negative terminals connect to the TNC-5000 Zone 1 positive and
negative terminals with twisted shielded pair wires. Refer to below for connector and terminal block
locations of the QMT-5302N.
79
To TNC-5000 Telephone Zone 1
positive and negative terminals
(twisted pair wire)
-
+
OUT
IN
Connection from previous display
TNC-5000 Telephone Network Controller Module
Connection to
Telephone
Selector Panel P1
or next display
