6.4

Audio Network Card and Telephone Network Card

Each QMB-6000 backplate requires an ANC-6000 Audio Network Controller Card. The TNC-
5000 Telephone Controller Network card is necessary only if Telephone circuits are required.
Below is a diagram for mounting both audio and telephone cards over the main fire alarm
board in FX-6000MNS-CH.
The ANC-6000 can be mounted in positions 2, 3, or 4.
The FNC-2000 can by mounted in positions 1 or 2.
The TNC-5000 must be mounted over the ANC-6000.

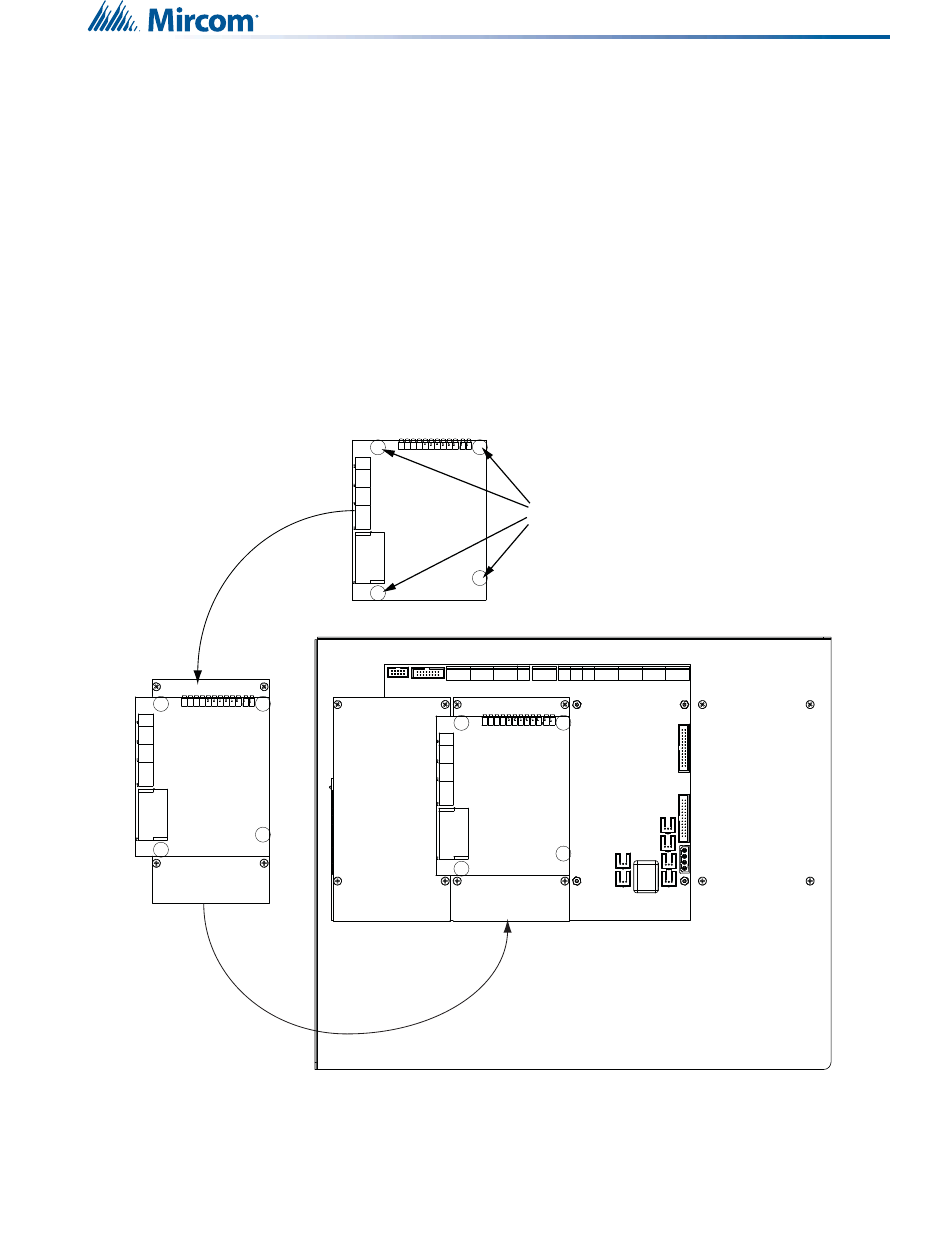

Figure 51 Mounting the Audio and Telephone Card over the Main Fire Alarm Board in

FX-6000MNS-CH
TNC-5000 board
mounts over
ANC-6000 board
TNC-5000
ANC-6000
TNC-5000
TNC-5000
FNC-2000
1 2
ANC-6000
Mounting
holes
3
Field Wiring of Audio
4
