Appendix H: Configuration Example
22.0
Setup
Configuration Example Setup

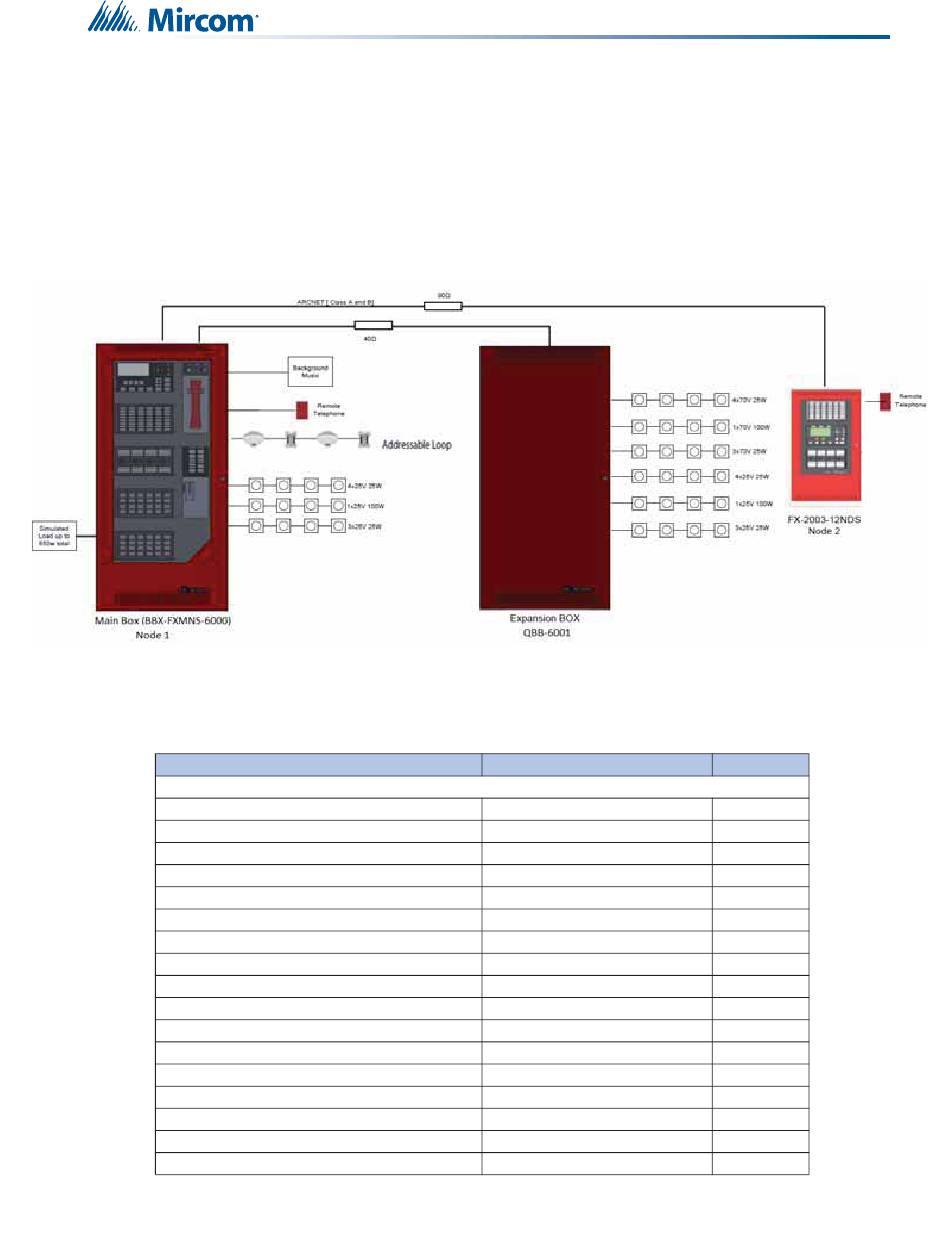

Here is the drawing of a sample hardware setup that represents new components within the FX-MNS-6000 product and
their connection with the existing FleX-Net system.
Node Builds
Description
Main Box
Main board
Telephone network controller
Fire Network Controller
Vertical Master Paging Module
Vertical Master Telephone Module
Main Display
Page Selector
Signal adder module
Audio Network Controller Module
Communication card
Power supply
25V amplifier
Quad Analog Loops
Amplifier cage
48 LED Adder (for UL tests)
48 Switch Adder (for ULC tests)
117
Part Number
Node 1: MAIN PANEL
BBX-FXMNS-6000
MD-871A
TNC-5000 (MD-891)
FNC-2000 (MD-881)
QMP-6101NV
QMP-5302NV
DSPL-420DS
QAZT-5302DS
SGM-1004A
ANC-6000
QCC-6000
QPS-6650
QAD-6425-25
ALCN-792M
QMB-6000
RAX-1048TZDS
IPS-4848DS
Appendix I: Configuration Example Setup
Qty
1
1
1
1
1
1
1
2
1
1
1
1
3
1
1
1
1
