4.13 Polarity Reversal and City Tie Module (Model PR-300)

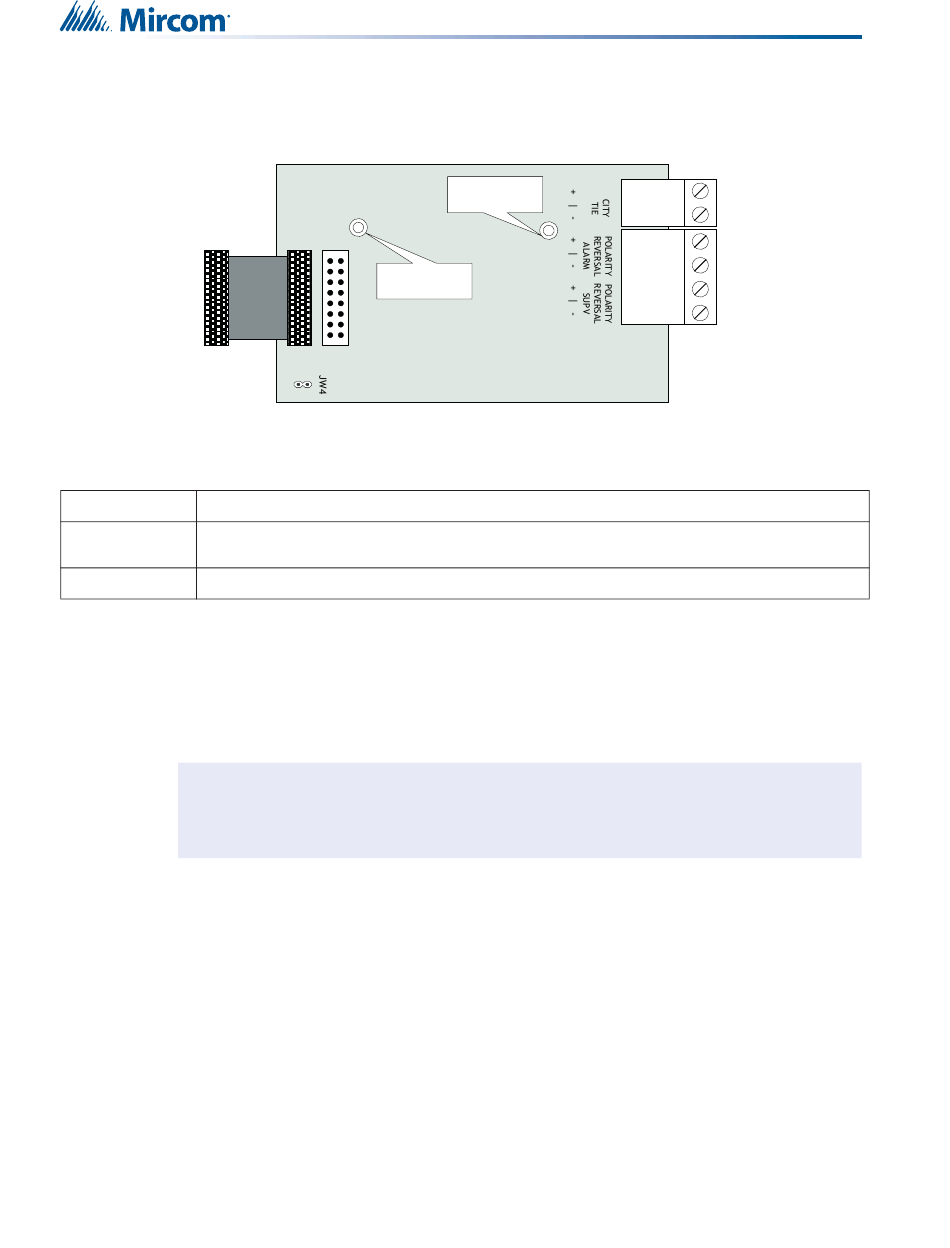

Figure 24 Polarity reversal and city tie module

The following hardware configuration must be performed before installing the PR-300.
Table 7:
Cable connects to P4 on the FX-2000N Main Fire Alarm Board
P1
Not used. If a UDACT-300A is used in conjunction with a PR-300, then the UDACT-300A
P2
ribbon cable P1 is connected to header P2 of the PR-300.
Jumper JW4 is always left intact.
JW4
The Alarm Transmit signal to the PR-300 can be programmed to turn OFF when signal silence is active
(Not allowed by UL 864, refer to Configuration section of this manual). This allows the City Tie Box to be
manually reset. On subsequent alarms the silenceable signals will resound and the City Tie Box will be
retriggered. Please refer to the Configurator for more information.
The Trouble Transmit signal to the PR-300 can be programmed to delay AC power fail. Please refer to
the Configurator for more information.
i
Note:
35
P1 P2
Mounting hole for
#6-32 screws
PR-300 jumper settings
Jumper JW4 on the FX-2000N main fire alarm board must be removed if a city tie
module is installed.
Mounting hole for
#6-32 screws
