Qbb-6001 Enclosure; Figure 9 Qbb-6001 Expansion Audio Cabinet Module Placement - Mircom FLeXNet FX-MNS-6000 Installation And Operation Manual

3.3

QBB-6001 Enclosure

The QBB-6001 expansion audio cabinet includes the QPS-6650 Power Supply, and up to two
QMB-6000 Card cages.
Up to eight Amplifier Modules QAD-6425-25/-70 may be installed into two QMB-6000 card
cages. The total maximum wattage per expansion audio cabinet is 575 Watts.
Figure 9
QMB-6000 Audio Card Cage
space for four amplifiers
QAD-6425-70/-25 and
one communication card
QCC-6000
QMB-6000 Audio Card Cage
space for four amplifiers
QAD-6425-70/-25
12V 55 AH Batteries
19

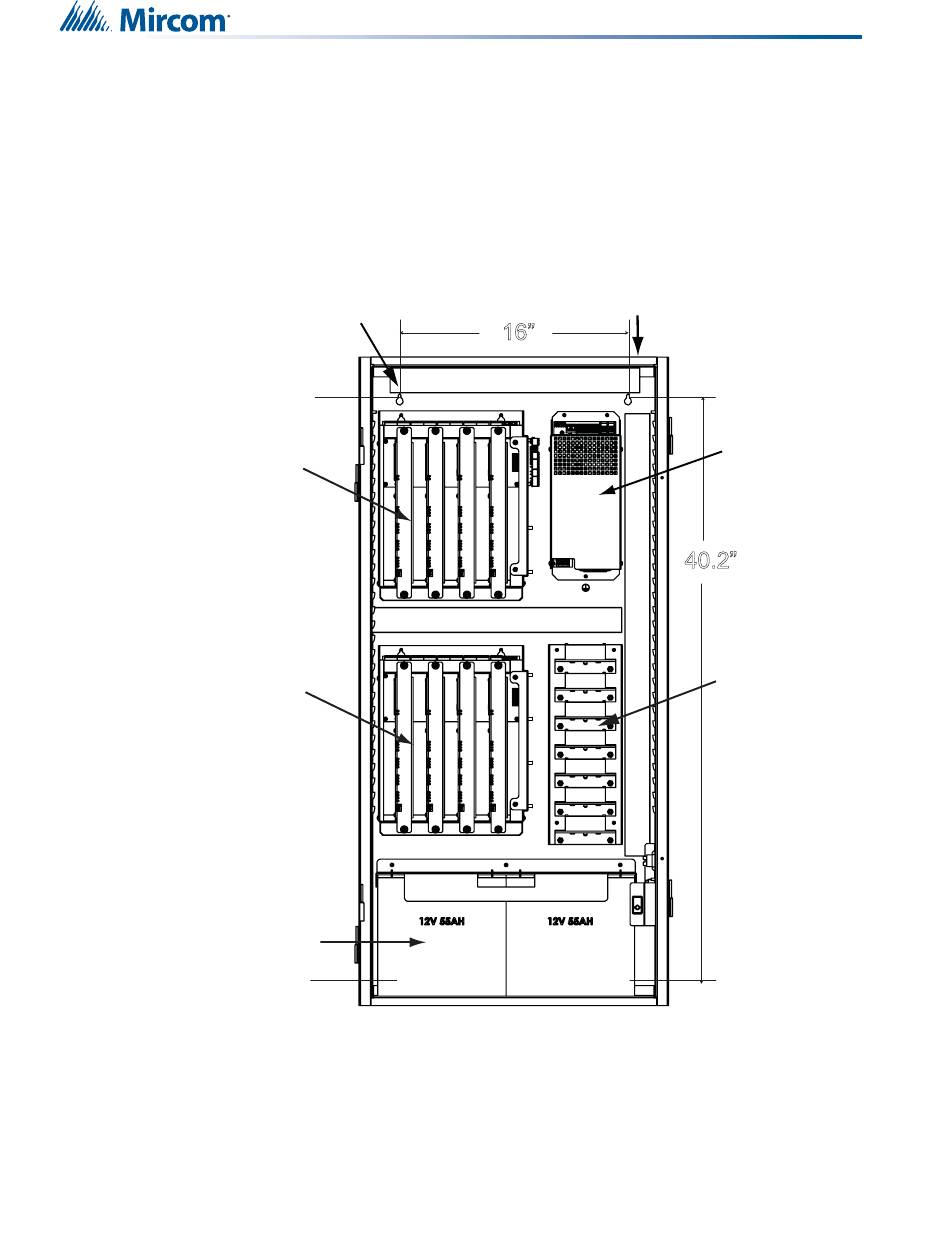

QBB-6001 Expansion Audio Cabinet Module Placement
Mounting Holes High Voltage Wiring through Knockout
16"
QPS-6650
Power Supply
Dimensions
40.2"
between
mounting holes
Brackets for
Addressable
Modules
Mounting Holes
