9.16.2 QAD-6425-25/-70 Amplifier Wiring (75W and 25W Circuits)
The QAD-6425-25/-70 amplifiers can be wired as one 75 Watt and one 25W supervised
speaker output. Each circuit may be wired as Class A or Class B. Must use terminal block 1.1
(or 2.1, 3.1, 4.1) for the 75W circuit wiring.

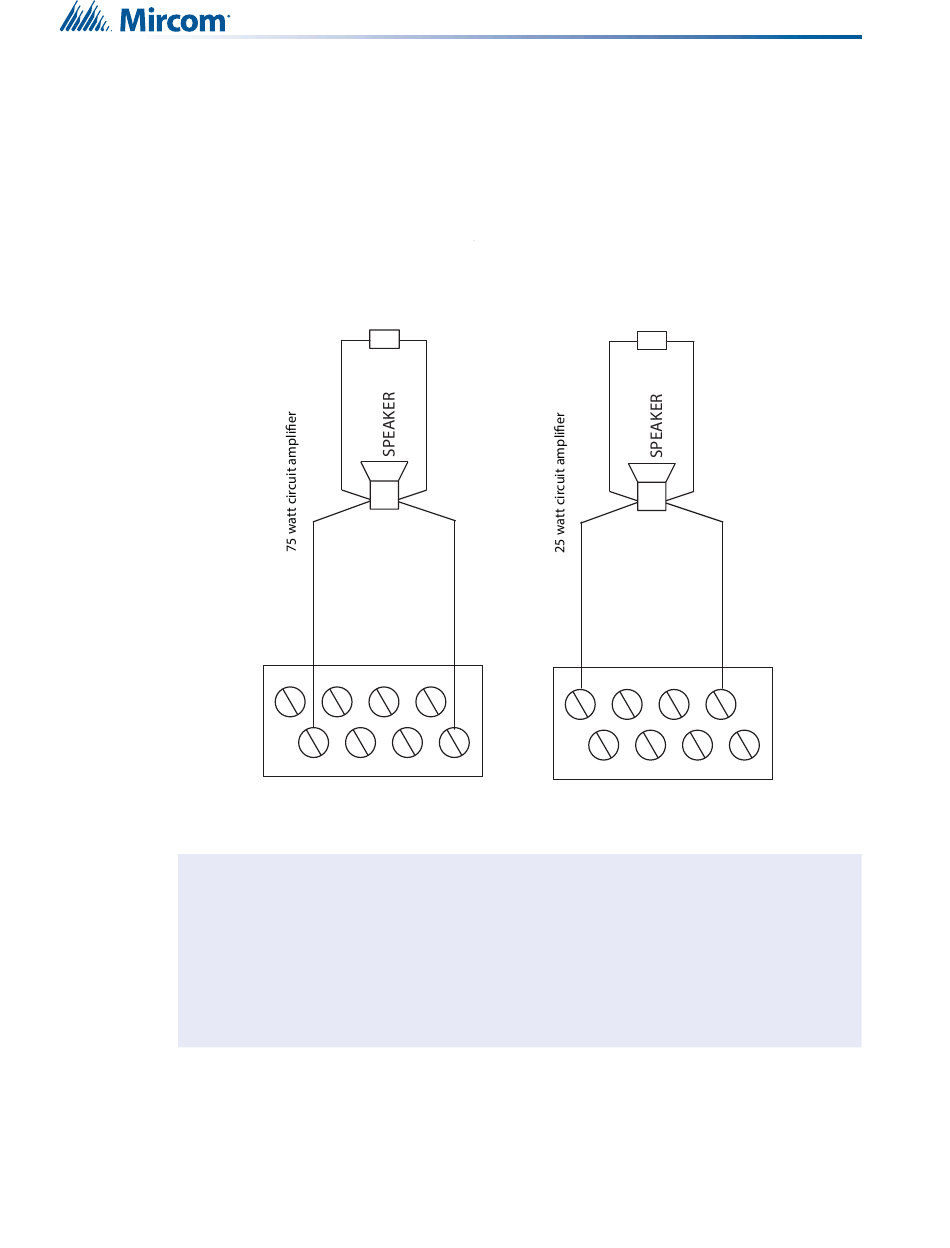

Figure 67 Wiring for 75W and 25W Amplifier Circuits

QAD-6425-70/-25
TERMINAL BLOCK
SLOT 1 OF QMB-6000
i
Notes:
• Use terminal block 1.1 for 75W circuit wiring
• For one 75W circuit and one 25W circuit place two jumpers (WC-1008) on the
connectors marked 1 and 2, 2 and 3, and leave jumper 3 OFF the 3 to 4 connector.
• All circuits are power limited and supervised.
• See speaker wiring chart for wire gauge selection.
• Refer to Table 15 for proper end of line resistor value.
87
CLASS B
WIRING
EXAMPLE
EOL
B-
A+ B+
A-
TNC-5000 Telephone Network Controller Module
CLASS B
WIRING
EXAMPLE
EOL
1.2
1.1
B-
A-
1.4
1.3
A+ B+
