Mircom FLeXNet FX-MNS-6000 Installation And Operation Manual page 123

19.0
Appendix E: Wiring For Addressable Supervised Output Module
ALCN - 792MISO
Quad Loop Adder
+
B
LOOP A -
A
+
-
+
LOOP B B
-
A
+
-
MIX-M500MB(A)
CSIS - 202A
Supervised Signal
BPS -1100
Booster
Power Supply
M500X(A)
Isolator
SC+
SC-
SC+
SC-
Detectors (Addr)
ION: 1-7, 11-25
Photo: 8-10
MIX-M500S (A)
(Addr . 121)
24V IN +
SC+
24V IN -
SC-
24V OUT+
SC+
24V OUT-
OUT +
SC-
EOL
OUT -
Supv . output module (SO )
ZONE 1
Next Devices:
(Addr . 101-120, 122-125)
MIX-M500MB(A)

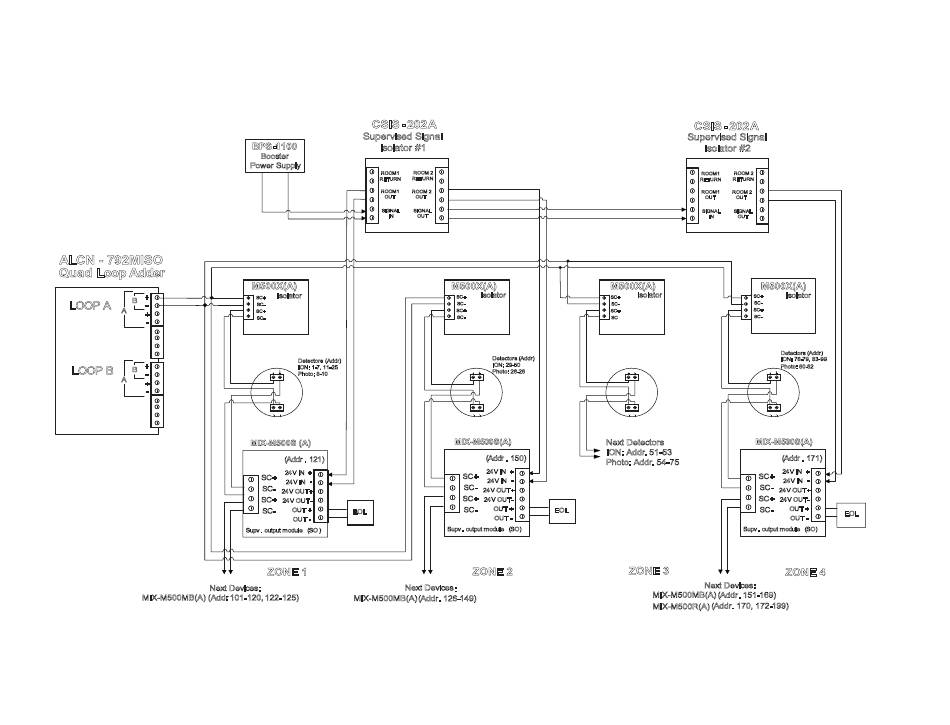

WIRING FOR ADDRESSABLE SUPERVISED OUTPUT MODULE TO COMPLY WITH UL 864 REV. 9
Isolator #1
ROOM1 ROOM 2
RETURN
RETURN
ROOM1 ROOM 2
OUT OUT
SIGNAL SIGNAL
IN OUT
M500X(A)
Isolator
SC+
SC-
SC+
SC-
Detectors (Addr)
ION: 29-50
Photo: 26-28
MIX-M500S(A)
(Addr . 150)
24V IN +
SC+
24V IN -
SC-
24V OUT+
SC+
24V OUT-
OUT +
SC- EOL
OUT -
Supv . output module (SO)
ZONE 2
Next Devices :
(Addr. 126-149)
CSIS - 202A
Supervised Signal
Isolator #2
ROOM1 ROOM 2
RETURN RETURN
ROOM1 ROOM 2
OUT OUT
SIGNAL SIGNAL
IN OUT
M500X(A) M500X(A)
Isolator
SC+
SC+
SC-
SC-
SC+
SC+
SC-
SC
Detectors (Addr)
ION: 76-79, 83-99
Photo: 80-82
MIX-M500S(A)
Next Detectors
ION: Addr. 51-53
(Addr . 171)
Photo: Addr. 54-75
24V IN +
SC+
24V IN -
SC-
24V OUT+
SC+
24V OUT-
SC-
Supv . output module (SO)
ZONE 3
Next Devices:
MIX-M500MB(A) (Addr. 151-169)
MIX-M500R(A) (Addr. 170, 172-199)
Isolator
OUT +
EOL
OUT -
ZONE 4
