5.5

Analog NAC Wiring

5.5.1 Signal Module (SGM-1004A) Terminal Connections
Wire devices to terminals as shown in Figure 39 below. See Appendix A for signal module
specifications, and LT-1023 for compatible devices.

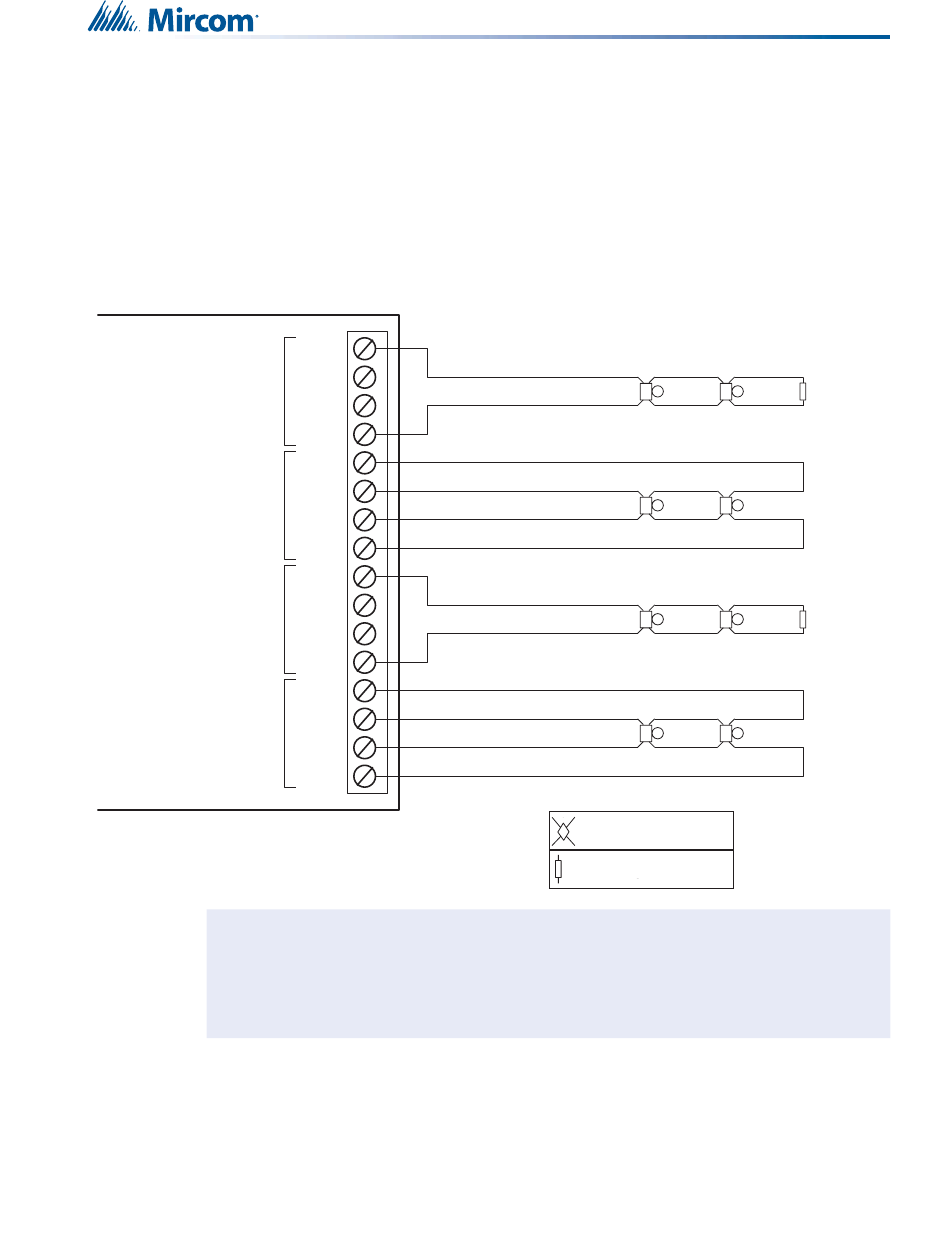

Figure 39 Hardwire Signal Module Terminal Connections

SGM-1004A NAC BOARD
IND 1+ (Y/Z)
NAC 1
IND 1+ (Z)
(POWER LIMITED)
IND 1- (Z)
IND 1- (Y/Z)
IND 2+ (Y/Z)
NAC 2
IND 2+ (Z)
(POWER LIMITED)
IND 2- (Z)
IND 2- (Y/Z)
IND 3+ (Y/Z)
NAC 3
IND 3+ (Z)
(POWER LIMITED)
IND 3- (Z)
IND 3- (Y/Z)
IND 4+ (Y/Z)
NAC 4
IND 4+ (Z)
(POWER
IND 4- (Z)
LIMITED)
IND 4- (Y/Z)
i
The terminal blocks are "depluggable" for ease of wiring.
Note:
All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
SGM-1004A NACs are fully supervised and rated for 24 VDC regulated, 1.5A
max. They must be wired as shown in Wiring Tables and Information on page 58.
SUPERVISED NAC #1
SUPERVISED NAC #2
SUPERVISED NAC #3
SUPERVISED NAC #4
Legend:
SMOKE DETECTOR
3.9K 1/2W ELR LISTED S5434
MODEL MP-300
MANUFACTURED BY MIRCOM
CLASS B
WIRING
CLASS A
WIRING
CLASS B
WIRING
CLASS A
WIRING
52
