7.1

Paging Modules

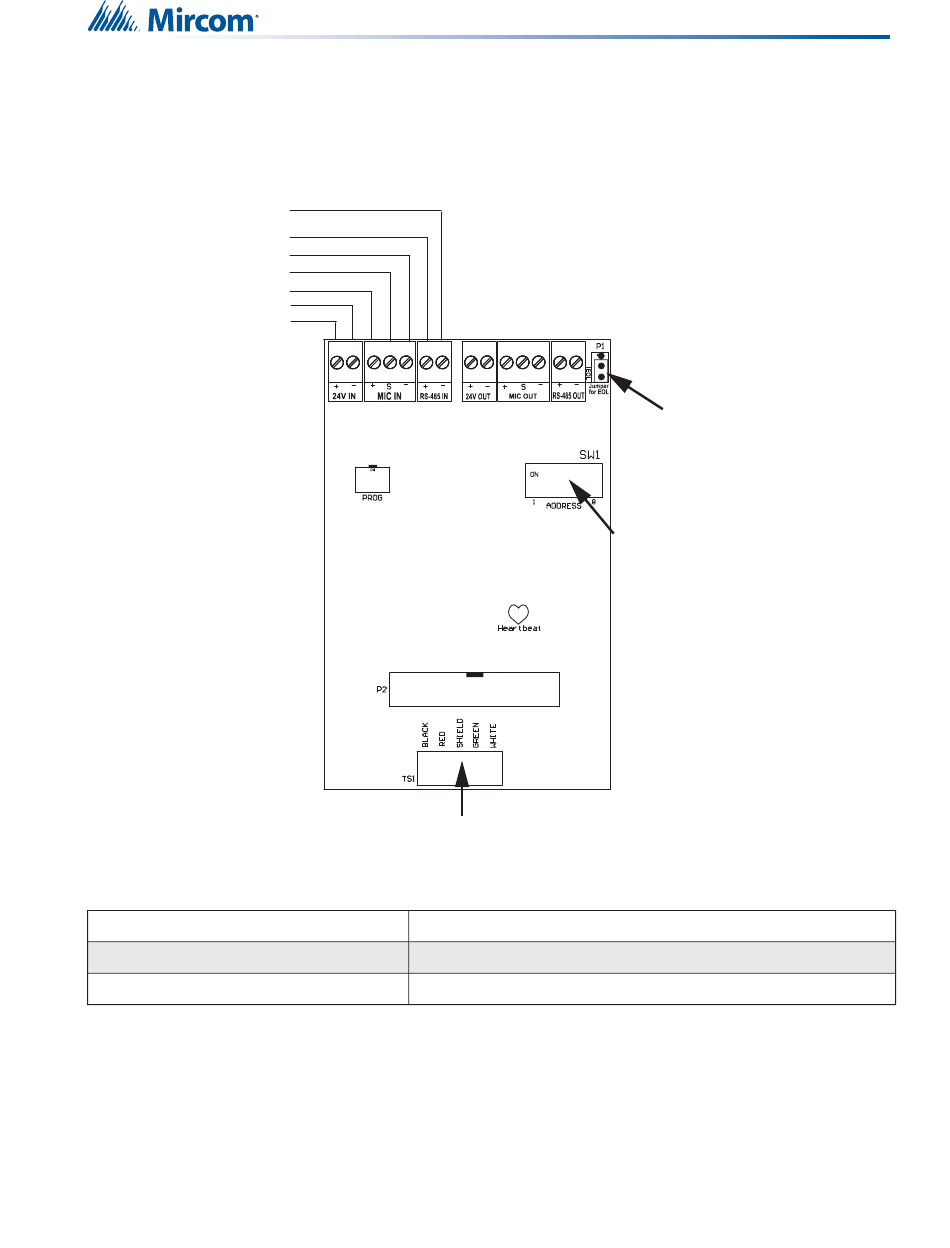

Figure 55 QMP-6101NV Network Master Paging Control Module Connections and

From
ANC-6000
The interface wiring between the ANC-6000 and QMP-6101NV is as follows:
24V +, -
MIC+, MIC-, SHLD:
RS-485
The maximum wiring run from the ANC-6000 and QMP-6101NV is 20 feet or 6 metres.
Terminal Blocks
Microphone connection
18-22 AWG Twisted Pair
18-22 AWG Twisted Shielded Pair
18-22 AWG Twisted Pair
QMP-6101NV Vertical Paging Control Module
Not used
Leave jumper on these
two pins.
DIP Switch SW1 is to set
and remains at addresss 1.
70
