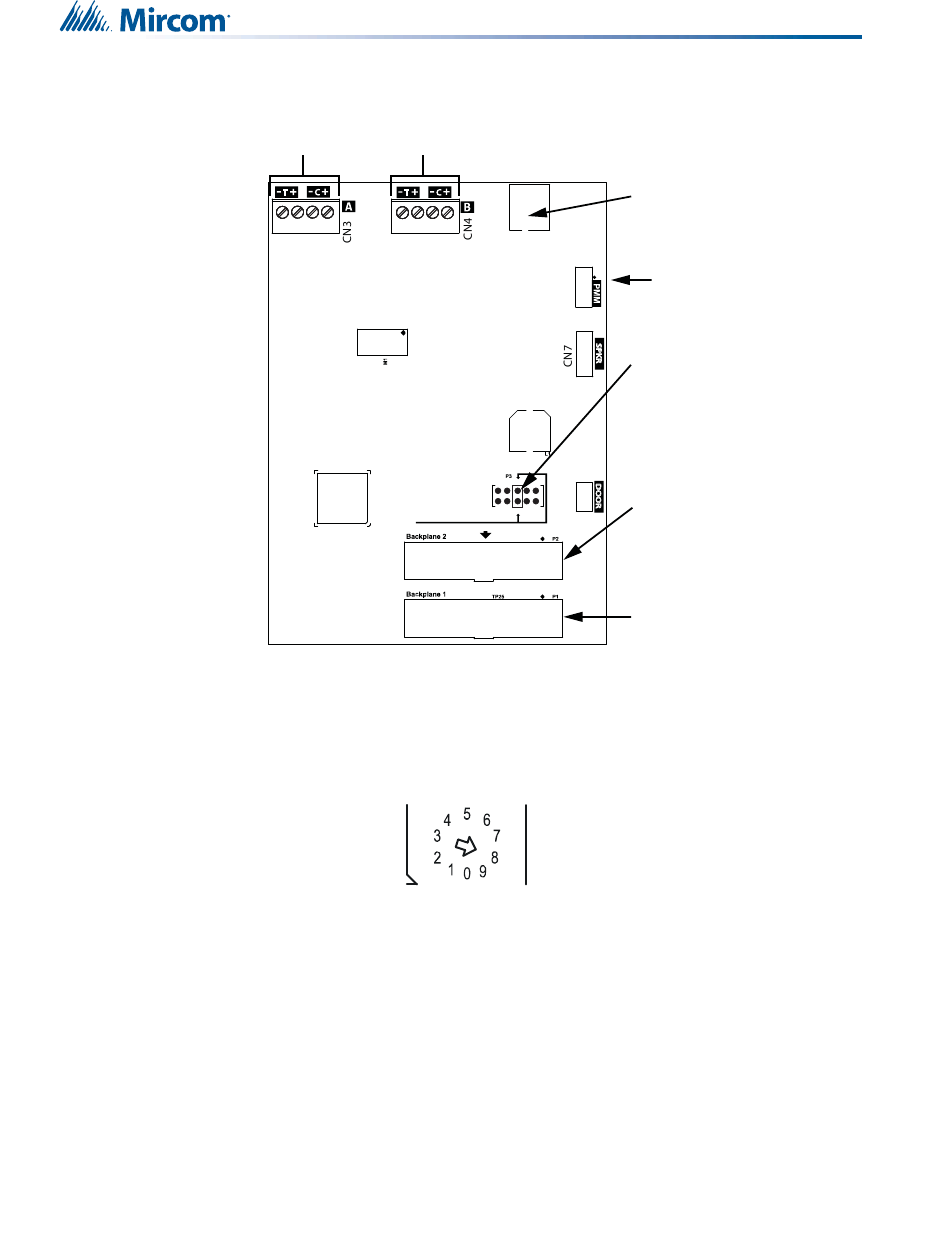

Figure 46 QCC-6000 Communications Card

Rotary Switch SW1 is set starting from 0 to 9 for each expansion cabinet. Maximum 10 per
node.

Figure 47 QCC-6000 Rotary Switch

63
To CN3 on next From CN4 on previous
QCC-6000 QCC-6000
C
T T
IN
OUT
AUDIO COMMUNICATION AUDIO COMMUNICATION
Jump to enable Audio Controller connection
C
SW1
CN1
CN8
Field Wiring of Audio
Set the communication
card's address with SW1
rotary switch.
To CN8 on
QPS-6650
Short the center jumper
pins (jumpers 5 and 6)
on the card that is
connected directly to
the ANC-6000.
In main cabinet, this
connects to CN1 on
ANC-6000.
In expansion cabinet,
this connects to CN14
on second QMB-6000.
In main cabinet, this
connects to CN14 on
QMB-6000.
In expansion cabinet,
this connects to CN14
on first QMB-6000.
