IPS-4848DS Programmable Input Switches Module

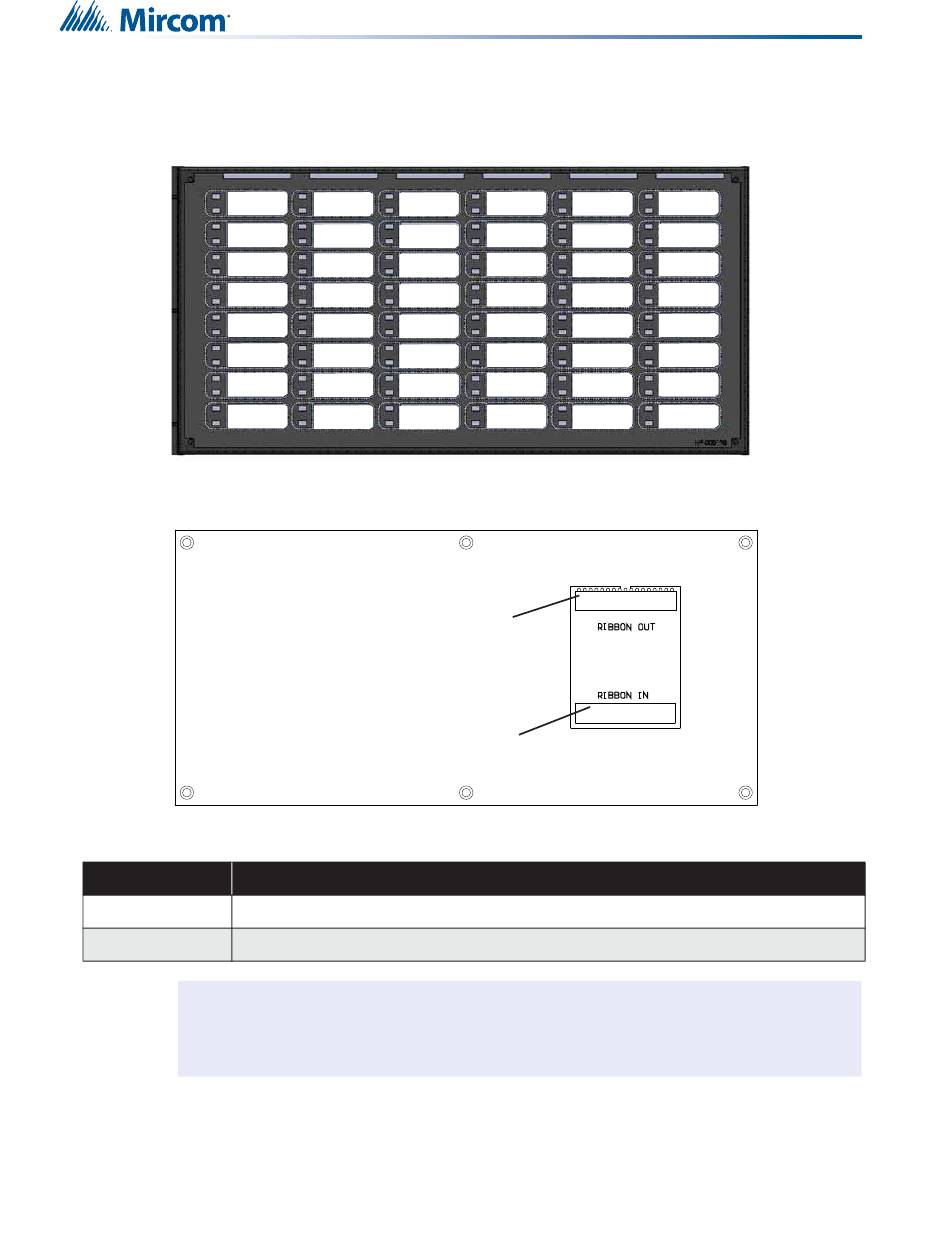

Figure 16 IPS-4848DS Programmable Input Switches Module

Table 5:
Connector
P1
P4
i
Note:
27
Ribbon Cable connects
here on IPS-4848DS and
connects to the next
display module Ribbon IN
Ribbon Cable is permanently
attached here and connects to
previous Ribbon OUT connector
IPS-4848DS Programmable Input Switches Module Cable Function
Function
P1 Cable connects to P2(or P4) of previous display module.
P4 Cable connects to P1 of next display module
The IPS-4848DS module comes with laser printer-compatible slide-in paper
labels for zone labelling.
