4.11.2 Isolator Mode
Jumpers for the Isolator Mode
JW2: Place jumper over pins 2 and 3 for the ability to connect an isolator on Zone 1.
JW3: Place jumper over pins 2 and 3 for the ability to connect an isolator on Zone 2.
JW4: Place jumper over pins 2 and 3 for the ability to connect an isolator on Zone 3.
JW5: Place jumper over pins 2 and 3 for the ability to connect an isolator on Zone 4.
!
Attention: Discard jumpers on zones that are not configured for isolators.
J11: Wire these terminals to an alarm relay. These may be tapped if more signal modules are
used in this manner.

4.12 RM-1008A Hardwire Relay Adder Module

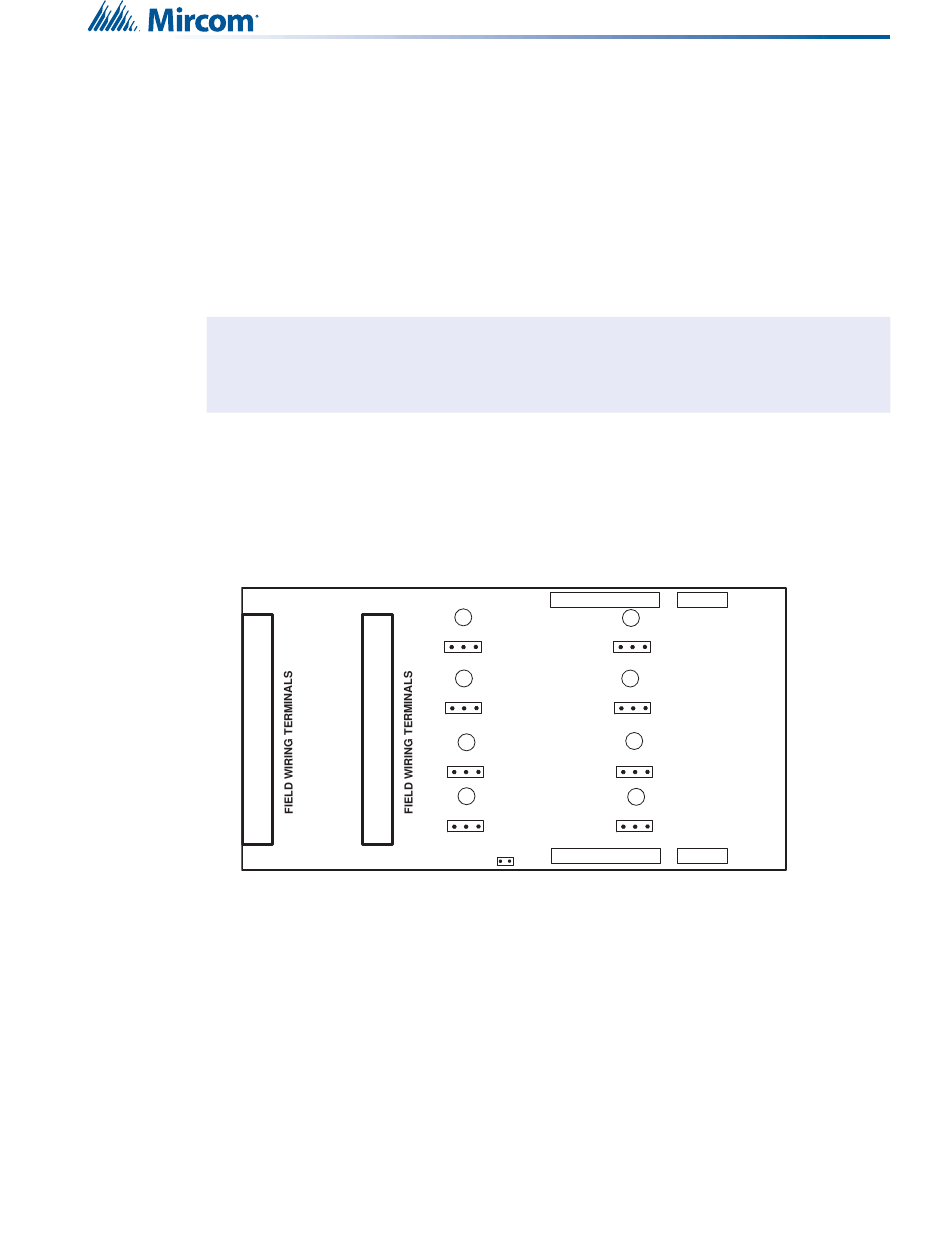

Figure 23 Hardwire Relay Adder Module (RM-1008A)

P2: Data cable to P6 or P5 of main fire alarm module, or to previous adder module.
P1: Data connector for next adder module.
P4: Power connector to P8 of main fire alarm module, or to previous adder module.
P3: Power connector for next adder module.
JW1: Remove continuity jumper if there are any more adder modules installed. If this is the last module
installed, leave JW1 on.
JP1-JP8: Move jumpers from pins 1 and 2 to 2 and 3 to connect relay commons between two or more
relays.
P2
I4
3 2 1 3 2 1
JP4
I3
3 2 1 3 2 1
JP3
I2
3 2 1 3 2 1
JP2
I1
3 2 1 3 2 1
JP1
JW1
P1
P4
I8
JP8
I7
JP7
I6
JP6
I5
JP5
P3
