ANC-6000 Wiring

The auxiliary audio input has a maximum input of 1 VRMS. The transformer is isolated on the
ANC-6000.
Connect an audio source, for example background music or paging, to the SIG terminal.
Connect a normally open relay and 3.9 k resistor to the CTL terminal as shown in Figure 53.
Short the relay to activate the auxiliary audio.
See 7.2 for instructions on wiring the ANC-6000 to the QMP-6101NV.

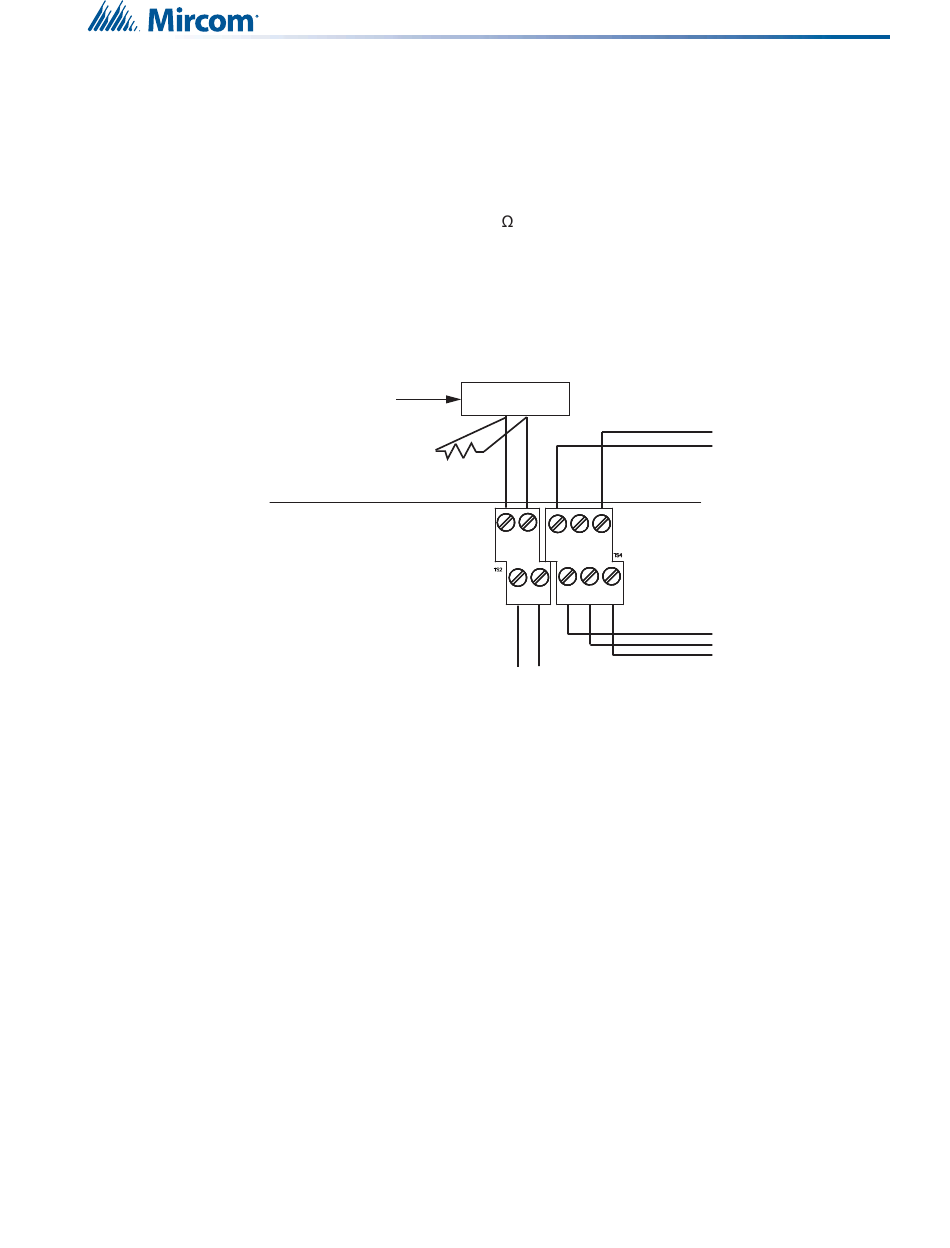

Figure 53 ANC-6000 Wiring Diagram

Short this relay to activate
the audio source
N.O. RELAY
3.9 kΩ
CTL
+ -
AUX AUDIO
SIG
+ -
AUDIO SOURCE
To RS-485 IN on
QMP-6101NV
RS-485
+ -
REMOTE MIC
SIG
+ -
S
To MIC IN on
QMP-6101NV
